Amaran Ray 60c (EU)

Article number:

12564166

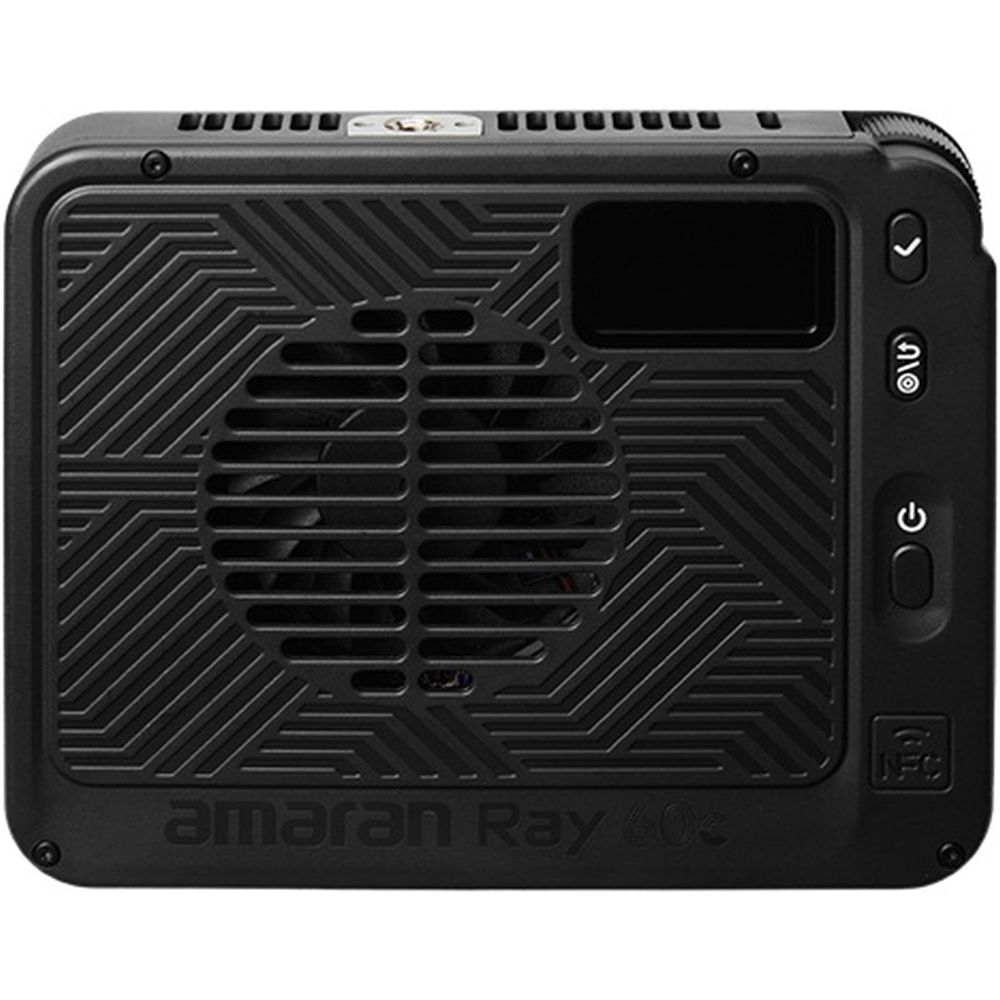

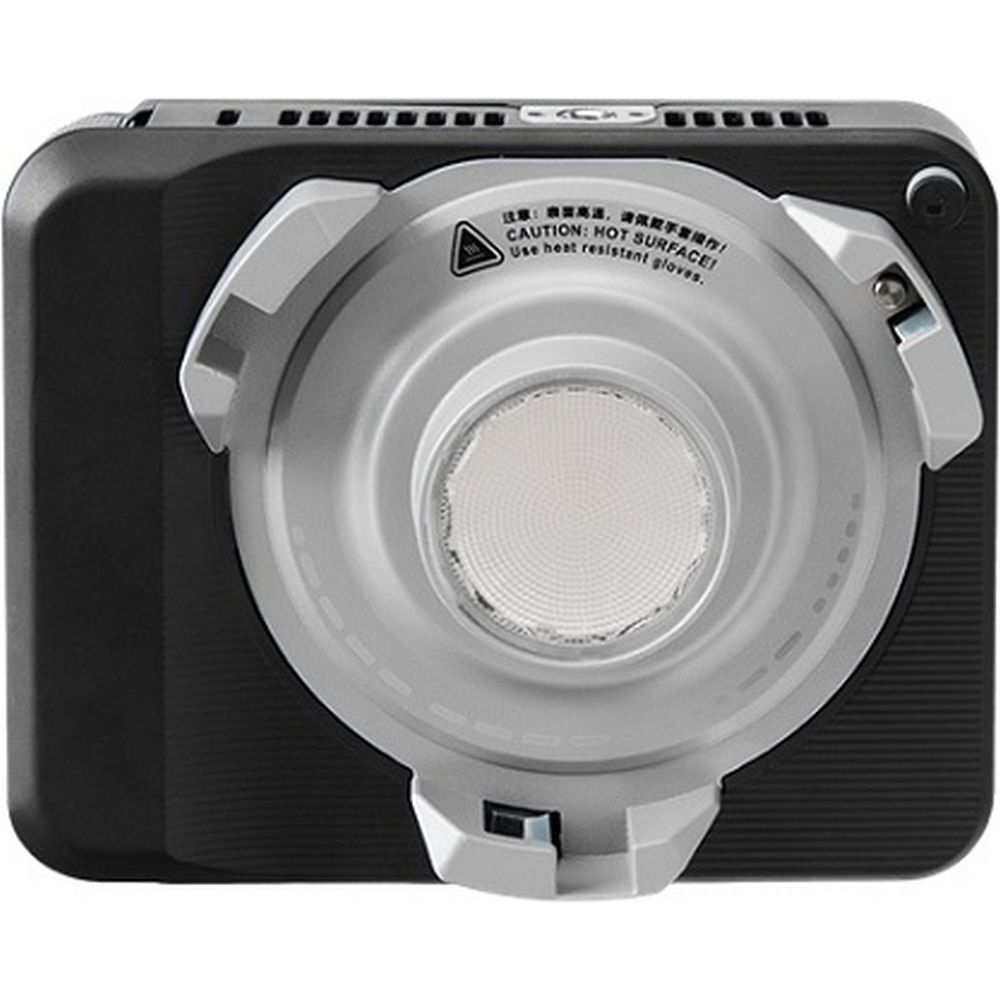

Amaran Ray 60c (EU)

Weighing just 528 grams and measuring 4.4 cm thin, the Amaran Ray 60c (EU) delivers full-colour performance in an ultra-thin, ultra-compact form. Travel light, set up quickly and achieve precise results wherever you are — from on-location shoots to small home studios.

Enjoy complete freedom of movement at any location with the all-new, compact Amaran Peak 75 battery, which lasts 46 minutes at 100% power for a fully wireless setup. On top of that, USB-C PD support means you can work with a wide range of USB-C PD power banks and chargers.

Despite its size, the Amaran Ray 60c delivers unrivalled brightness with consistent results — 50% more power in a housing that's roughly half the size of the Amaran COB 60x S — up to 3,910 lux at 1 m (without lens).

Thanks to the OmniColor light engine, the Amaran Ray 60c reproduces light that looks true to life — both on camera and to the naked eye. What you see is what you capture — brighter whites, more natural skin tones and more accurate colours that remain consistent on camera.

With an IP54 rating for dust and splash resistance, the Amaran Ray 60c is ready for real-world shoots, letting you shoot with confidence in wind, light rain, sand or humidity.

Information on the EU General Product Safety Regulation (GPSR)

Amgreat Europe B.V.

De Strubbenweg 15, 1327 GB Almere, The Netherlands

Features of the Amaran Ray 60c (EU)

  • Colour temperature (standard): 2300K - 10000K
  • CRI: 95+
  • SSI (tungsten): 87
  • TM-30 RG (average): 100
  • Colour temperature (extended): 1800K - 20000K
  • TLCI: 95+
  • SSI (D56): 80
  • TM-30 RF (average): 94
  • Maximum output power: 60W
  • Maximum power consumption: 75W (USB-C)
  • Colour chipset: OmniColor
  • Beam angle: 70º
  • Power supply methods: USB-C PD 3.0, DC, amaran Ace E-Lock
  • Operating voltage (power supply): AC 100V - 240V / 2.5A / 50 - 60Hz
  • Operating temperature: -10°C - 40°C
  • Control methods: Built-in, amaran app
  • Wireless range: ≤80m (Bluetooth)
  • Cooling method: Active cooling
  • Lumens: 4,021 lumens
  • Weather resistance: IP54
  • Operating voltage (fixture): DC 12V - 24V
  • Maximum noise level: 28 dBA (30ºC)
  • Storage temperature: -20ºC - 80ºC
  • Firmware upgrade available: Amaran app
  • Screen type: TFT
  • Maximum light output: 3,910 lux @ 1m (without accessories)
  • Fixture dimensions: 14.5 x 11.5 x 4.4 cm
  • Octa Dome 30 dimensions (collapsed): 34.76 x 18.0 x 6.5 cm
  • Octa Dome 30 dimensions (expanded): 20.0 x 30.0 x 30.0 cm
  • Adapter cable length: 0.5 m
  • Mains cable length: 4 m
  • Shoulder bag dimensions: 40.8 x 26.4 x 11.0 cm
  • Ace Lock Grip dimensions: 23.0 x 11.0 x 10.8 cm
  • Fixture weight: 528.5 grams
  • Octa Dome 30 weight: 240 grams
  • Ace Lock Grip weight: 420 grams
  • Shoulder bag weight: 480 grams

In the Box

  • 1x Amaran Ray 60c studio light

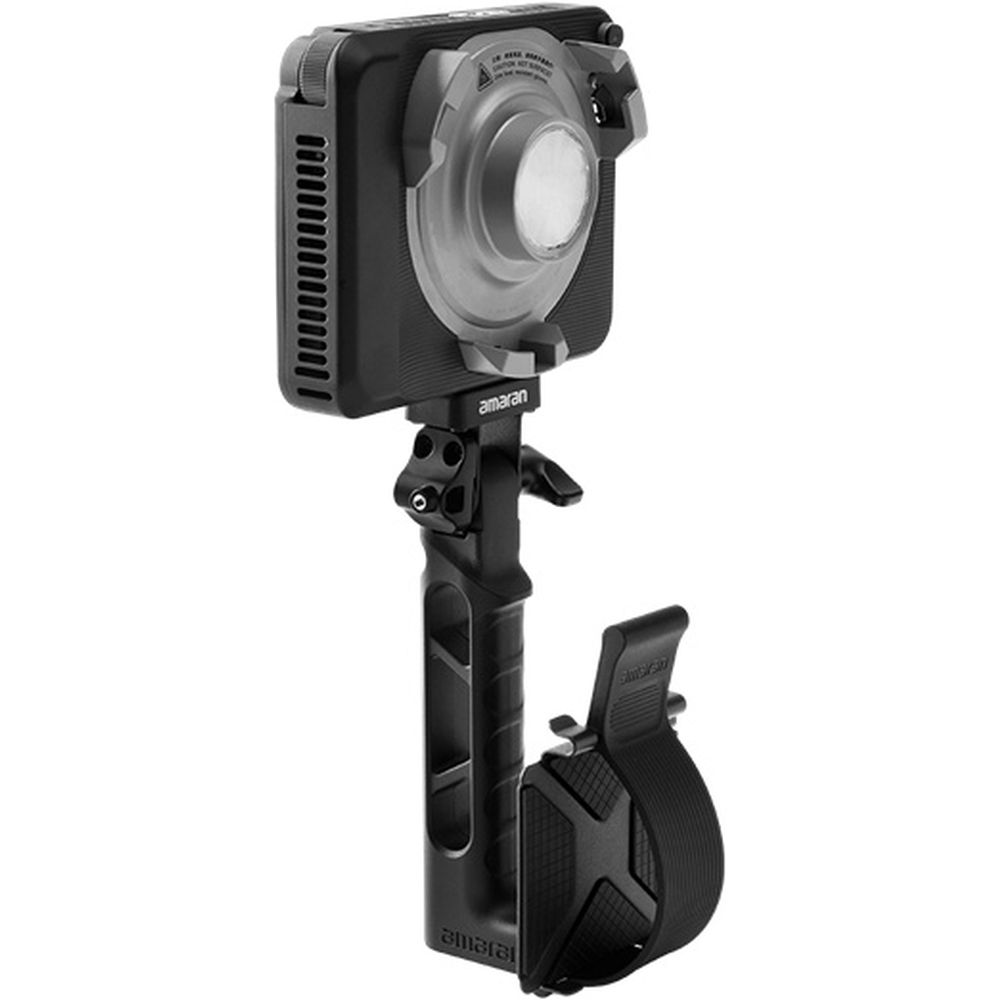

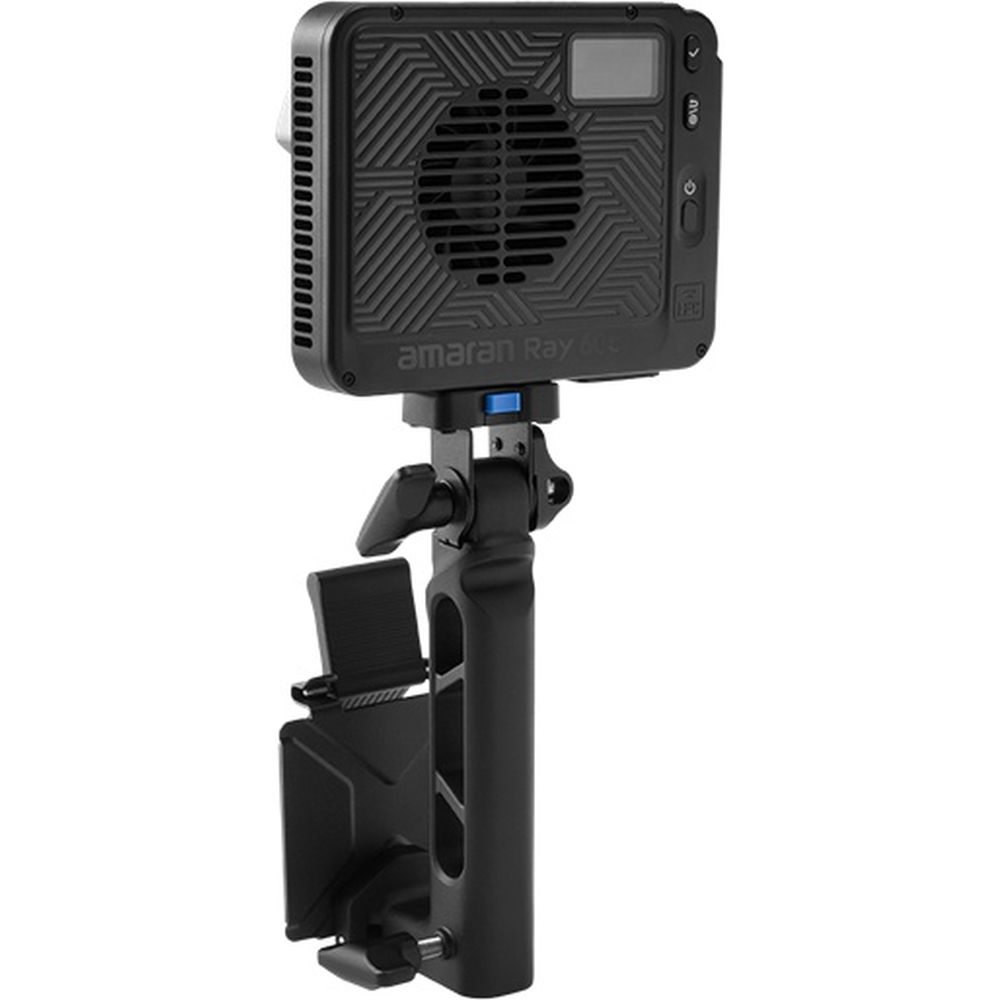

  • 1x Amaran Ace Lock to Baby Pin adapter grip
  • 1x Amaran Octa Dome 30
  • 1x Amaran Octa Dome 30 diffuser
  • 1x Amaran Octa Dome 30 light control grid
  • 1x Amaran AC to DC 90W power adapter (0.5 m)
  • 1x Amaran AC power cable (4 m)
  • 1x Amaran Ray shoulder bag
Connections & Connectivity
App control
Wireless control App
Dimensions & Weight
Weight (g) 528.0 g
General
Display
Compatibility
Compatible with brand/series amaran Ace E-Lock
DMX compatible
Light & Flash
Barndoors included
CRI/TLCI (Ra) 95.0 Ra
Dimmable
Colour temperature 1800-20000
Cooling Active
Lux @1m (lux) 3910.0 lux
Mount/fixture Bowens
RGB
Runtime @100% (h) 0.77 h
Variable colour temperature (bi-color)
Built-in light effects (FX)
Power
Power (W) 60.0 W
Mains
Battery
