Manfrotto 502 Head Arca Swiss & 055 Carbon 4 Sec Video

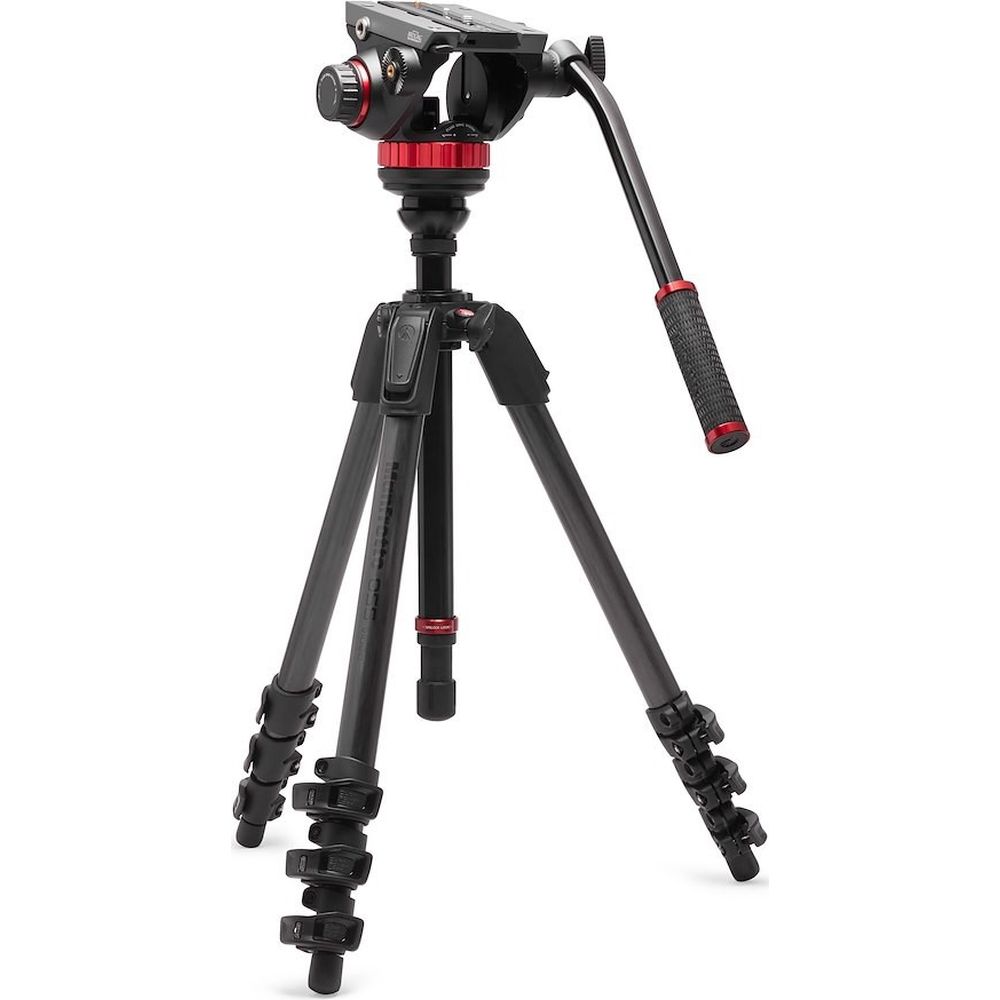

The Manfrotto 502 Head Arca Swiss & 055 Carbon 4 Sec Video is a comprehensive video system that includes the MVH502AH liquid video head and a special 055 Video carbon fibre tripod.

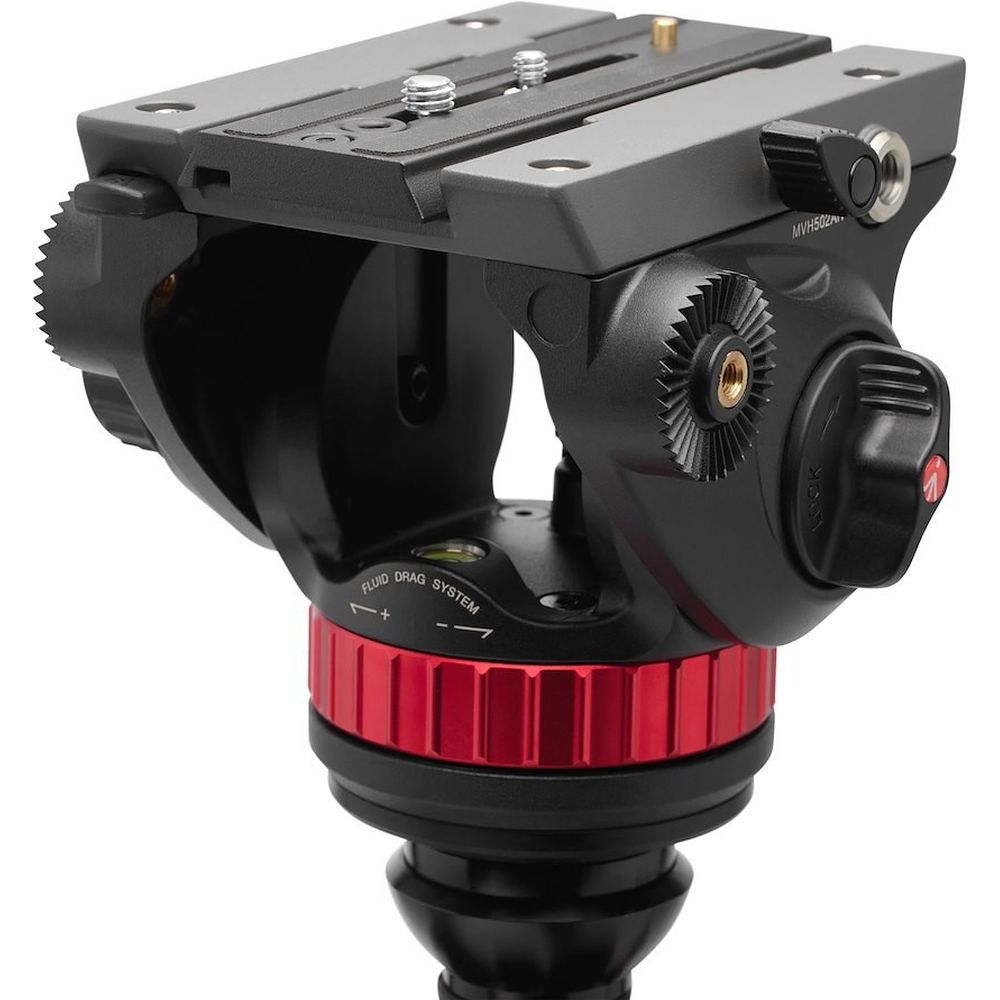

Enjoy more versatility with the flat base (Ø75mm) of the 502 liquid video head, ideal for use with other video accessories such as a slider. Benefit from a 4kg fixed counterweight system at 55mm C.O.G. (Centre of Gravity), while supporting up to 10kg of equipment. Experience smooth movements with the variable continuous Fluid Drag System at both pan and tilt, and easily mount external monitors or accessories with the 3/8" Easy Link mounting points.

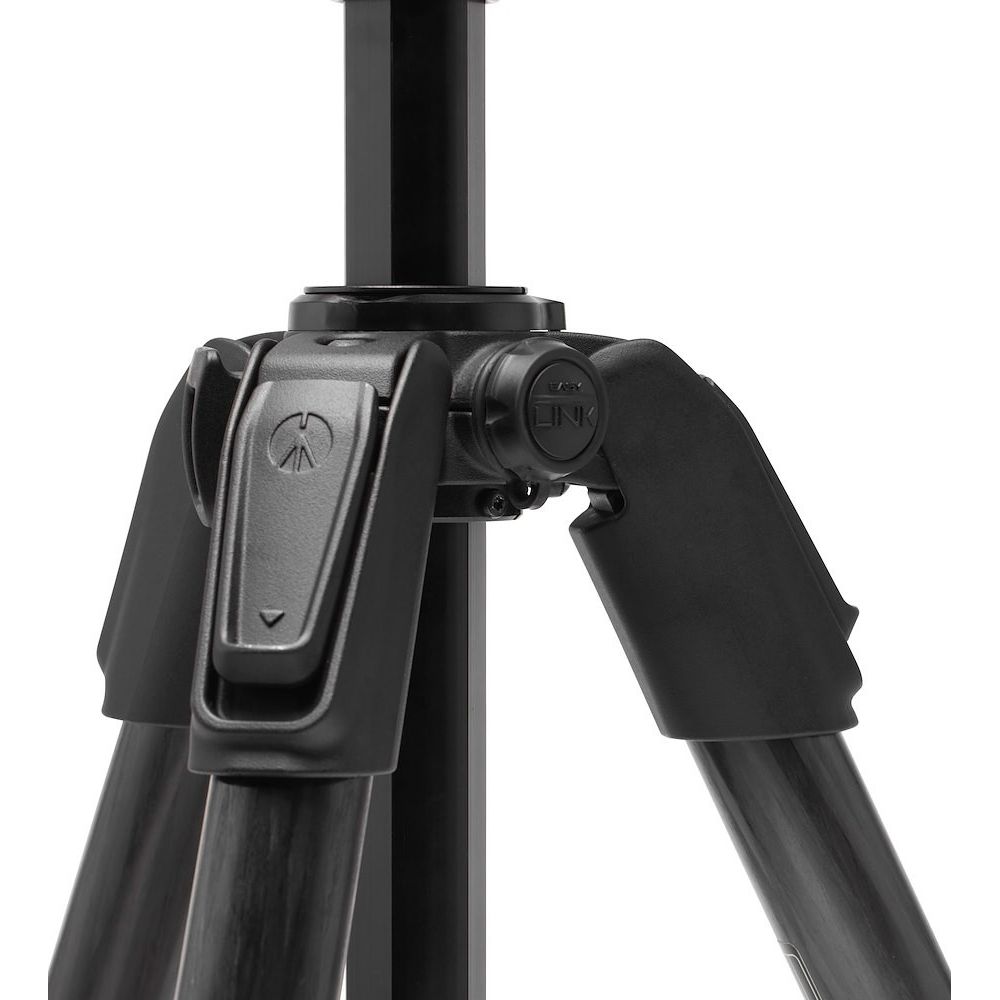

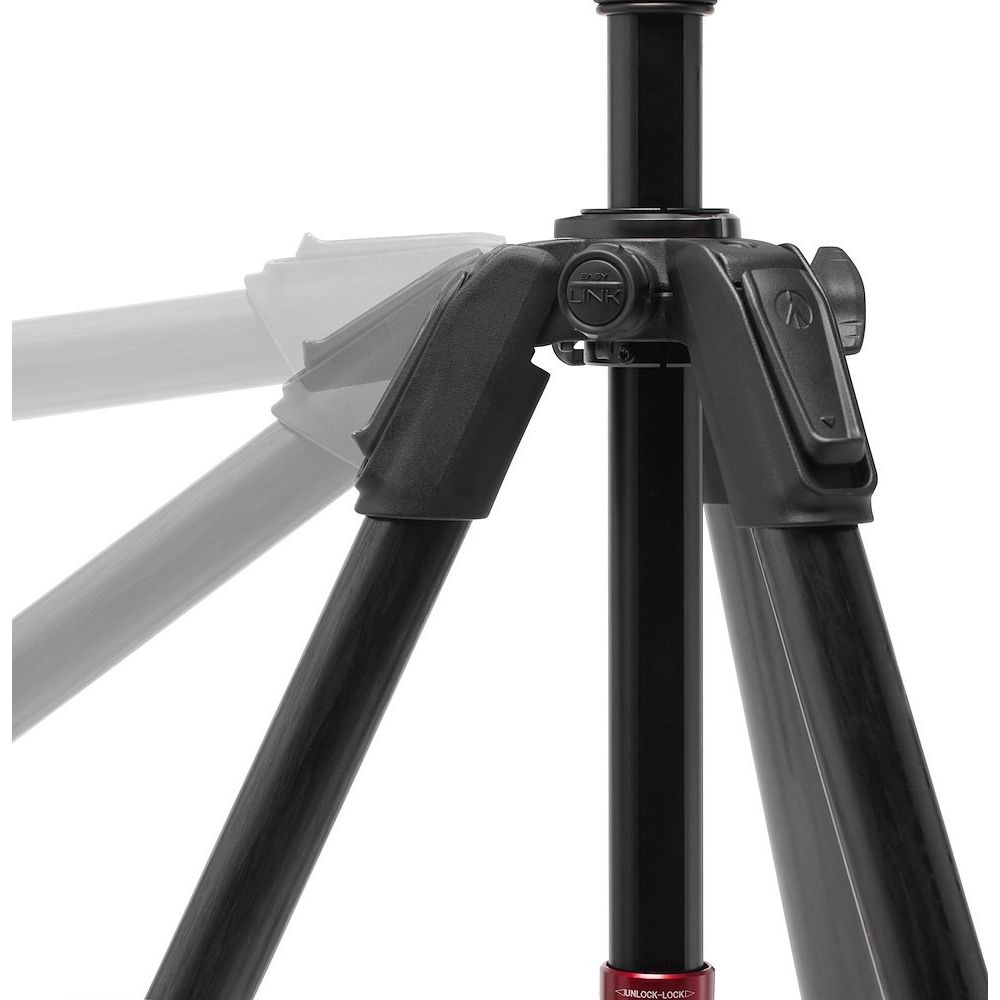

Enjoy the low weight and stability of the dedicated single-leg, 4-piece carbon fibre 055 video tripod with levelling column, designed to minimise weight while maintaining the highest stability and rigidity. Experience quick and easy installation thanks to Quick Power Lock (QPL) levers specially designed for comfortable operation with ééone hand, allowing you to open all leg sections in ééone movement. In addition, ensure maximum rigidity and stability for your Tripod with the powerful locks on each leg section. Secure each leg independently with intuïtive and ergonomic leg angle selectors. Enhance your setup with an Easy Link connector equipped with anti-rotation for Accessories.
The system can carry up to 10 kg.
Features of the Manfrotto 502 Head Arca Swiss & 055 Carbon 4 Sec Video
.
.- Smooth PAN and TILT movements with variable Fluid Drag system

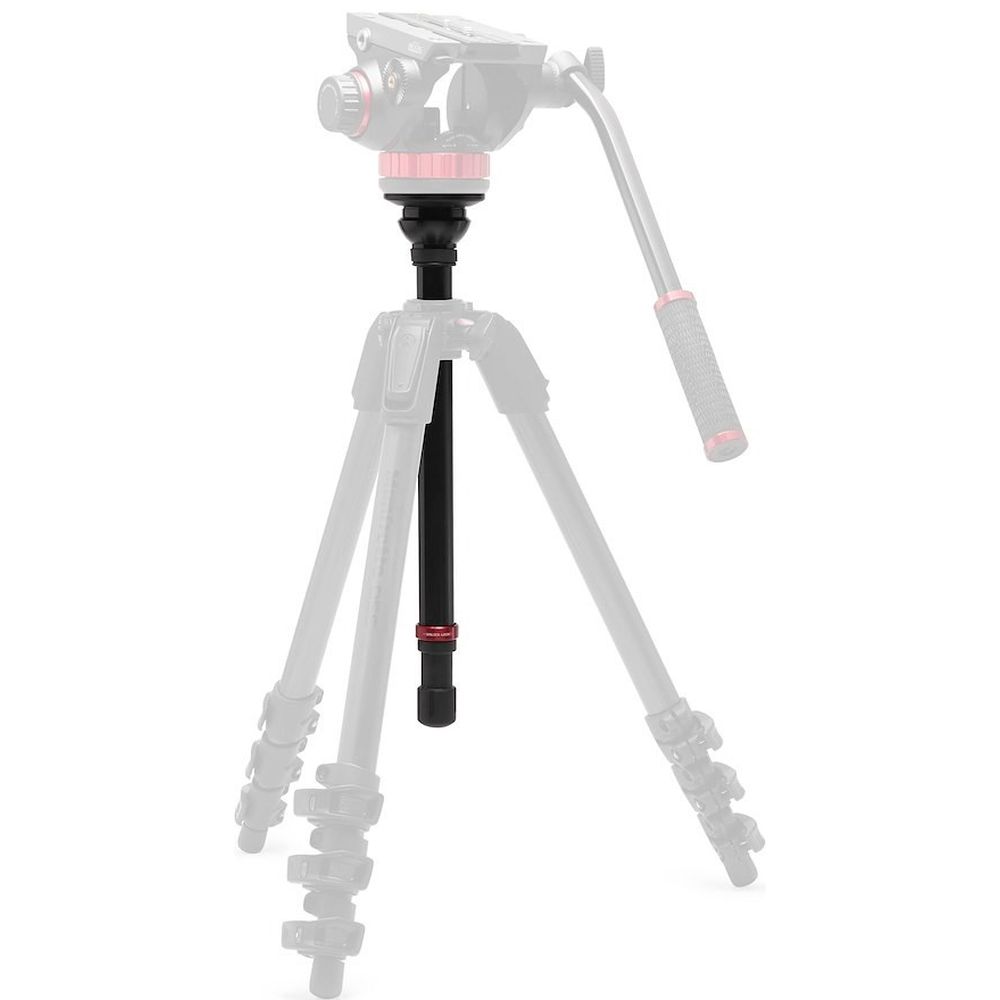

- Stable and adjustable setup with 4-piece carbon fibre tripod and levelling column
- Easy and solid setups with Quick Power Lock system
- Improved flexibility with Easy Link attachments for accessories
- Highest safety standards guaranteed
- Control weight system: fixed
- Control weight: 4 kg
- Base diameter: 78 mm
- Spirit Levels: 1
- Top mounting: 1/4" screw, 3/8" screw
- Load capacity: 10 kg
- Easy Link: yes
- Front tilt: -80° / +90°
- Head type: Video/liquid head
- Foot type: Ankle
- Poot angles: 25°, 46°, 66°, 88°
- Foot lock type: Flip Lock
- Foot sections: 4
- Feet tube diameter: 29.2, 24.8, 20.4, 16 mm
- Material: aluminium, carbon fibre, plastic
- Maximum working temperature: 60 °C
- Minimum working temperature: -20 °C
- Pan beam included: yes
- Pan drag: continuously adjustable from 0 to maximum level
- Panoramic rotation: 360°
- Plate type: 504PLONG
- Quick release: yes
- Tilt resistance: continuously adjustable from 0 to maximum level
- Top disc diameter: 78 mm
- Maximum height: 179 cm
- Maximum height (with centre column down): 157 cm
- Minimum height: 54 cm
- Length: 70 cm
- Colour: matt black
- Weight: 4.2 kg
Contents of the package
- Manfrotto 502 liquid video head
- Manfrotto 055 Video carbon fibre tripod
