SEETEC ATEM 215S 21.5 inch Multi camera Broadcast Monitor

SEETEC ATEM 215S 21.5 inch Multi Camera Broadcast Monitor

The IPS panel offers a resolution of 1920x1080, a brightness of 250 cd/m², a contrast ratio of 1000:1 and a viewing angle of 178°. Thanks to the Rec.709 colour standard and factory calibration, the monitor reproduces colours accurately and consistently.

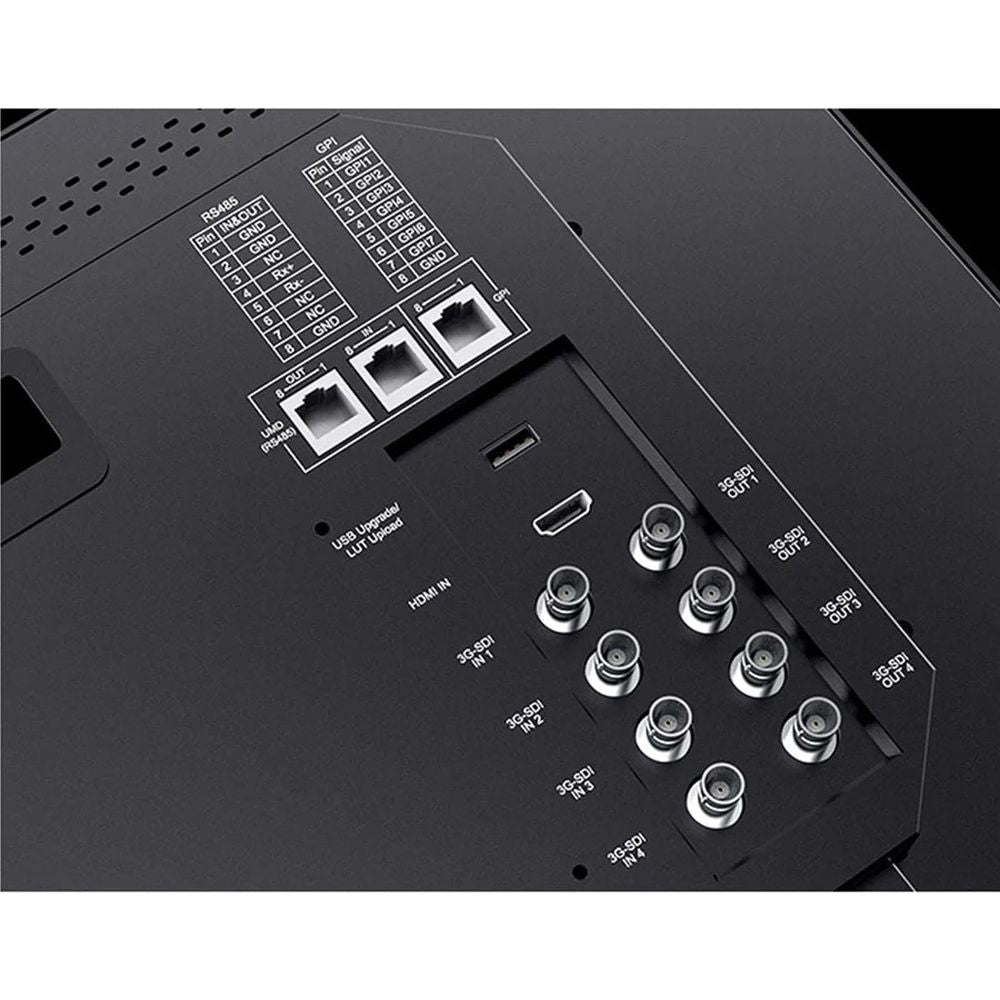

The ATEM215S features 4x 3G-SDI inputs and 4x 3G-SDI outputs (with loop-out and 2K support), 1x HDMI input (up to 1080p), RS485, GPI and USB. This makes the monitor ideal for multi-camera shoots where multiple people need to monitor the feed simultaneously.

A range of tools including waveform, vectorscope, histogram, RGB histogram, peaking focus assist, false colour, zebra and timecode assists with precise exposure and focus. Via 3D-LUT (4 built-in de-log LUTs and up to 36 custom .cube files via USB), you can quickly adjust colour rendering.

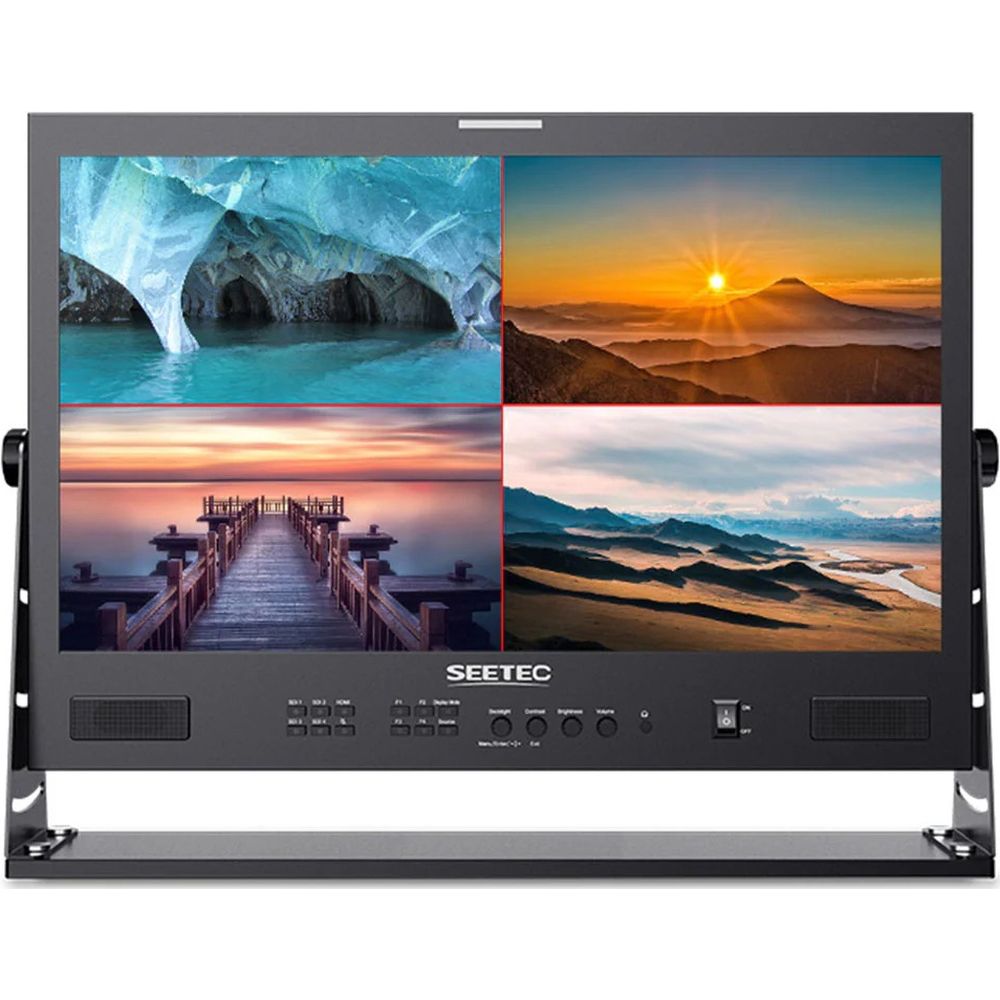

The screen supports full screen, picture-in-picture and quad view. In quad view, the monitor simultaneously displays 4 SDI channels with audio meters and timecode. GPI controls the red and green tally, and UMD/IMD supports the TSL 3.1/4.0 protocol.

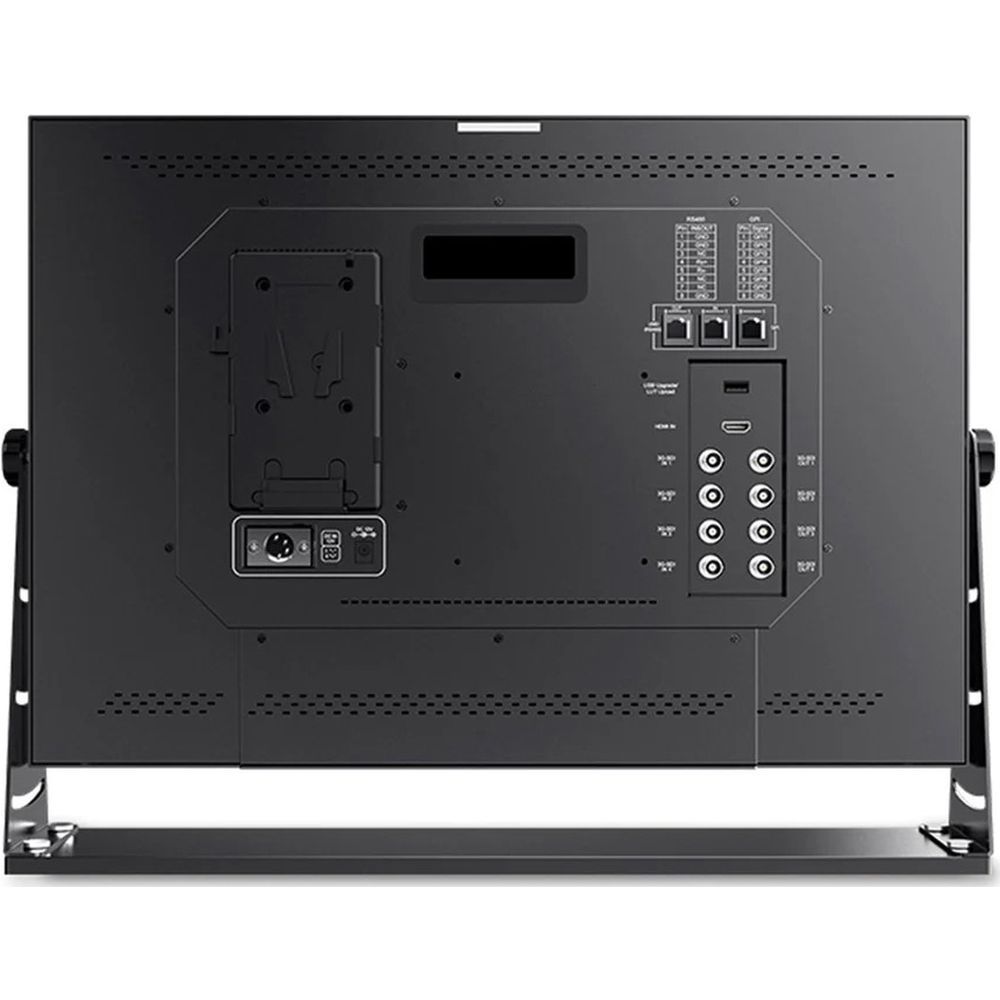

The monitor runs on 12V DC with a maximum power consumption of 37W and can optionally be powered via an XLR connection or a Sony V-mount battery plate. Four VESA mounting points allow installation on a rack, wall or arm. The bracket is not included.
