SmallRig 4236C 4" Suction Cup Camera Mount Kit for Vehicle Shooting

Article number:

12558142

SmallRig 4236C 4" Suction Cup Camera Mount Set for Vehicle Shooting

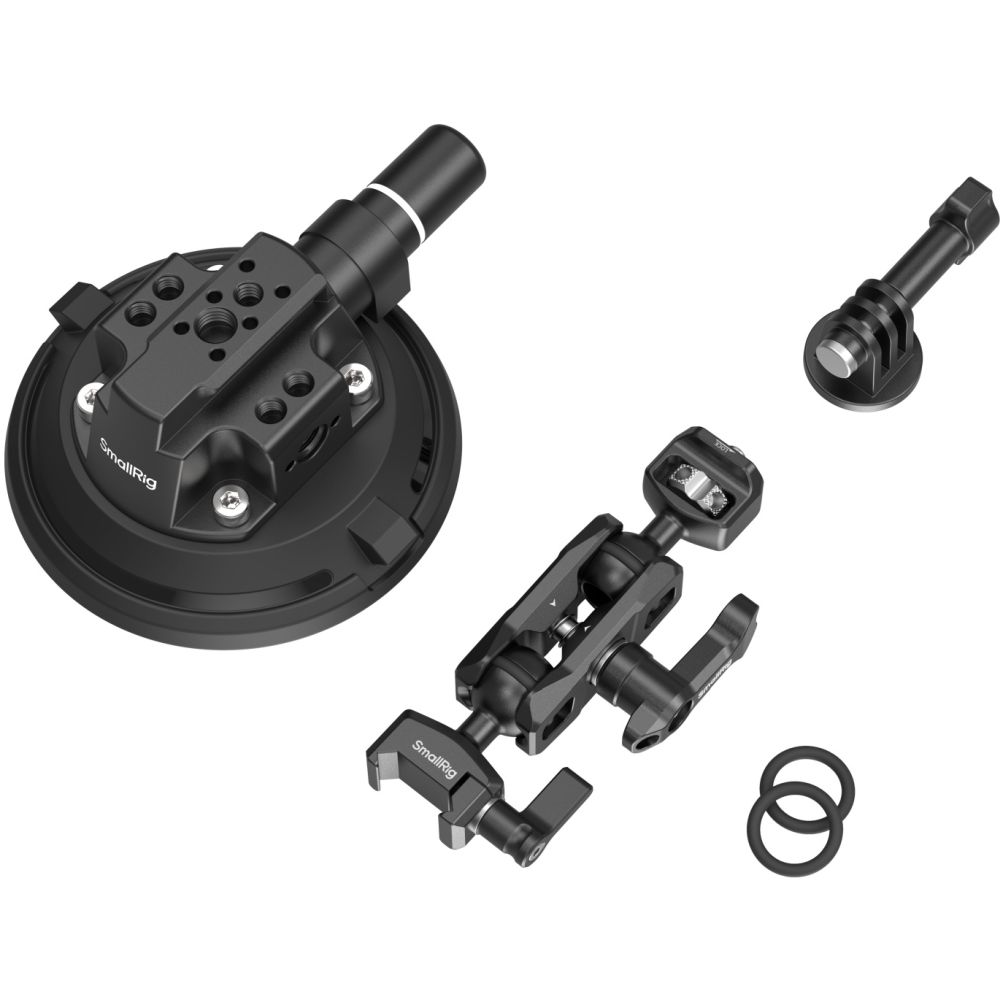

The SmallRig 4236C 4" Suction Cup Camera Mount Set for vehicle shooting consists of a 4-inch suction cup, a magic arm, and a dust cap. The robust and wear-resistant suction cup, made primarily from NBR, can operate at temperatures ranging from -20°C to 60°C. It is resistant to deformation, airtight, and suitable for clean, dry, and smooth surfaces. Thanks to its powerful suction force, it can support equipment weighing up to 3 kg in combination with the magic arm.

The aluminium alloy suction cup camera mount features 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 mounting holes, compatible with models 3757B, 3873, 3874, and 2906B. The suction cup is manually pumped and locked, with a warning indicator for added safety and reliability. Replace the dust cap when the mount is not in use to extend its lifespan.

When shooting timelapse footage from a vehicle or indoors, the magic arm can be quickly attached to the suction cup via the NATO clamp at one end and to a camera at the other. Compatible cameras include the Sony ZV-E10, Canon EOS M50, GoPro 13/12/11/10/9 (in Cage 3084C), and DJI Action 5 Pro (in Cage 4119C).

Features of the SmallRig 4236C 4" Suction Cup Camera Mount Kit for Vehicle Shooting

  • Load capacity up to 3 kg on a vehicle travelling at 80 km/h or lower
  • All-in-one NATO clamp, quick-release suction cup and articulating arm
  • Dimensions: 139.6 x 105.8 x 50.2 mm
  • Weight: 355 grams

In the Box

  • 1x 4" vacuum suction cup
  • 1x Magic arm
  • 2x Silicone ring
  • 1x 2-pin mount
Dimensions & Weight
Length (mm) 139.6 mm
Weight (g) 264.0 g
Width (mm) 105.8 mm
Height (mm) 50.2 mm
