SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor

Article number:

12546269

SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
  • SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
  • SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
  • SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
  • SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
List price £2418,-
£1581,-

Delivered within 3 to 4 working days.

SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor
£1581,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,434 photographers

    Not happy? 14-day return period
The SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field Monitor is a 21.5-inch 4K 12G-SDI input HDR monitor with high brightness for film set or livestream productions.

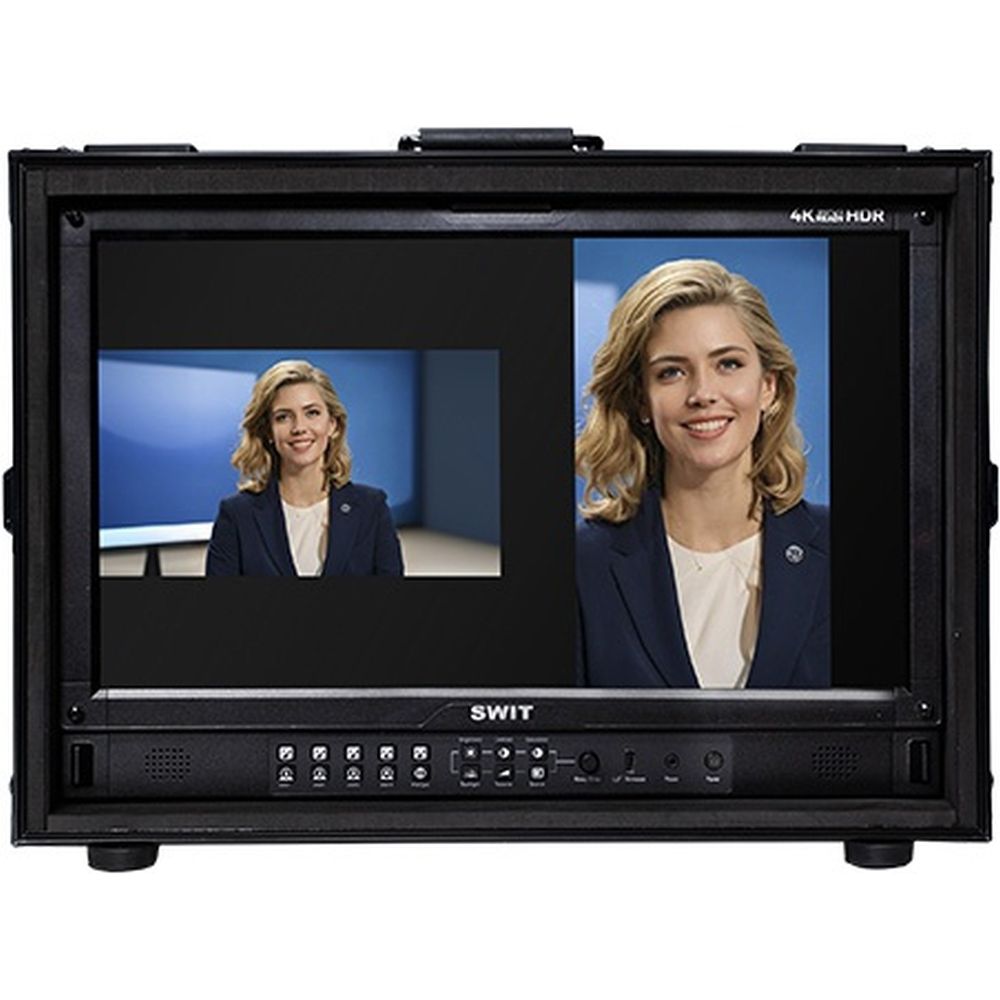

SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field Monitor

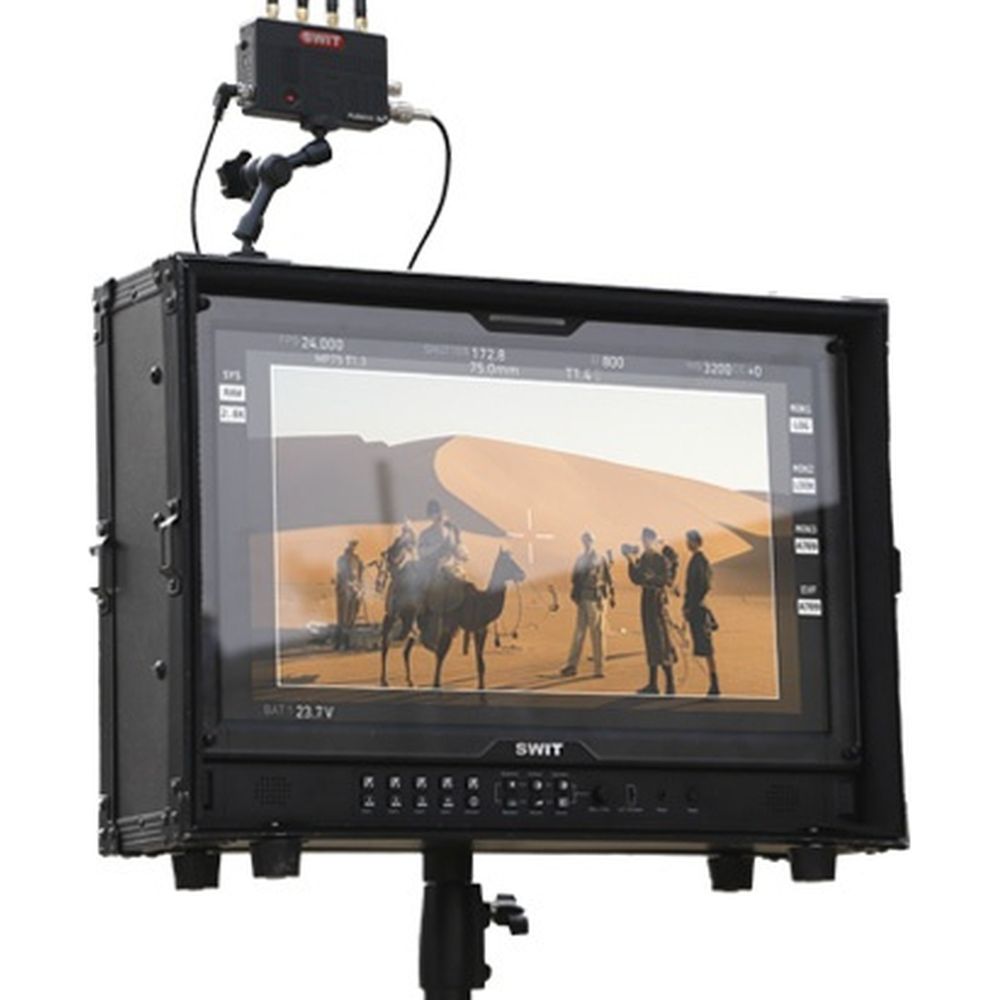

The SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field Monitor is a 21.5-inch 4K 12G-SDI input HDR monitor with high brightness, designed for film set or livestream productions. It comes with a flight case and screen protector, and can be mounted on a C-stand for straightforward video productions in the field.

The monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel with 1000 cd/m² backlighting, suitable for use in sunlight and supporting PQ/HLG/S-log3 HDR monitoring.

The FM-215HDR supports a range of 4K inputs, including:

  • 12G-SDI 4K input and output
  • 4× 3G-SDI Quadlink 4K input
  • HDMI 2.0 4K input

It supports 4x video input from mixed formats (quad-view display), or 2x Pic-by-Pic or Pic-in-Pic inputs, as well as 2x vertical (cropped) display modes. You can independently select the HDR/SDR gamma and colour gamut for each input.

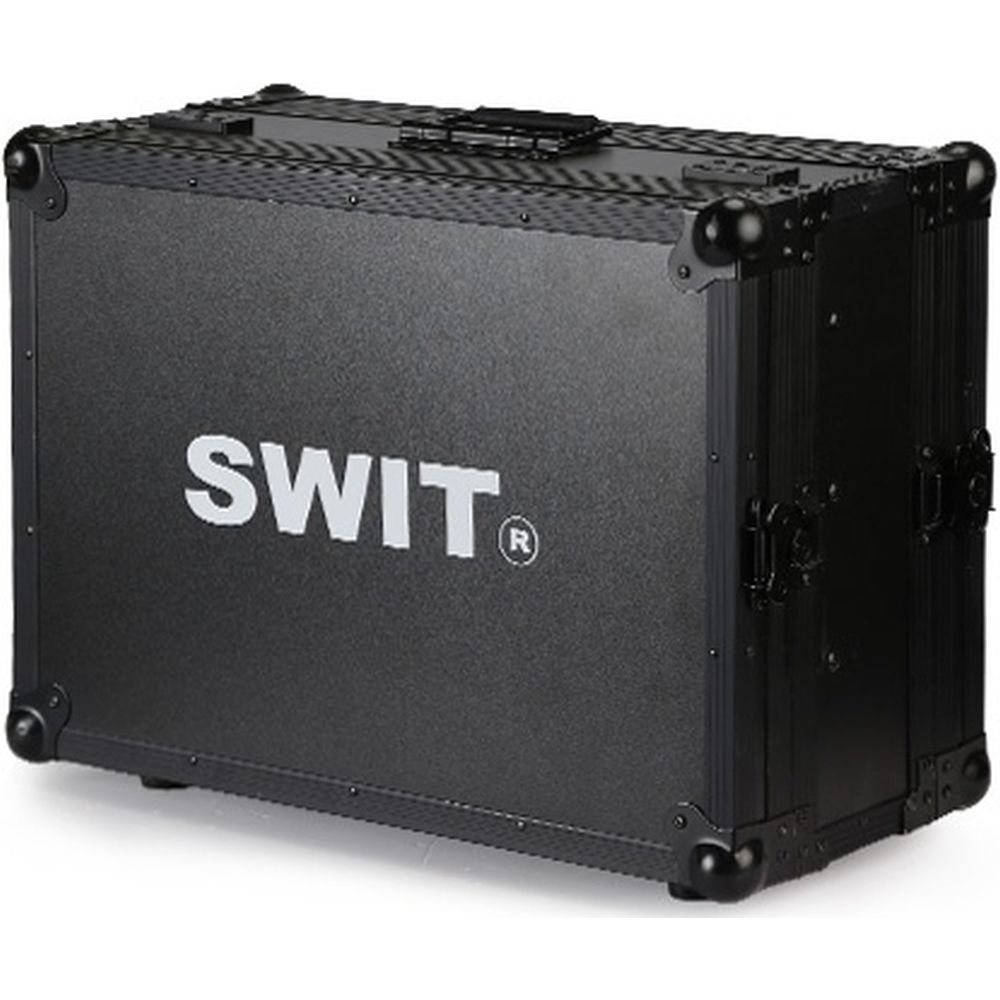

The FM-215HDR monitor comes with a sturdy aluminium flight case for full protection on the film set.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field monitor

  • 21.5-inch 1920×1080 QD-LED panel
  • 1000 cd/m² high brightness PQ/HLG HDR
  • 100% DCI-P3 wide colour gamut coverage
  • VICO 1.97 Class A eye-protection LCD screen
  • 12G-SDI, 4x3G-SDI, HDMI 2.0 4K input
  • 4-channel SDI/HDMI mixed format multiview
  • 2 inputs mixed PBP or PIP display
  • Horizontal and vertical (cropped) PBP display
  • Zero-latency video processing (0.01 frame)
  • 3DLUT automatic self-calibration without PC
  • Built-in multi-camera Delog LUTs
  • 3DLUT upload via USB
  • Waveform / Focus assist / False colour / Zebra
  • Includes flight case and screen protector
  • Input voltage: DC 12V–17V, AC 100–240V, 50/60Hz
  • Power consumption: 60W
  • Operating temperature: 0°C ~ +50°C
  • Operating humidity: 10% ~ 90%
  • Storage temperature: −15°C ~ +60°C
  • Storage humidity: 10% ~ 90%
  • Dimensions: 570 x 405 x 260 mm (with housing)
  • Weight (main housing): 7.28 kg

In the Box

  • 1x SWIT FM-215HDR 21.5 inch 1000 nits 12G-SDI HDR Field Monitor
  • 1x Flight case
  • 1x Screen protector
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs 12G-SDI
SDI input
SDI output
Dimensions & Weight
Weight (g) 7280.0 g
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 1000.0 nits
Quadview/PiP
Screen size (in) 21.5 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards PQ
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
