SWIT KA-M20S hotswap V-mount plate for dual pocket batteries

Article number:

12565653

SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
  • SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
  • SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
  • SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
  • SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
List price £398,-
£155,-
On order
SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
£155,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period

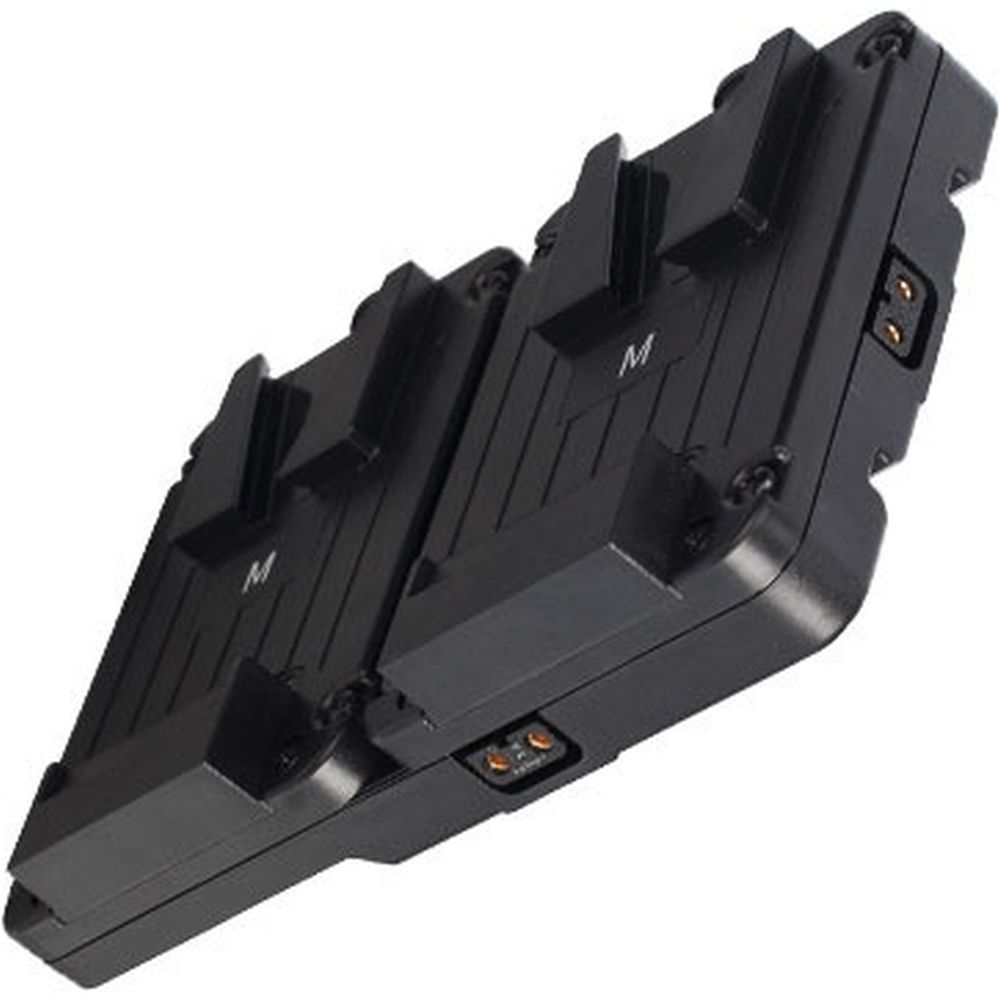

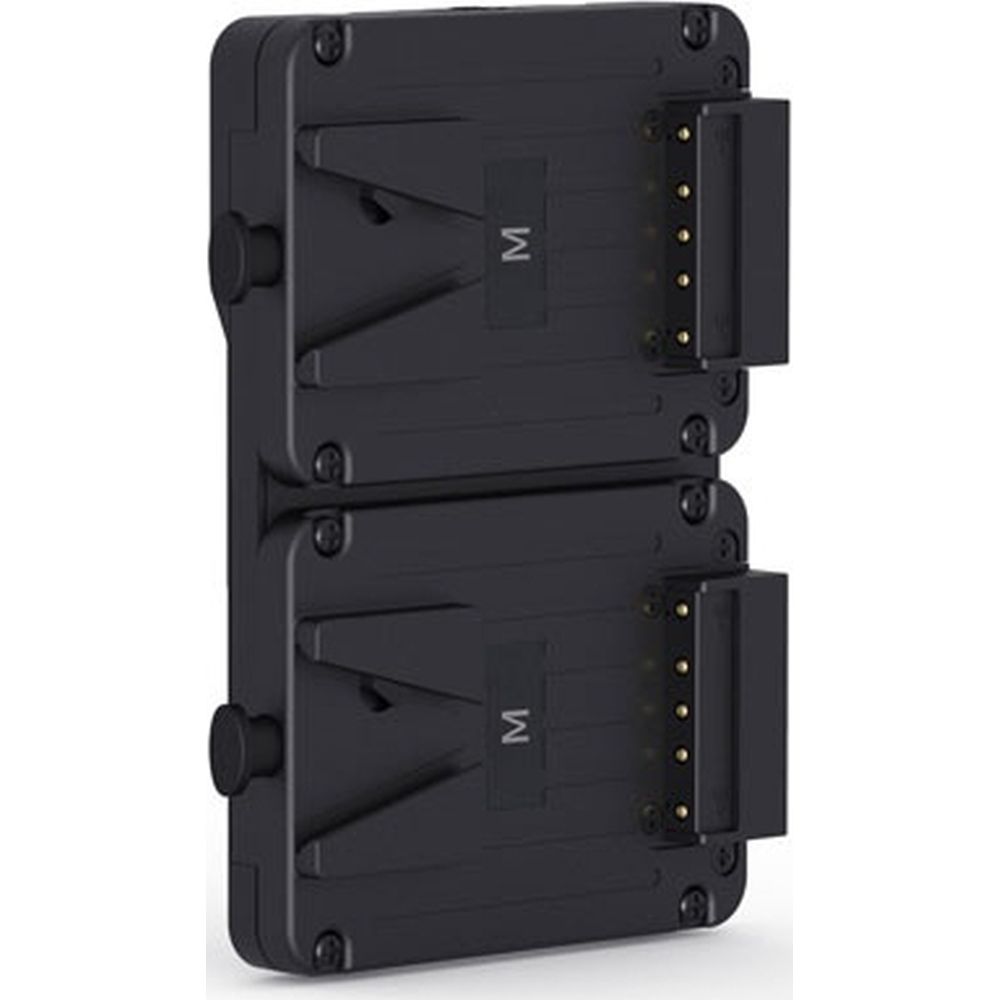

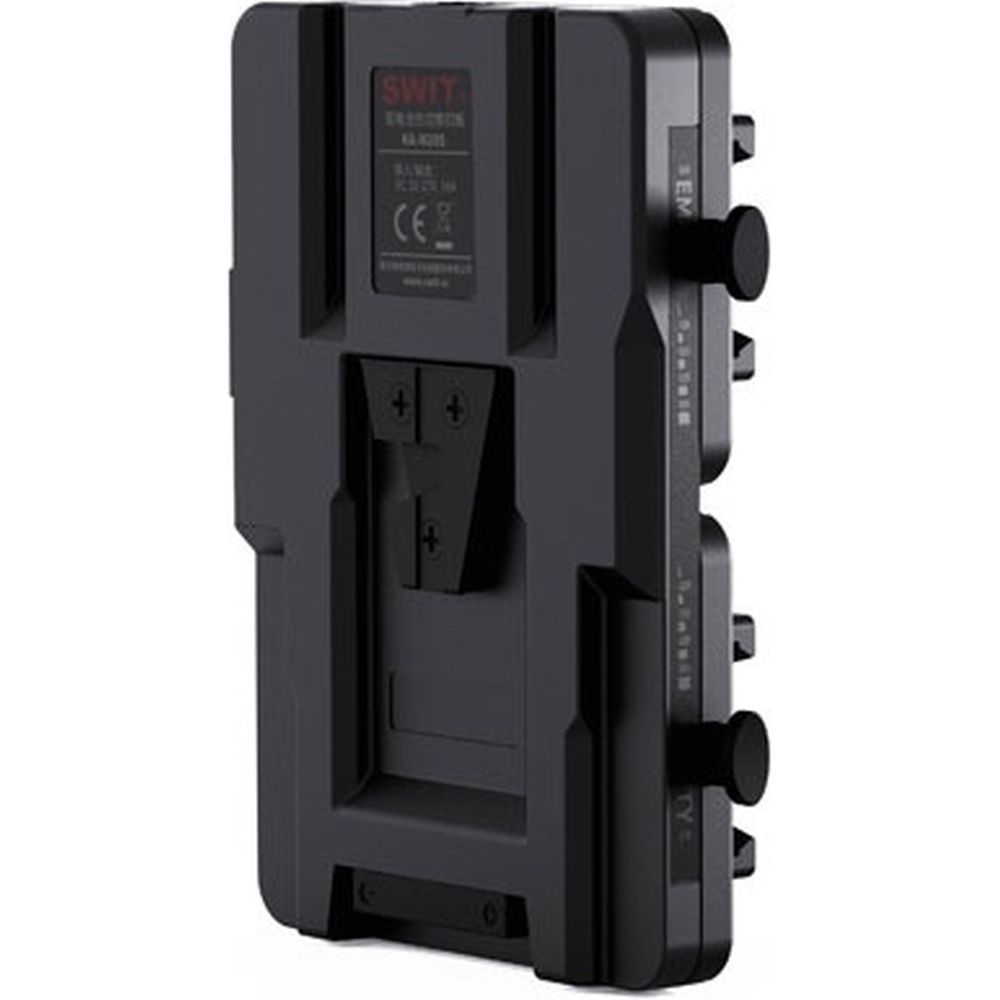

The SWIT KA-M20S hotswap V-mount plate for dual pocket batteries is an expansion plate for SWIT Pocket V-mount batteries. With two PB-M batteries, which match the size of a standard high-capacity V-mount battery, the KA-M20S can use the two batteries one at a time (hot swap mode) or together (high load mode).

SWIT KA-M20S hotswap V-mount plate for dual pocket batteries

Two power modes: Hot swap mode and high load mode

When the power consumption of the device is lower than the maximum output of one PB-M battery (150W), the KA-M20S switches to "Hot swap mode" — where the two batteries are used one at a time and the free battery can be swapped out at any moment.

When the power consumption of the device is higher than the maximum output of one PB-M battery (150W), the KA-M20S switches to "High load mode" — where both batteries are used simultaneously and neither battery can be removed.

Hot swap mode and high load mode switch automatically between the two modes depending on the current power consumption of the device.

Power/Hot Swap indicators

Both batteries have a separate power indicator. The flashing of the top power LED indicates that this battery is discharging. The flashing of the EMPTY LED means that this battery is empty and needs to be replaced.

2 D-tap power outputs

On the top and right side of the KA-M20S plate there are 2 D-tap connectors for flexible connection to a variety of cameras.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT KA-M20S hotswap V-mount plate for dual pocket batteries

  • Compatible with 2x PB-M Pocket V-mount batteries
  • Low-power devices: Hot-swap mode
  • High-power devices: High load mode
  • Current indicators and hot-swap indicators
  • Sony & RED current information display
  • Equipped with 2x D-tap connectors
  • Slim and lightweight, balanced installation
  • Multiple safety circuit
  • Input: SWIT PB-M series Pocket V-mount batteries x2
  • Output: V-mount 11-16.8V / D-tap x2, 11-16.8V
  • Maximum load (Hot swap mode): V-mount: 150W / D-tap: 150W/10A
  • Maximum load (High load mode): V-mount: 300W / D-tap: 150W/10A
  • Operating temperature: -20°C ~ 50°C
  • Dimensions: 148 x 108 x 28 mm
  • Weight: 238 grams

In the Box

  • 1x SWIT KA-M20S hotswap V-mount plate for dual pocket batteries
Dimensions & Weight
Length (mm) 148.0 mm
Weight (g) 238.0 g
Width (mm) 108.0 mm
Height (mm) 28.0 mm
General
Color Black
Compatibility
Compatible with brand/series SWIT PB-M98S / OMNI-99S / OMNI-50S pocket V-mount
