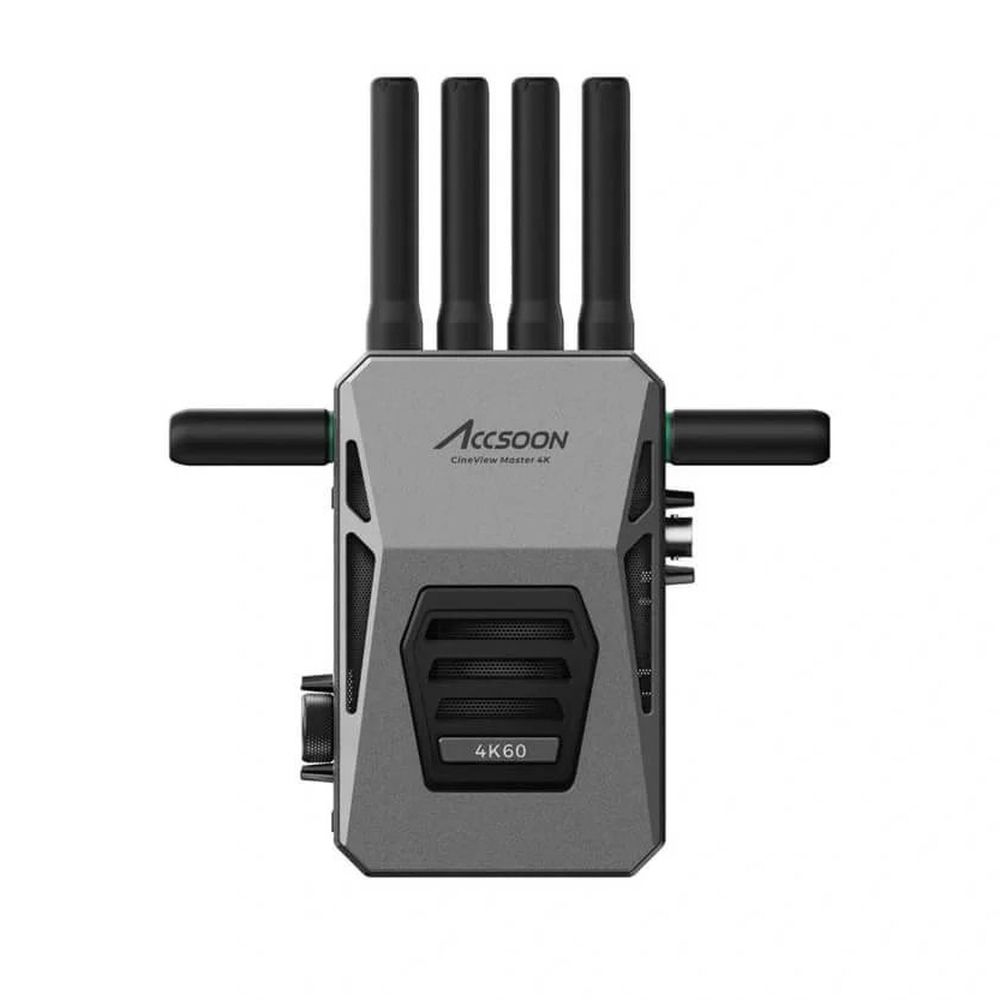

Accsoon CineView Master 4K - Receiver only

Article number:

12507776

Accsoon CineView Master 4K - Receiver only
Accsoon CineView Master 4K - Receiver only
  • Accsoon CineView Master 4K - Receiver only
List price £479,99
£417,-

Delivered within 3 to 4 working days.

Accsoon CineView Master 4K - Receiver only
Accsoon CineView Master 4K - Receiver only
£417,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
The Accsoon CineView Master 4K - Receiver only is a receiver of the CineView Master 4K system. The Accsoon CineView Master 4K wireless system is a pioneering innovation in the world of wireless video.

Accsoon CineView Master 4K - Receiver only

The Accsoon CineView Master 4K - Receiver only is a receiver of the CineView Master 4K system. The Accsoon CineView Master 4K wireless system is a pioneering innovation in the world of wireless video. It offers true 4K 60P transmission, with tri-band (2.4 GHz + 5 GHz + 6 GHz) and DFS wireless transmission, and a best-in-class latency of only 25 ms. With an extended range of 2.5 km and the ability to monitor on up to 5 devices, this system is perfect for a variety of applications. This receiver (RX) unit can run SDI and HDMI simultaneously, and monitoring can be done via the Accsoon SEE app.

The CineView Master 4K also features an 8K high-performance A/V processor, powered by DC input or NP-F batteries. It is compatible with the Accsoon V-Mount battery adapter and features intelligent, silent heat dissipation. Made of aerospace-grade aluminium alloy, it also has a 1.05-inch full-colour LCD screen. This system offers a series of world firsts, including the first tri-band wireless video system, the first 4K 60P Wi-Fi-based video transmission system and the first Wi-Fi system with less than 25 ms latency. With its ability to process 4K 60P video, connect up to 5 devices and use Accsoon's innovative SeeMo technology for professional monitoring and streaming, the CineView Master 4K is a game changer for video on set.

Information on the EU General Product Safety Regulation (GPSR)

Apex CE Specialists GmbH

Grafenberger Allee 277, Düsseldorf 40237, Germany

Features of the Accsoon CineView Master 4K - Receiver only

  • A/V processor: 8K High Performance A/V processor
  • Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
  • Video output: HDMI3G SDI
  • SDI output format: 1080p: 24/25/30/50/60p level A
  • 1080i: 50/60i
  • HDMI output format: 4K (3840\*2160): 24/25/30/50/60p
  • 1080p: 24/25/30/50/60p
  • 1080i: 50/60i
  • HDMI loop-out format: Identical to HDMI video input
  • DC port: 5.5 mm x 2.1 mm, centre-positive
  • DC voltage: 7.4-16.8 V
  • Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
  • Power consumption: 5.0 W average
  • Audio: HDMI embedded, SDI embedded
  • Latency: 1080p < 25 ms
  • 4K < 35 ms (camera latency not included)
  • Transmission range: ≥ 2.5 km (no obstacles, no interference)
  • Operating environment temperature: -10 - 40°C
  • Dimensions (without antennas): 130 x 95 x 32 mm
  • Weight (without antennas): 320 grams

In the Box

  • 1x Accsoon CineView Master 4K receiver
Connections & Connectivity
SDI input
Range (m) 2500.0 m
Dimensions & Weight
Length (mm) 130.0 mm
Weight (g) 320.0 g
Width (mm) 95.0 mm
Height (mm) 32.0 mm
General
Latency 25.0
Type Receiver
Recording & Codecs
Max. resolution 4K
Power
Battery
