Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch

Article number:

12563255

Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
  • Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
  • Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
List price £2298,-
£1989,-

Delivered within 3 to 4 working days.

Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
£1989,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period

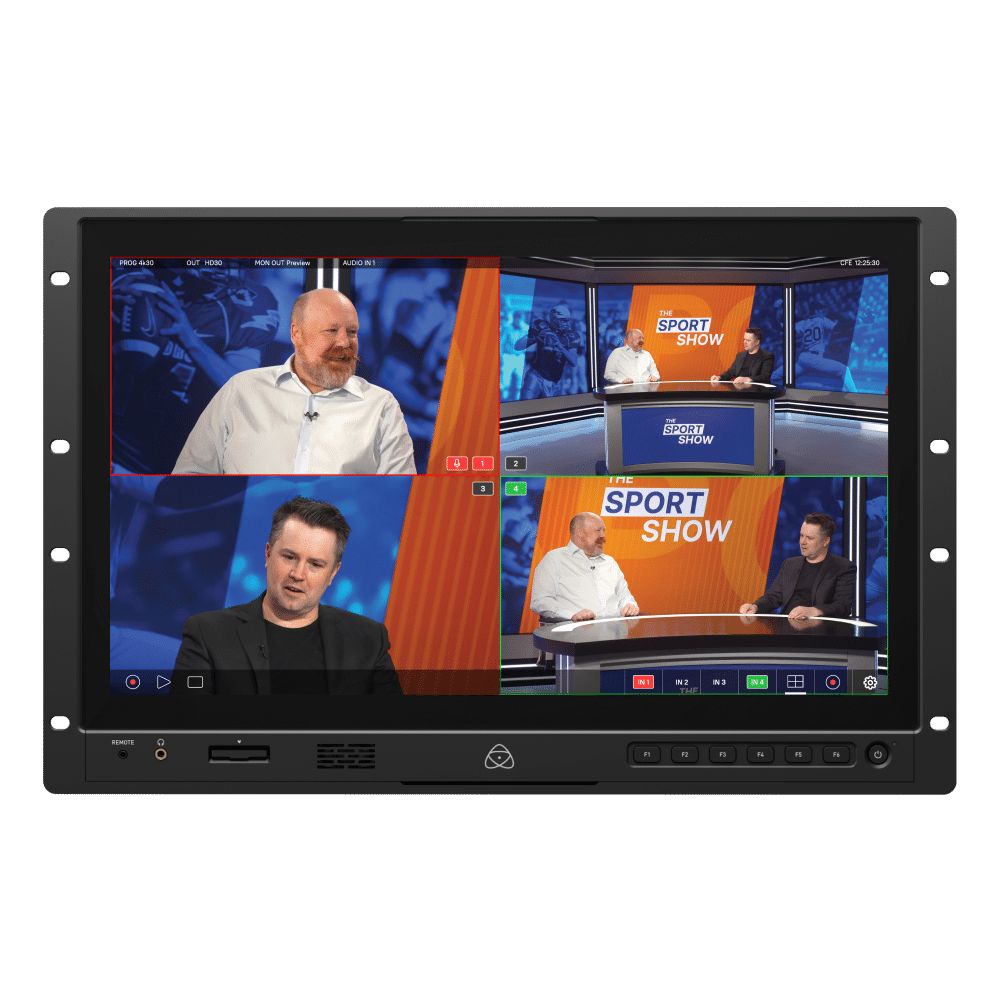

This 19-inch QLED touchscreen combines monitoring, recording and live switching in one device. With a peak brightness of 1200 nits and dynamic zone backlighting, the screen is perfectly readable in daylight and suitable for accurate HDR evaluation (PQ/HLG). Thanks to advanced monitoring tools such as Waveforms, Vectorscopes and False Colour, you maintain full technical control over your image.
  • Thanks to the high brightness, this monitor is perfect for outdoor use in bright daylight
  • On the large and sharp screen, you can see all the details clearly
  • The LUT preview during LOG filming provides filmmakers with optimal control over exposure and color settings
  • Due to its relatively large size, it may be less suitable for portability, but it’s ideal for studio use
  • Fairly heavy, therefore possibly less suitable for travel

Atomos Shogun AV-19

This 19-inch QLED touchscreen combines monitoring, recording and live switching in one device. With a peak brightness of 1200 nits and dynamic zone backlighting, the screen is perfectly readable in daylight and suitable for accurate HDR evaluation (PQ/HLG). Thanks to advanced monitoring tools such as Waveforms, Vectorscopes and False Colour, you maintain full technical control over your image.

Unique to this system is its Quad-Link SDI functionality. This allows you to switch live between four separate 1080p60 video sources and record them simultaneously as ISO feeds. For high-end cinema productions, the recorder supports 12-bit RAW recording up to 4K 60p (ProRes RAW) from cameras such as the Sony FX6 or Canon C series. Files are written to SSDs in Apple ProRes or Avid DNxHR format, ready for immediate editing.

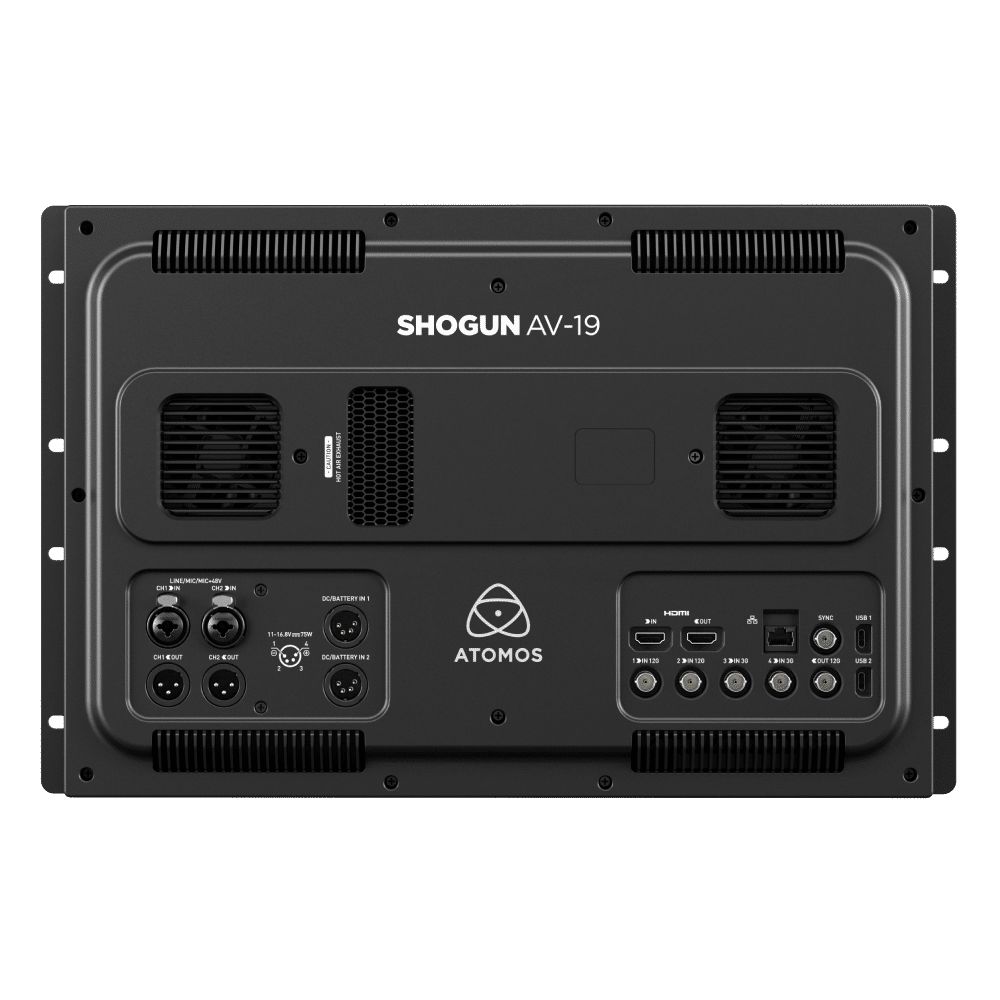

In terms of connectivity, the system features four 12G/3G-SDI inputs, HDMI 2.0 in/out and professional XLR audio connections with 48V phantom power. This eliminates the need for separate audio recorders, as you can power and synchronise external microphones directly with the video signal.

Not included, but recommended

  • Extra battery
  • SSD drive

Information on the EU General Product Safety Regulation (GPSR)

Mafico BV

Dorsvloerweg 897, 2661 MN Bergschenhoek, The Netherlands

Features of the Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch

  • For professionals/advanced users
  • Monitor-Recorder-Switcher
  • 19 inch (1920x1080)
  • 1200 nits HDR
  • Up to 4K 60p (RAW/ProRes)
  • 4-channel HD ISO switching
  • 4x SDI (12G/3G), 1x HDMI 2.0
  • 2x XLR (48V Phantom)
  • 2.5" SSD or AtomX SSDmini compatibility
  • 5.5 kg
  • 50.4 x 31.0 x 6.3 cm

In the Box

  • 1x Atomos Shogun AV-19 4K HDR Monitor-Recorder-Switcher 1200 Nits – 19 inch
  • 1x 4-pin XLR power supply
  • 1x Set of 5 international IEC power cables
  • 1x Set of 10 rack nuts and bolts
  • Cleaning cloth
  • User manual
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs 2x 12G-SDI
SDI input
SDI output
Dimensions & Weight
Length (mm) 60.0 mm
Weight (g) 5220.0 g
Width (mm) 482.0 mm
Height (mm) 310.0 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 1200.0 nits
Quadview/PiP
Screen size (in) 19.0 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards HLG
LUT support
Sensor
Resolution 4K
Power
Mains
Battery
