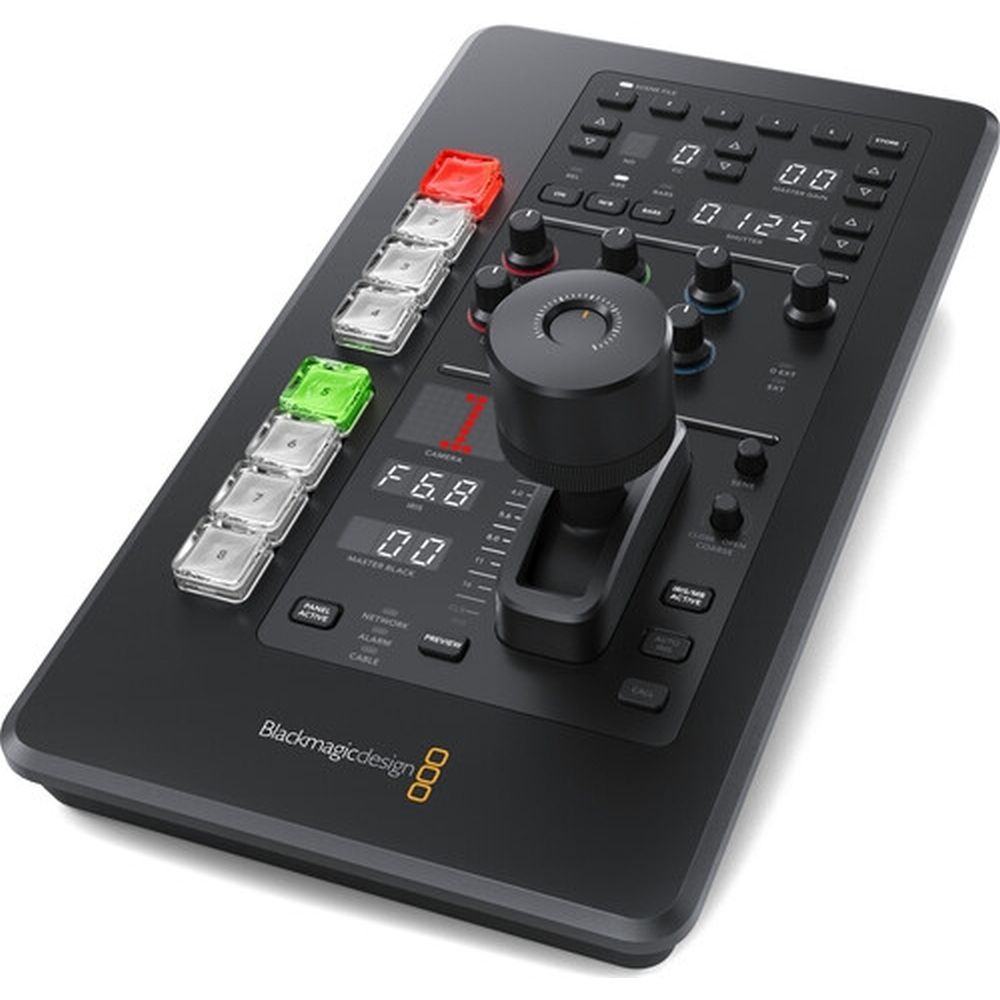

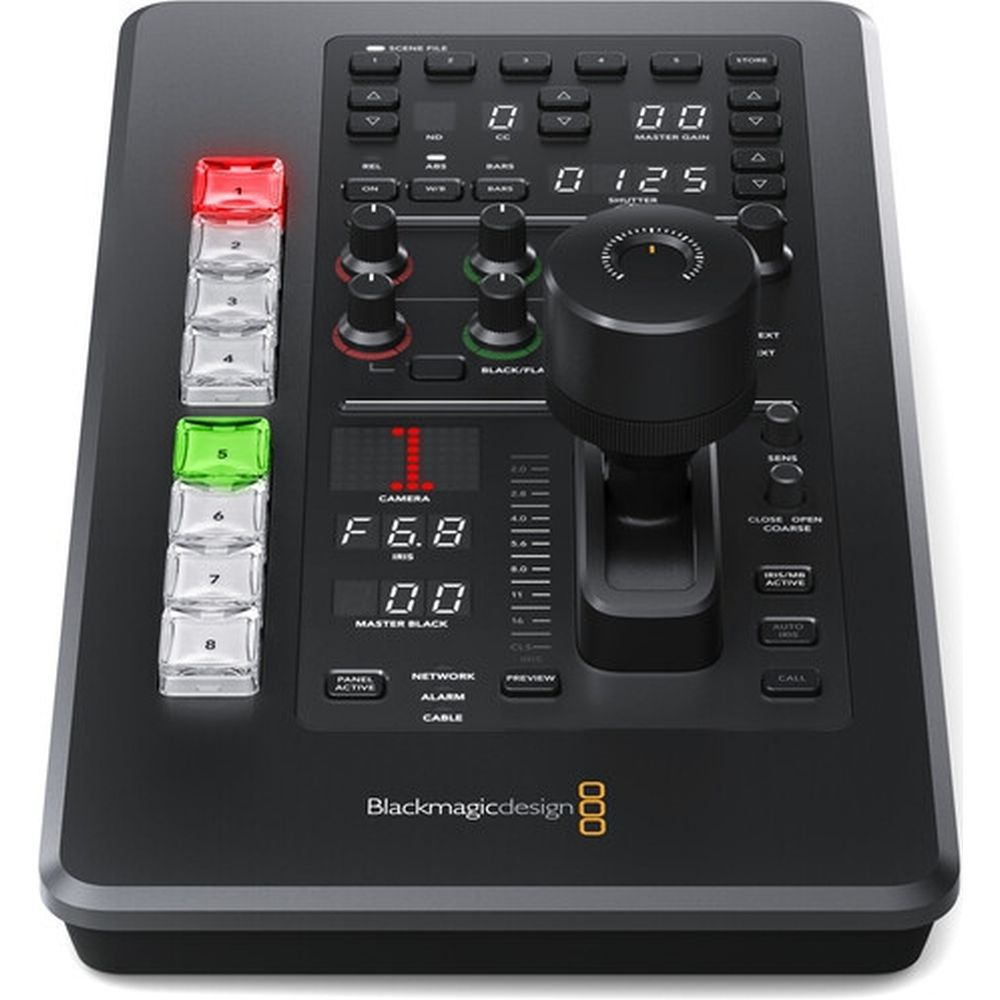

Blackmagic ATEM Micro Camera Panel
.

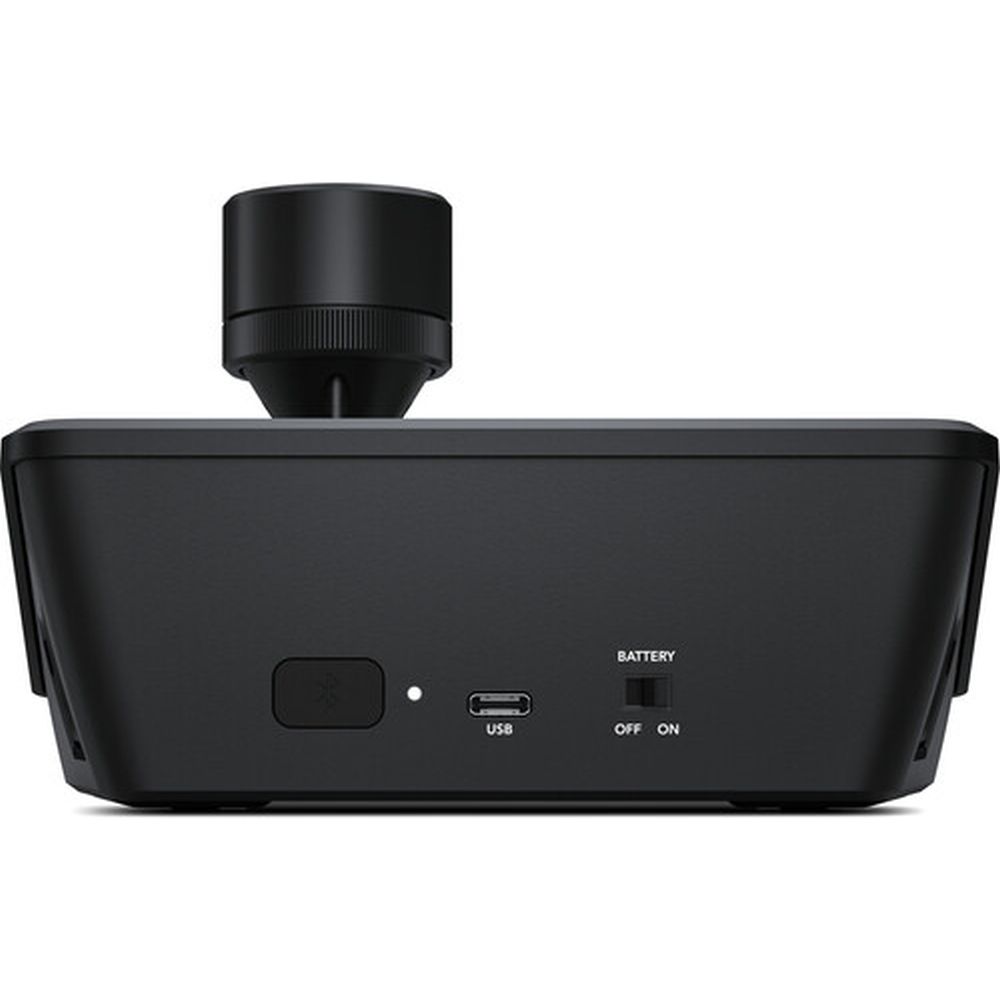

Control up to eight URSA Mini Pro, URSA Broadcast or Blackmagic Studio cameras with the Blackmagic ATEM Micro Camera Panel. This compact variant of the ATEM Camera Control Panel features eight assignable NKK camera selection buttons, red/green on/off illumination of the Air button, a 3-axis joystick and various controls for iris control, preview, gain, Filters, Shutter speed, White balance and more. The panel runs on a built-in battery and is charged via USB-C. It can be connected via USB-C to a Computer to use ATEM Software Control and can also be connected Wirelessly via Bluetooth for a fully mobile experience.
In live productions, all cameras need to have the right colour balance to achieve a ??consistent look during editing and transition between cameras. The ATEM Micro Camera Panel allows you to choose from up to eight cameras on ééone panel. When used with a larger number of cameras, you can very quickly switch which camera you operate on each CCU channel. It features a full set of traditional CCU controls, so you always get a clear view of the camera status.
The upper part of each Camera control element contains settings for changing Camera settings, and you can store and recall scèfake presets. Remote access to important Camera settings is essential when working in conditions where light can change during your work, such as daylight. These settings allow you to quickly adjust Camera based on changes in scène. Controls in this section include master gain, ND filters, White balance, Shutter speed and more.
The middle section contains independent RGB controls for adjusting the camera colour for the white and black parts of the image. These red, green and blue controls for adjusting black and white allow you to fine-tune multiple Cameras, essential for seamless editing without colour shifts. A trick used by experienced camera control operators is to adjust only the red and blue channels, so you can add and remove red and blue tones without straying too far from accurate colour.
The main Camera control is the high-quality professional joystick that allows precise adjustment of Aperture when moved up and down, and master black when turned. This is the same type of control used on broadcast camera control units, providing a truly professional user interface. There is also a call button to communicate with the cameraman, along with a panel lock button and indicators for network, power and cable connection to the Camera.
Contents of the packaging
.
- 1x Blackmagic ATEM Micro Camera Panel
- 1x USB-C cable
