DJI O4 Air Unit Pro

Article number:

12520264

DJI O4 Air Unit Pro

Expand your cinematography toolkit by adding FPV capabilities to your non-FPV drone with the DJI O4 Air Unit Pro. Featuring a camera module and dual antennas, the O4 Air Unit Pro fits drone frames as small as 5.08 cm. Combined with optional DJI Goggles, DJI's O4 transmission system can stream real-time Video at 1080p at 100 Fps from up to 9.3 miles away. This smooth and exciting first-person Video becomes even more stable with Racing Mode, which reduces latency to 15 ms. Inside the camera module, a 1/1.3" CMOS sensor captures 4K120 images with a 155° ultrawide FOV. These images can be stored on 4GB of built-in memory and optional microSD cards of up to 512GB.

.

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI O4 Air Unit Pro

.

  • Add FPV capabilities to your drone
  • Fits drone frames as small as 5.08 cm
  • Works with DJI glasses
  • DJI O4 transmission with 2T2R antennas
  • Stream 1080p100 video
  • Range up to 15 km
  • Record 4K120 footage
  • 4GB storage with microSD support
  • 1/1.3" CMOS with 155° FOV
  • 10-bit D-Log M colour mode
  • Dimensions tranmission module: 33.5 x 33.5 x 13 mm
  • Camera module dimensions: 25.55 x 23.3 x 20 mm
  • Antenna dimensions: 110 mm
  • Weight without camera module: 15.6 grams
  • Weight with camera module: 32 grams
  • Antenna weight: 2.1 grams

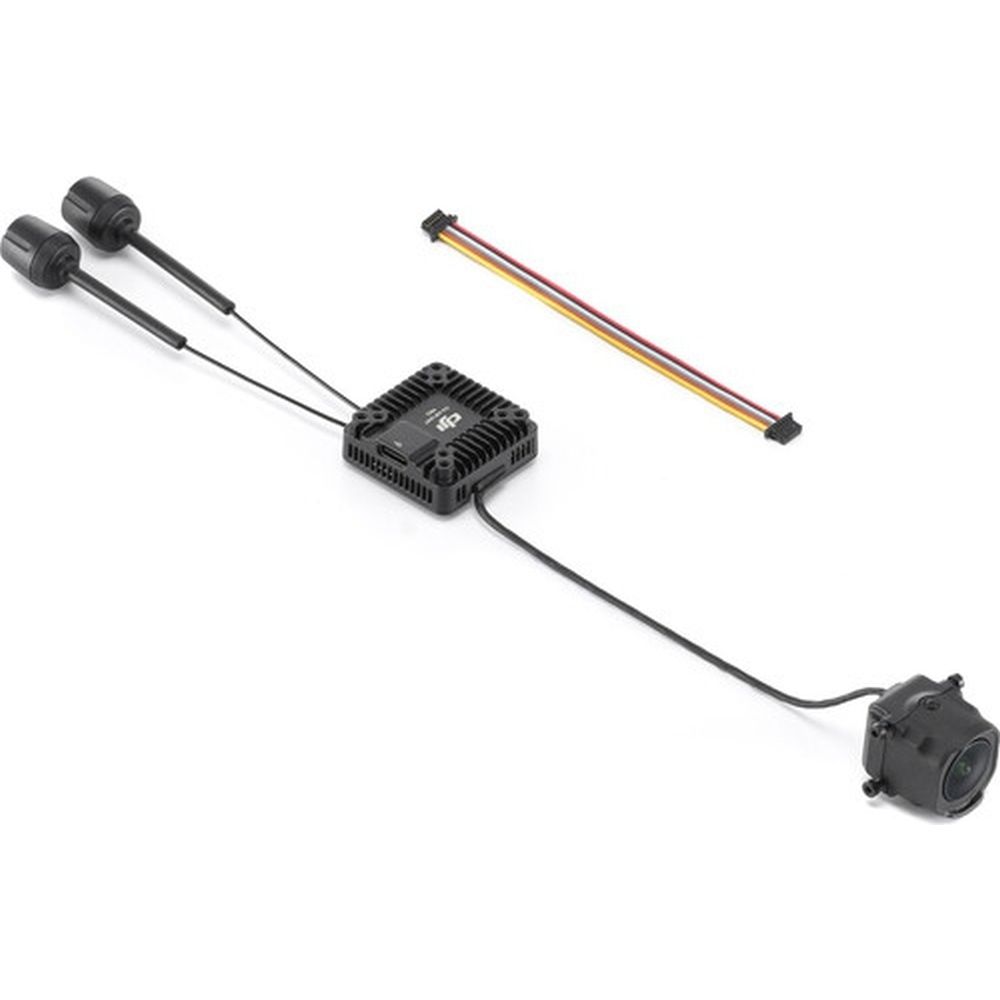

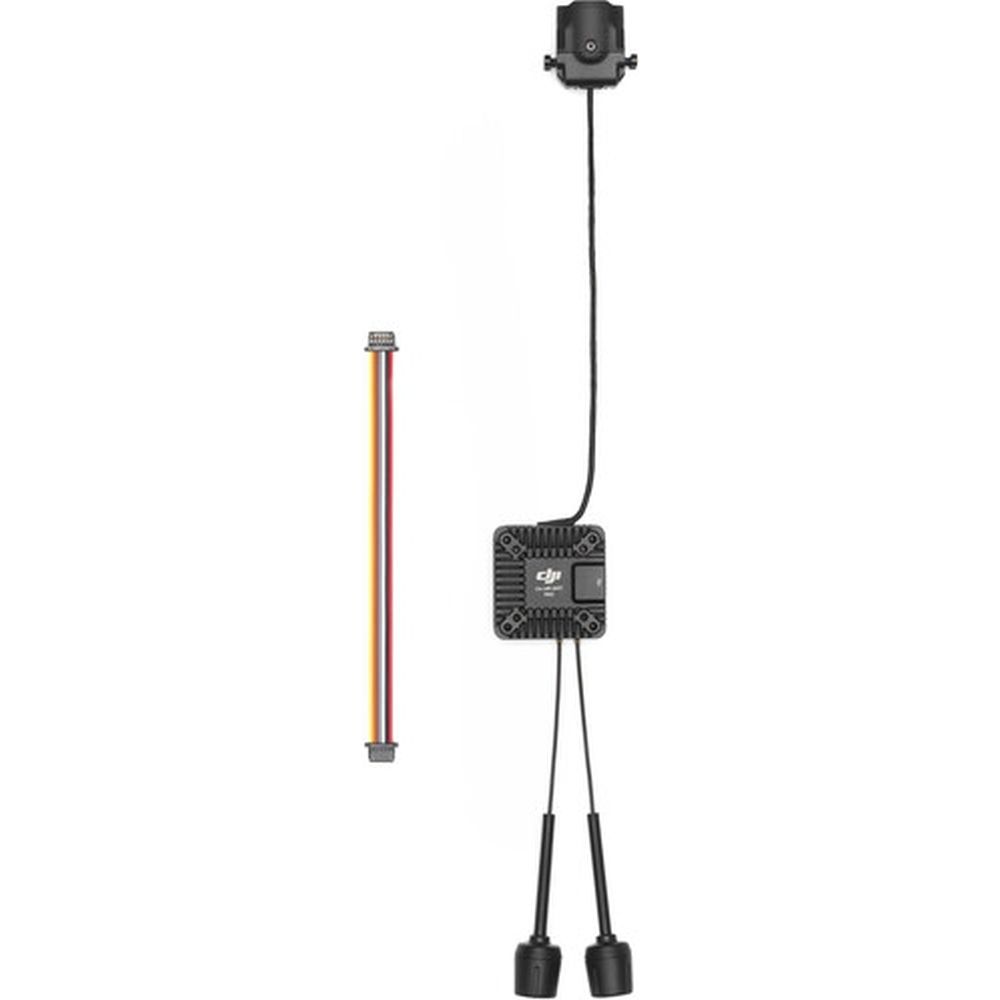

In the Box

  • 1x DJA Camera Module
  • 1x DJI Transmission Module
  • 2x DJI Antenna
  • 1x DJI 3-in-1 Cable
Dimensions & Weight
Weight (g) 32.0 g
General
Component type Air unit
Compatibility
Compatible with brand/series DJI O4 FPV System
Connections & Connectivity
Frequency 5.8 GHz
