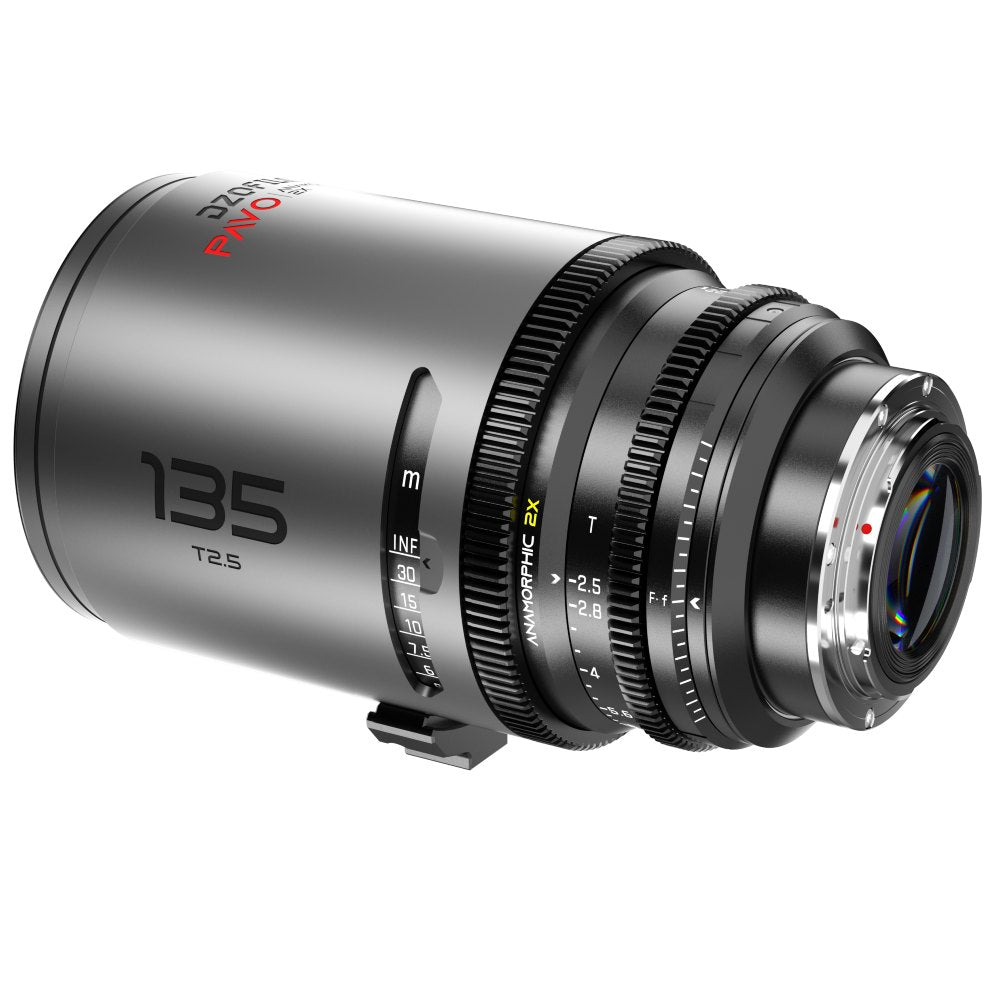

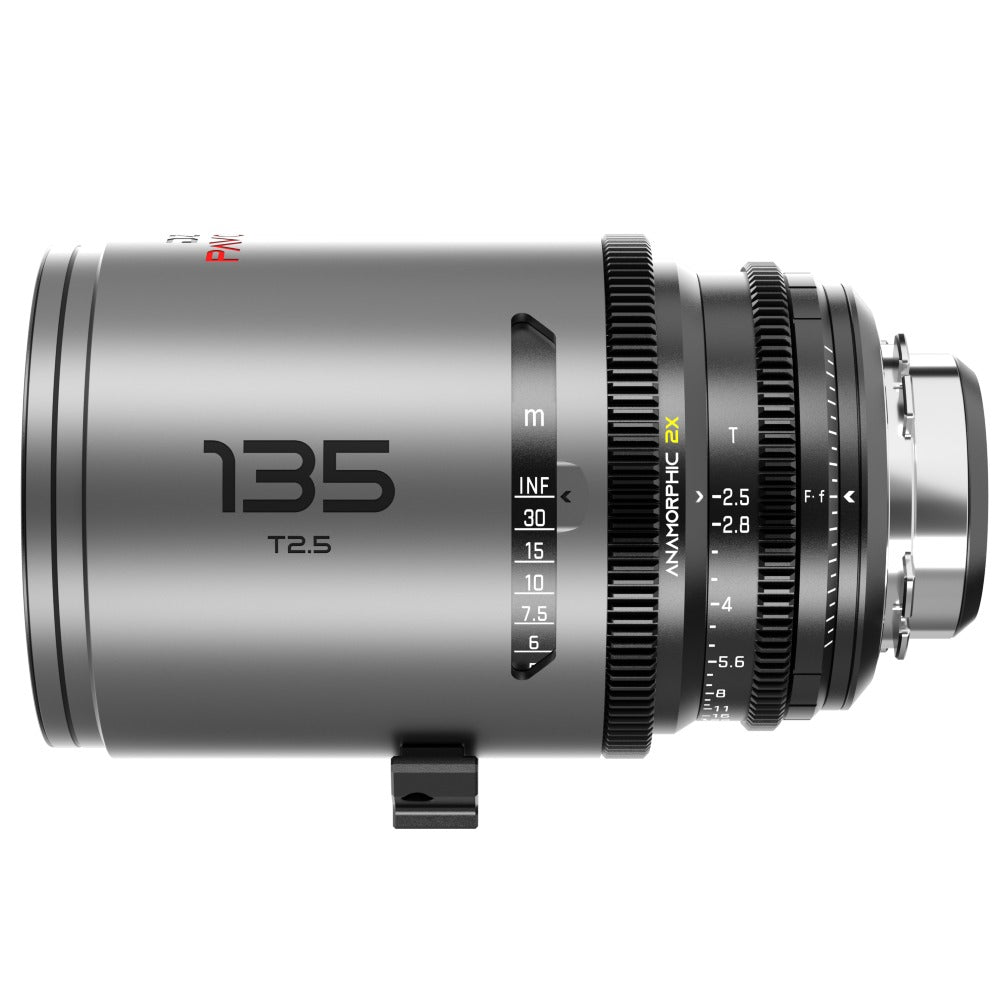

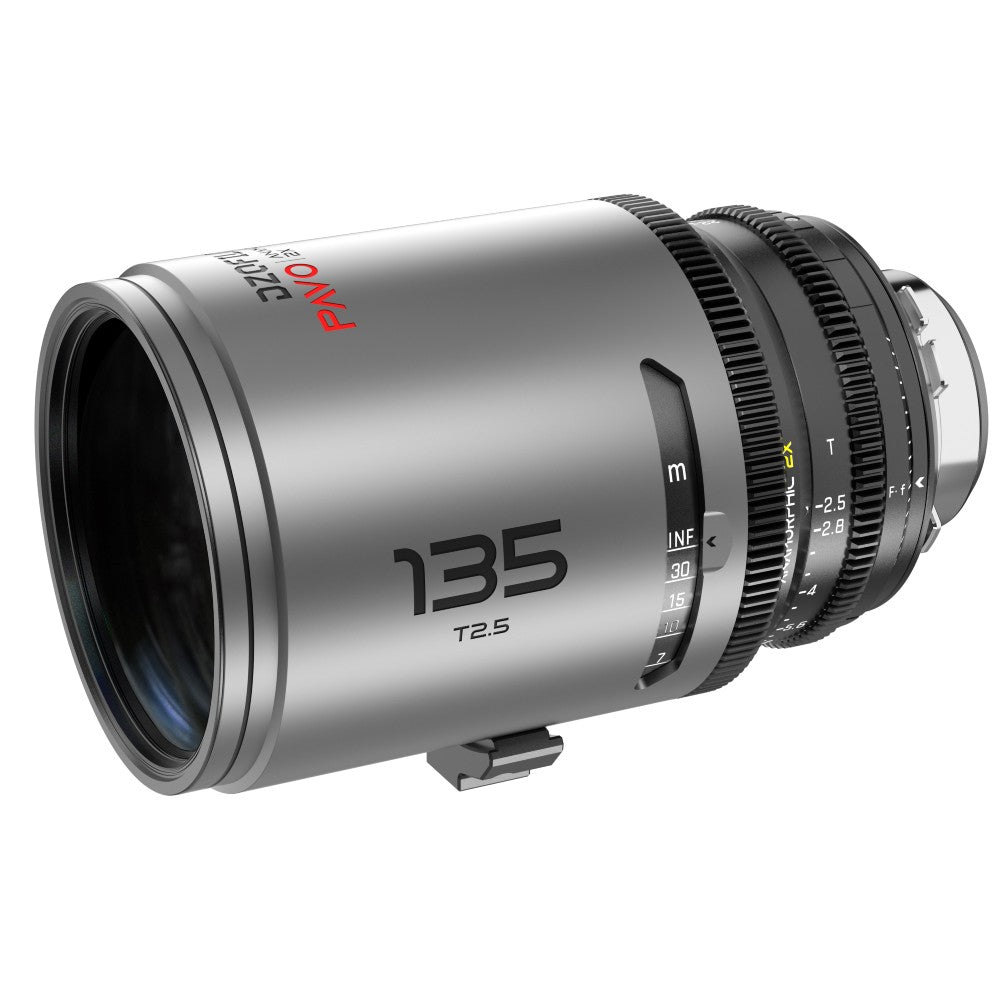

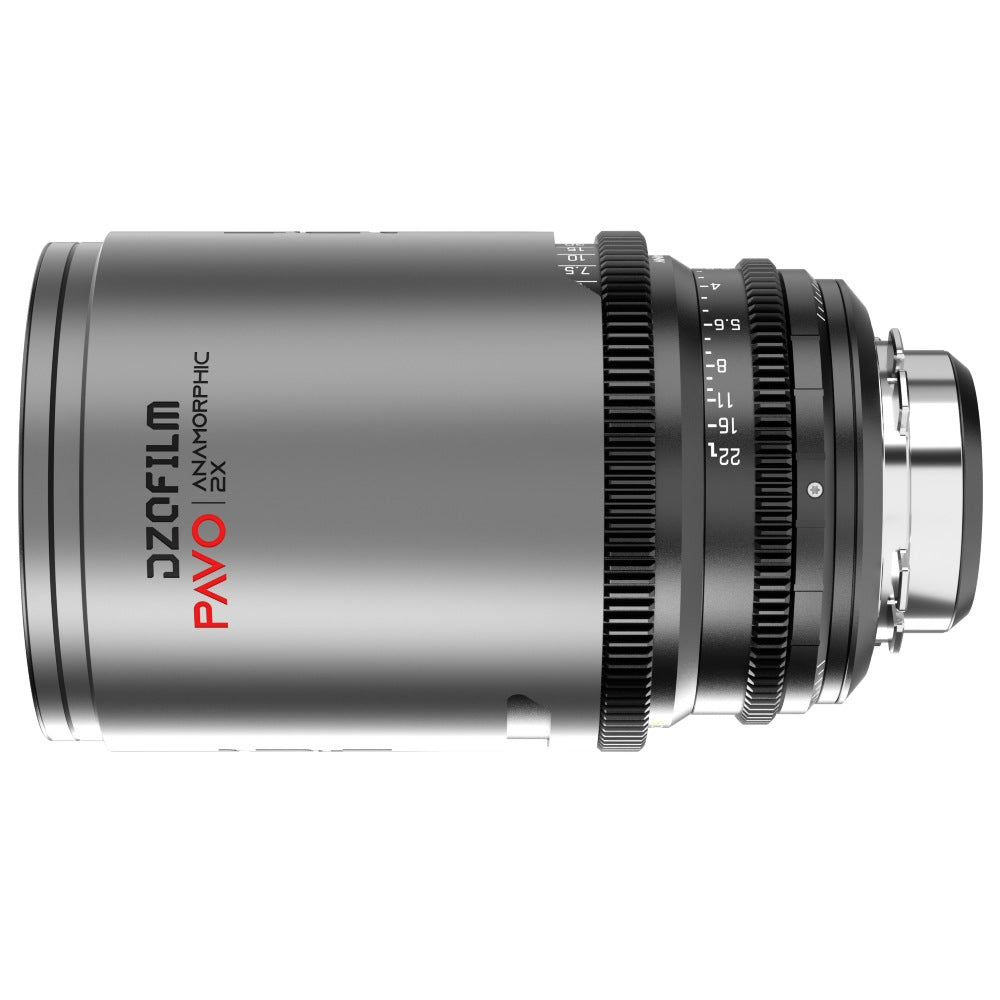

DZOFilm Pavo 2x anamorphic Prime 135mm T2.5 - Neutral Coating - PL&EF mount (meter)

Article number:

12559766

DZOFilm Pavo 2x anamorphic Prime 135mm T2.5 - Neutral Coating - PL&EF mount (metre)

DZOFilm Pavo 2x Anamorphic Prime Lens 135mm T2.5 is an anamorphic cinematographic lens with neutral coating, designed for Super35 sensors. With a maximum brightness of T2.5 and a compression factor of 2x, this lens delivers an elliptical ‘waterfall’ bokeh and elegant horizontal flares. Compatible with PL and EF mounts, it is ideal for cinematographic productions and shooting with drones or stabilisers, for example.

The advanced optical construction of the PAVO 135mm is designed to minimise chromatic aberrations and control the barrel distortion typical of anamorphic lenses. This guarantees sharp images from the centre to the edges, with vivid colour reproduction and natural skin tones. The 16-blade aperture creates a soft, rounded bokeh. The 300° rotation focus ring offers precise manual control, while the standard 0.8 MOD gears for focus and aperture ensure compatibility with professional follow focus and matte box systems. The minimum focusing distance of 0.61 m is significantly shorter than many other anamorphic lenses, providing greater flexibility for close-ups and detailed shots.

Weighing only 1.95 kg and with a front diameter of 95 mm, this lens is surprisingly compact and light for an anamorphic lens, making it ideal for drone setups or gimbals. The included PL mount can be easily replaced with the included EF mount, offering versatility for cameras such as the ARRI Alexa Mini, RED Komodo and Canon C500. The integrated back focus adjustment allows for precise adjustments without disassembling the lens, simplifying workflow on dynamic sets. The black and space grey metal design is not only aesthetically appealing but also robust, with an operating temperature range of -20°C to +45°C. The lens stands out for its wide angle of view, which captures more background detail, and its ability to compress space, creating an immersive viewing experience. An ideal choice for filmmakers who want their images to stand out.

Information on the EU General Product Safety Regulation (GPSR)

TSE Imaging BV

Argonweg 135, 1362 AD Almere NL

info@tse-imaging.nl

036-5346967

Features of the DZOFilm Pavo 2x anamorphic Prime 135mm T2.5 - Neutral Coating - PL&EF mount (meter)

  • Anamorphic cine lens for film and video production (Super 35)
  • Suitable for professional cinema shooting
  • Lens mount: PL / EF
  • Focal length: 135 mm
  • Minimum focus distance: 1.04 m (from sensor plane)
  • Minimum aperture: T22
  • Maximum aperture: T2.5
  • Aperture blades: 16
  • Fully manual focus with 270° focus rotation
  • Optical quality: 16 elements in 11 groups
  • Coating: neutral coating
  • Robust aluminium alloy housing
  • Filter size: 86 mm
  • Length: 160 mm (from lens front to flange)
  • Front diameter: 95 mm
  • Weight: approx. 1994 g

In the Box

  • 1x DZOFilm Pavo 2x anamorphic Prime 135mm T2.5 - Neutral Coating - PL&EF mount (metric)
Dimensions & Weight
Length (mm) 160.0 mm
Weight (g) 1990.0 g
Diameter (mm) 95.0 mm
General
Color Gray
Type of photography Cinema
Material & Protection
Material Metal
Focus & Stabilization
Autofocus
Focus throw (°) 300.0 °
Gear pitch 0.8 MOD
Internal zoom
Min. focusing distance (cm) 100.0 cm
Included Accessories
Box
User manual
Focal length (max) (mm) 135.0 mm
Focal length (min) (mm) 135.0 mm
Fast (f/2.8 or faster)
Max. aperture (f/) 2.5 f/
Oval bokeh
Squeeze factor 2.0x
T-stop (T) 2.5 T
Construction & Coating
Coating Multi-Coated
Filter diameter (mm) 86.0 mm
Lens construction (elements/groups) 16 elements in 11 groups
Compatibility
Full Frame
Lens mount PL-Mount
APS-C
Micro Four Thirds
Medium Format
