Hikmicro Mini X Thermal Imaging Riflescope

Article number:

12574747

Hikmicro Mini X Thermal Imaging Riflescope
Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
  • Hikmicro Mini X Thermal Imaging Riflescope
£316,-
Available again soon
Hikmicro Mini X Thermal Imaging Riflescope
Hikmicro Mini X Thermal Imaging Riflescope
£316,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.36 by 34,071 photographers

    Your photo and video specialist since 1995
The Hikmicro Mini X Thermal Imaging Sight is a wireless thermal imaging camera with dual camera, sharp focus from close range to distance. Stable wireless connection, broad compatibility. The Hikmicro Mini-X thermal imaging camera can be connected to Android/iOS devices, you don't need to replace it when you switch phones.

Hikmicro Mini X Warmtebeeldrichtkijker

Thermal imaging camera with dual camera. The high-resolution infrared and visual cameras reveal hidden details with 5 image modes and 8 color palettes. Enhanced image quality with SuperIR. The Hikmicro Mini-X features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, together with optimized image enhancement algorithms for clear thermal images.

Adjustable focus lens. Sharp focus from close up to far away with an adjustable 3.5mm focus lens for precise detail in PCB repair, inspections, and tracking. Simple and stable wireless connection. Simply scan a QR code with the Mini-X thermal camera for a quick wireless connection and enjoy stable image transmission.

Compact, ergonomic, and versatile to mount. The Hikmicro Mini-X has a portable, ergonomic design with four mounting options: magnetic, wall mount, tripod, and clip, making it flexible for any task. Long battery life. Enjoy up to 4 hours of continuous use with the built-in rechargeable Li-ion battery.

Hikmicro ANALYZER. The online preview function of the Hikmicro Analyzer is particularly valuable, as it provides real-time access to thermal image data, significantly increasing efficiency.

Hikmicro VIEWER. With the Hikmicro Viewer app, you can quickly generate reports in the field, adjust job site data, change measurement settings, add annotations, and share them with clients or managers.

Features of the Hikmicro Mini X Thermal Imaging Riflescope

  • IR resolution: 256 x 192 (49,152 pixels)
  • NETD: < 40 mK (@ 25°C, F#=1.0)
  • Frame rate: 25 Hz
  • Detector pitch: 12 μm
  • Spectral range: 7.5 to 14 μm
  • Focal length: 3.6mm
  • F-number: F1.0
  • Field of view (FOV): 37.2° x 50.0°
  • Instantaneous field of view (IFOV): 3.33 mrad
  • Focus mode: Manual focus
  • SuperIR: Yes, on captured images and live view
  • Minimum focus distance: 0.05 m
  • Visual camera: 640 x 480 (0.3 MP)
  • Image modes: Thermal/Visual/Fusion/PIP/Blending
  • Color palettes: White hot, Black hot, Rainbow, Iron bow, Red hot, Fusion, Rain, Red blue
  • Object temperature range: Range -20° to 120° / Range 100° to 550°
  • Accuracy: Max. (±2°C, ±2%), for an ambient temperature of 15°C to 35°C and an object temperature of 15°C to 35°C, above 0°C
  • Measurement tools: Center point, hot spot, cold spot / User definable: 3 points, 3 rectangles, and 1 line
  • Level and span mode: Automatic/Manual
  • Video file format: MP4 video (25 Hz), saved in the Hikmicro Viewer app
  • Image file format: Radiometric JPEG, saved in the Hikmicro Viewer app
  • Radiometric infrared video streaming (compressed): Via UVC (5 Hz)
  • Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
  • USB interface: USB Type-C
  • Battery type: Rechargeable Li-ion battery
  • Battery life: Approximately 4 hours
  • Battery charging time: Supports fast charging. Charges to 50% capacity in 30 minutes, 85% in 1 hour, and 100% in 2 hours
  • Power saving mode: Automatic shutdown
  • Protection level: IP54
  • Drop height: 1 m
  • Operating temperature range: -10°C to 50°C
  • Storage temperature range: -20°C to 70°C
  • Relative humidity: < 95% non-condensing
  • Power: USB-C (5V/2A)
  • Battery indicator: Yes, shows battery level and charging status

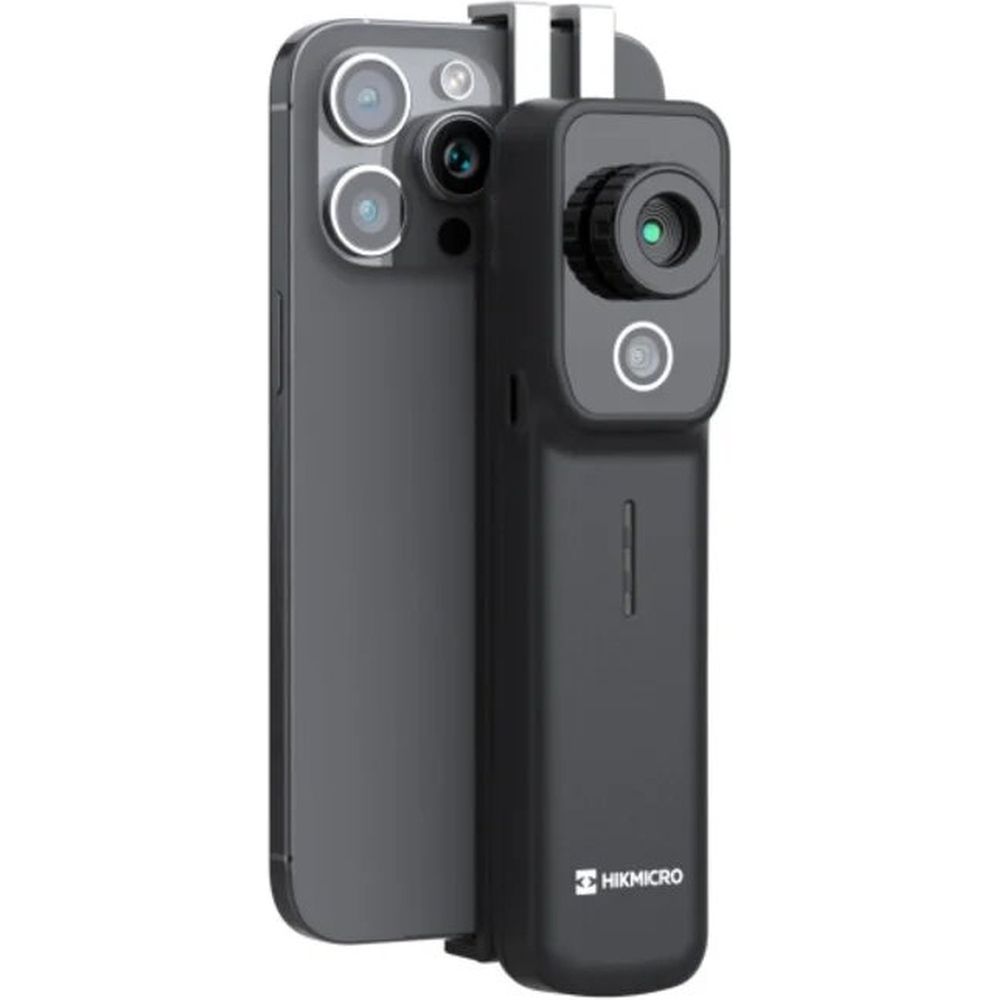

  • Installation method: Attachment to phone or tablet, magnetic wall mount, or tripod mount
  • Software compatibility: Hikmicro Viewer app for iOS and Android, Hikmicro Analyzer software for Windows
  • Device compatibility: iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices
  • Dimensions: 155.45 x 38.89 x 32.15mm
  • Weight: Approx. 158 grams

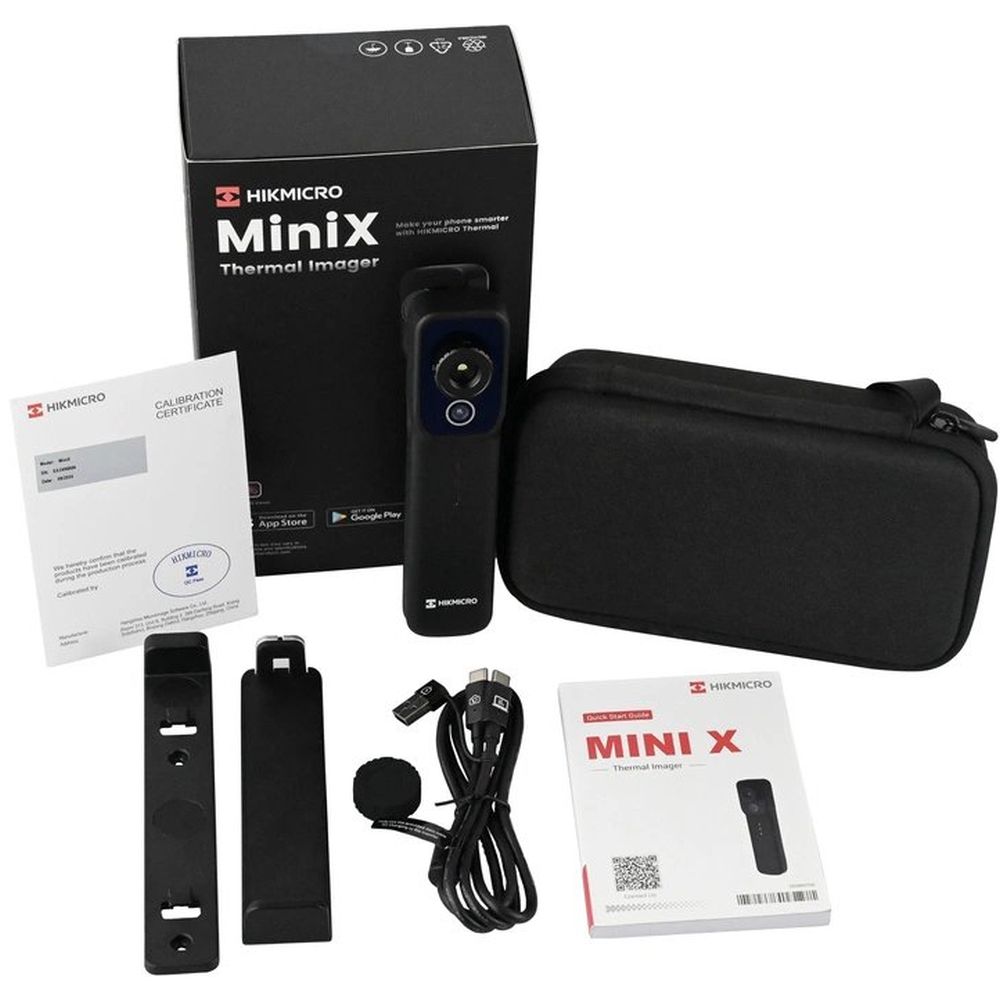

In the Box

  • Hikmicro Mini X Thermal Imaging Camera
  • Mounting bracket
  • Smartphone holder
  • USB cable
  • Case
  • Quick start guide
Dimensions & Weight
Length (mm) 155.45 mm
Weight (g) 158.0 g
General
Type Thermal
Display & Viewing
Refresh rate (Hz) 25.0 Hz
Lens (mm) (mm) 3.5 mm
NETD (mK) 40.0 mK
Sensor
Sensor resolution (thermal) 256x192
