Magewell USB Capture SDI 4K Pro

Article number:

12542487

Magewell USB Capture SDI 4K Pro
Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
  • Magewell USB Capture SDI 4K Pro
List price £641,-
£550,-
Available again soon
Magewell USB Capture SDI 4K Pro
Magewell USB Capture SDI 4K Pro
£550,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,338 photographers

    Not happy? 14-day return period
The Magewell USB Capture SDI 4K Pro connects to your computer via a USB-C 3.2 interface, enabling high-quality video recording with resolution up to DCI 4K at 60 fps, depending on your system's capabilities.

Magewell USB Capture SDI 4K Pro

The Magewell USB Capture SDI 4K Pro connects to your computer via a USB-C 3.2 interface, enabling high-quality video capture at resolutions up to DCI 4K at 60 fps, depending on your system's capabilities. Designed for professional workflows, the device features a 12G-SDI input for capturing video from broadcast cameras, switchers and other SDI sources. It supports embedded SDI audio and includes a 3.5mm input/output for recording external audio or extracting audio from SDI signals. Compatible with Windows, Mac, Linux and Chrome OS platforms, it requires no driver installation.

Please note: Use only the supplied Magewell USB cable, as it has been specifically designed for this device. Using other cables may cause capture issues or even damage the device.

Information on the EU General Product Safety Regulation (GPSR)

Streaming Valley B.V

Morsestraat 6, 6716 AH Ede Nederland

info@streamingvalley.com

+31 317 210 310

Features of the Magewell USB Capture SDI 4K Pro

  • Capture SDI + embedded audio

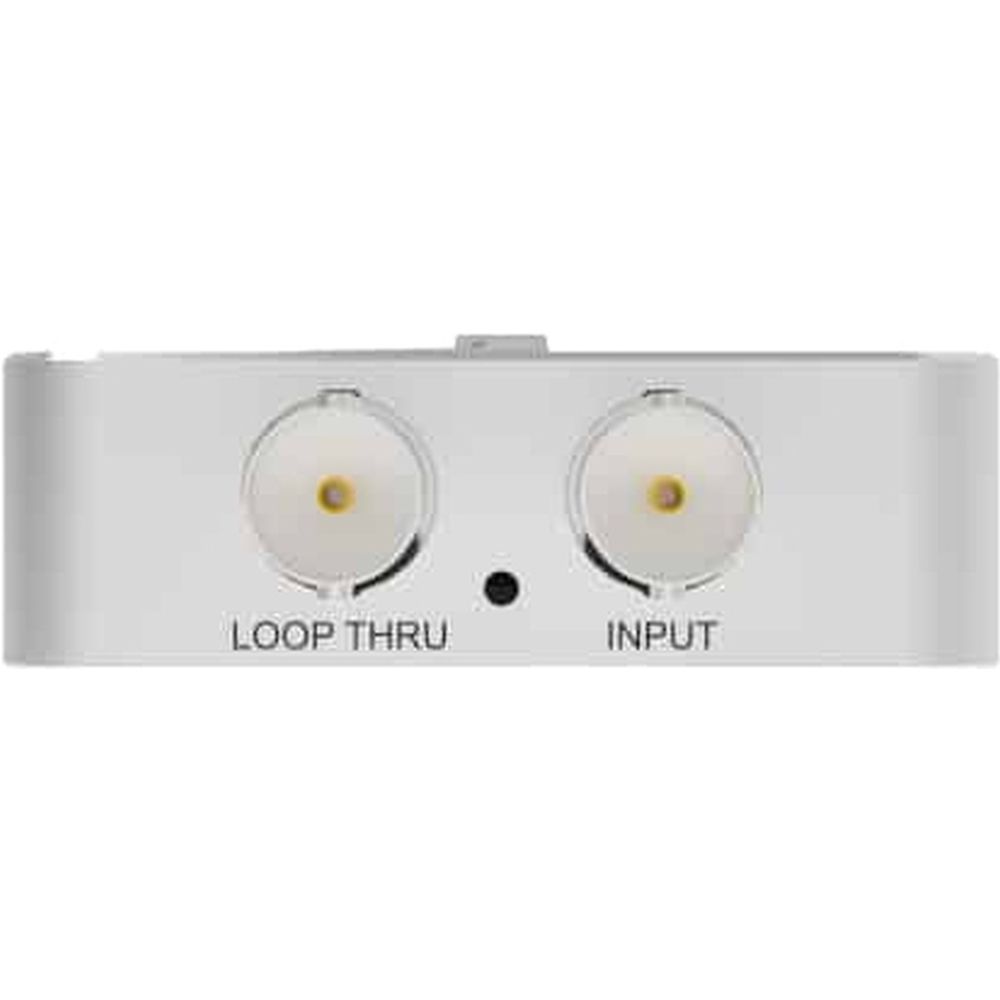

  • SDI loop-through signal

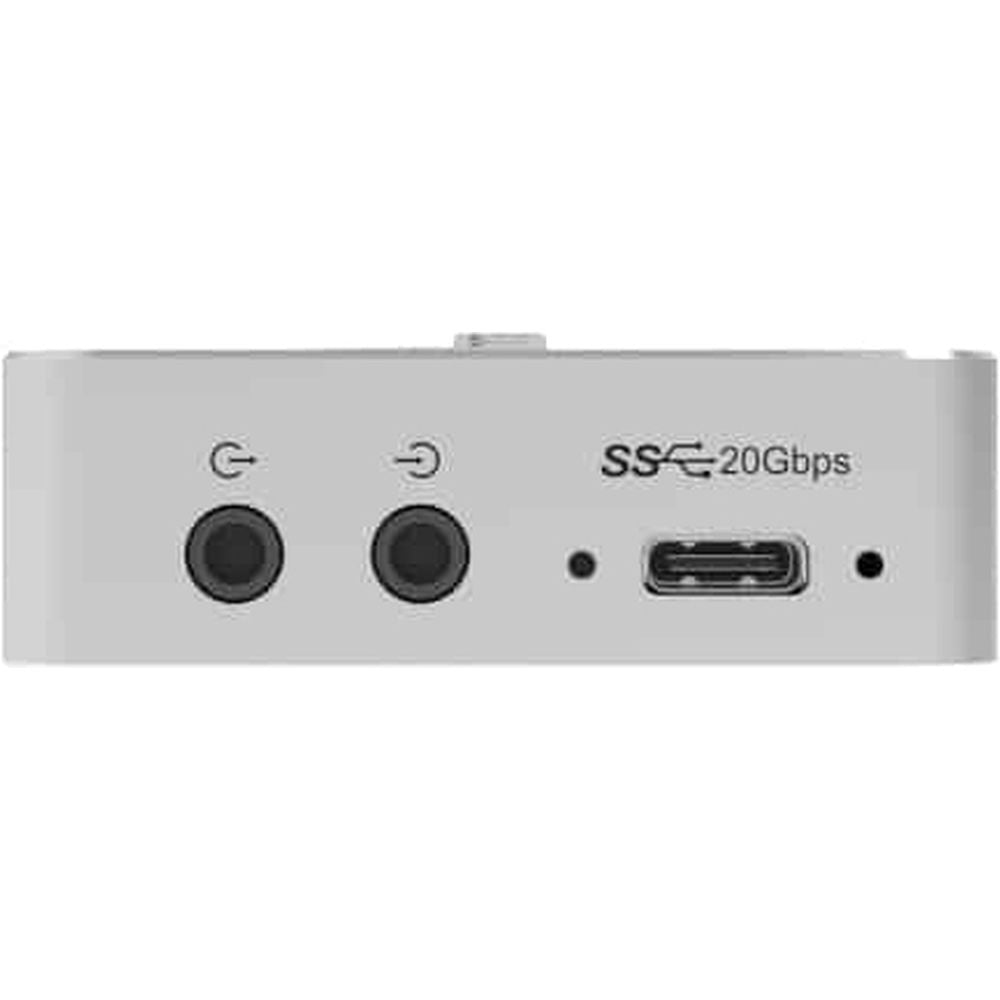

  • Audio input via Line In
  • Extract SDI embedded audio and output via Line Out
  • 12G-SDI input and loop-through connection (4096×2160 at 60 fps)
  • Supports up to 12G-SDI for full DCI-4K capture with zero-latency monitoring
  • Supports video formats up to 240 fps; standard capture at 4K60, with higher frame rate capture when bandwidth permits
  • Processes RGB/YUV 4:4:4 (8/10/12-bit), YUV 4:2:2 12-bit, YUV 4:2:0 (8/10/12-bit) and outputs formats such as P010, NV12, I420, YUY2, UYVY, RGB24/32
  • SDI supports up to 8 mono channels at 24-bit/192 kHz; analogue audio in/out via 3.5 mm connector supports dual-channel IEC60958 streams
  • Built-in pipeline of ~700 megapixel/s enables scaling, de-interlacing, format conversion and colour space adjustments with minimal CPU load
  • Driver-free plug-and-play – UVC-compatible; automatically detects input format and works without drivers on Windows, macOS, Linux and ChromeOS
  • Requires USB-C connection of ~20 Gbps for 4K60/4:2:2 capture with full bandwidth, but is backwards compatible with USB 3.1/3.0
  • No external power required; a single USB cable provides power and data, with consumption of ~4.3 W
  • Comprehensive software support – includes USB Capture Utility plus SDKs (DirectShow, V4L2, AVFoundation, etc.), and works with OBS, VLC, vMix, Zoom, etc.
  • Dimensions: 110.6 x 56.8 x 18 mm

In the Box

  • 1x Magewell USB Capture SDI 4K Pro
  • 1x USB cable
Connections & Connectivity
Inputs SDI
SDI input
SDI output
Dimensions & Weight
Length (mm) 110.6 mm
Width (mm) 56.8 mm
Height (mm) 18.0 mm
General
Type Capture card
Recording & Codecs
Max. resolution 4K
Power
Mains
