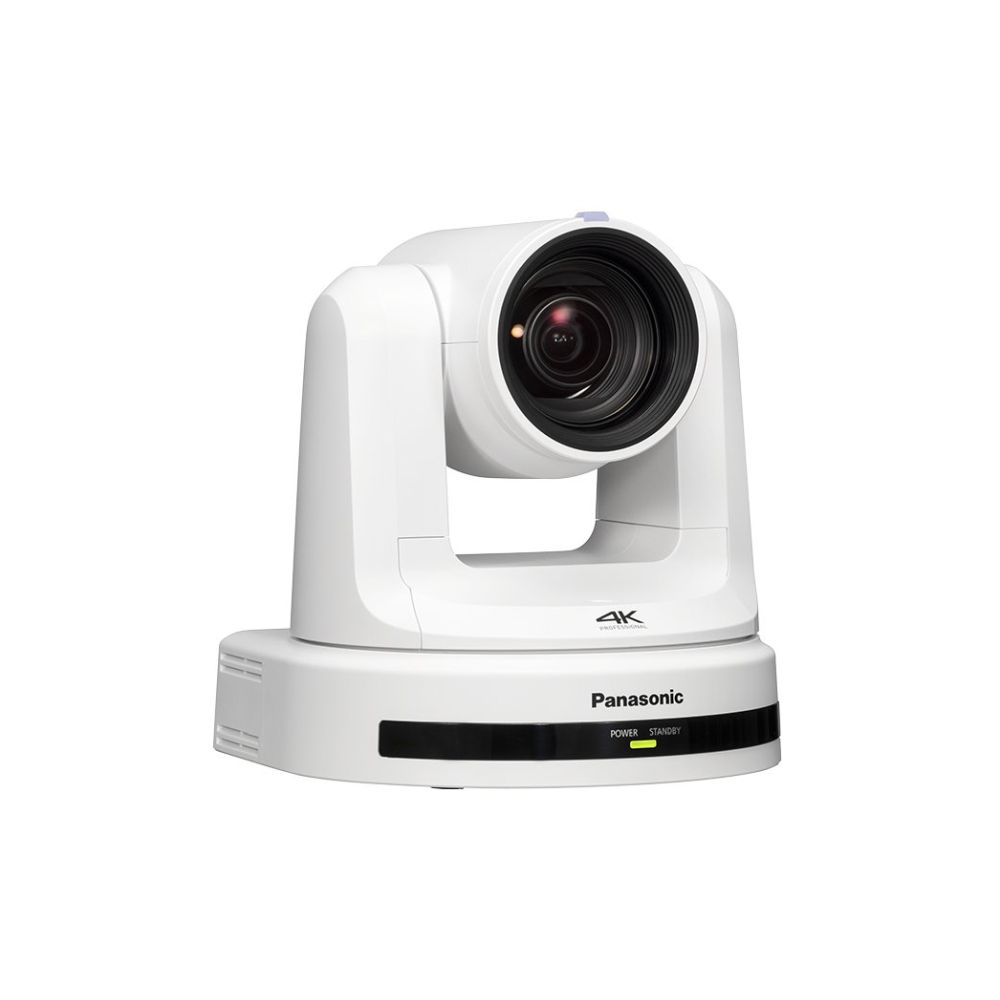

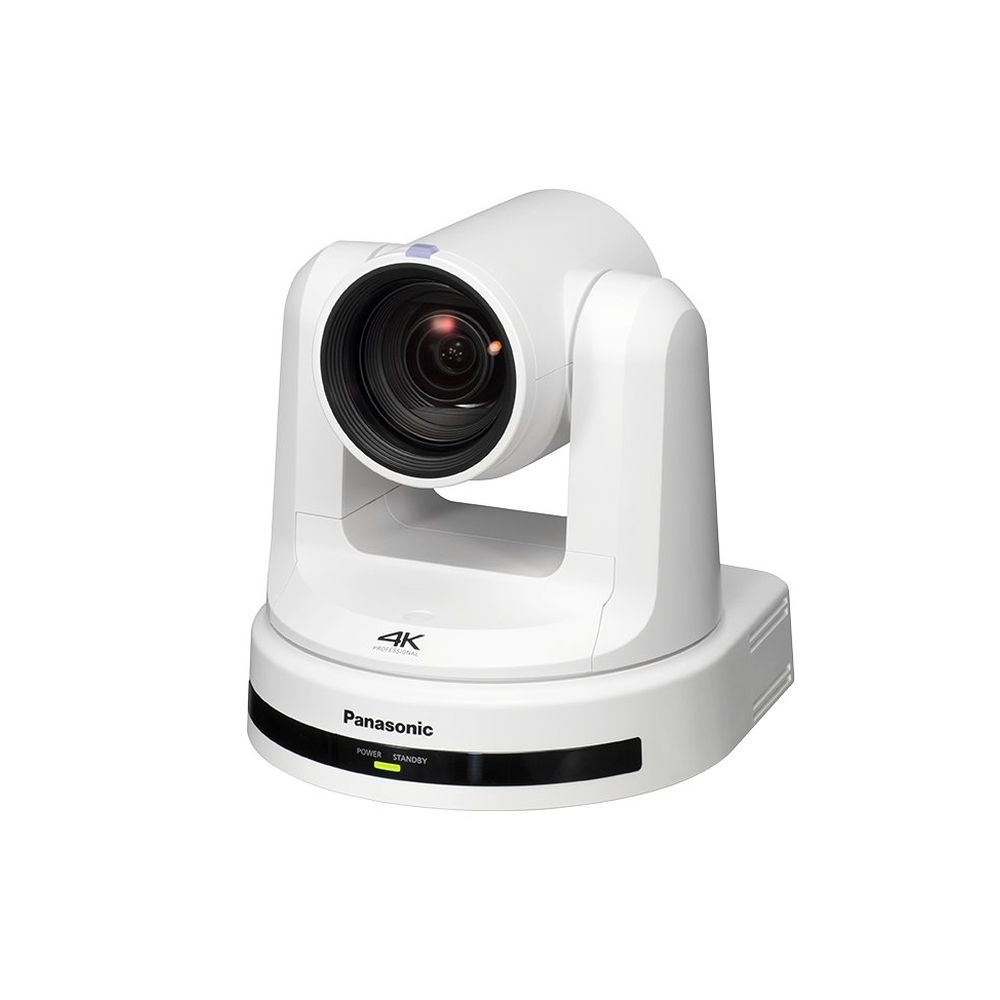

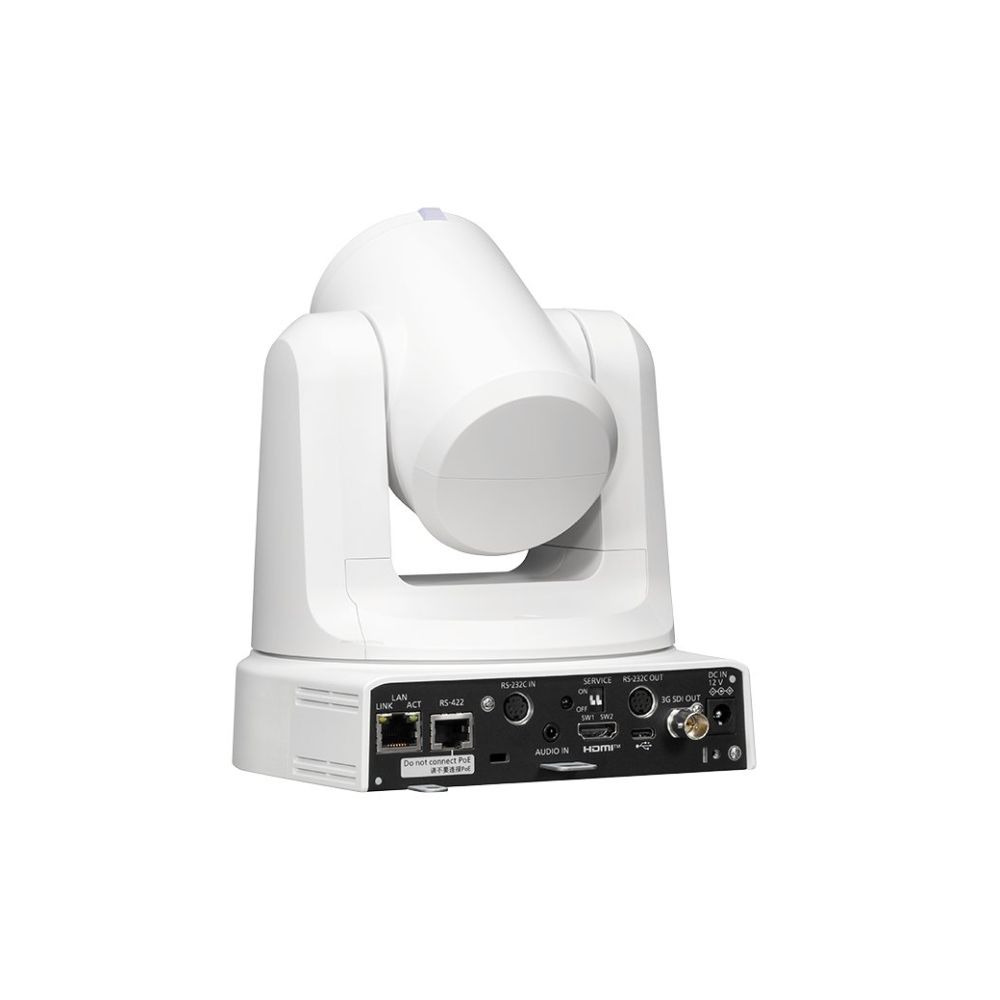

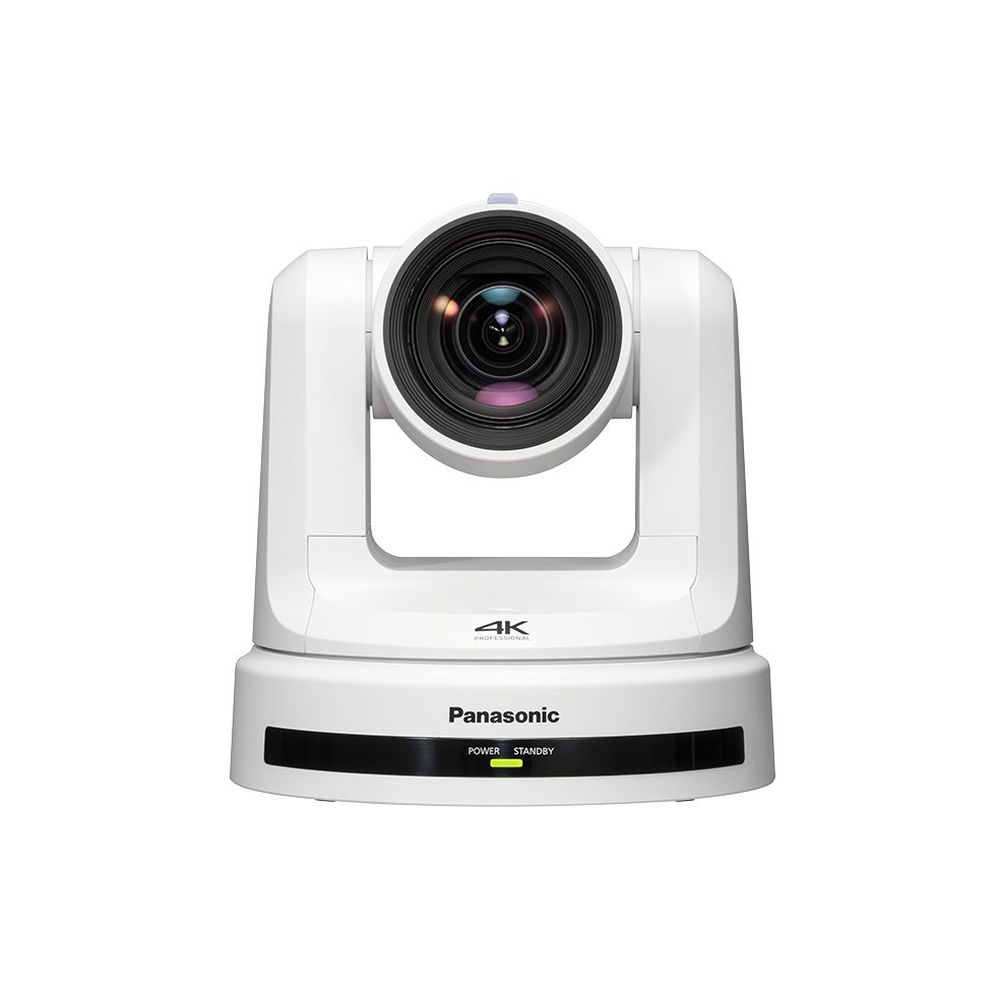

Panasonic AW-UE20WE white 4K PTZ camera

Panasonic AW-UE20WE white 4K PTZ camera

The Panasonic AW-UE20WE white 4K PTZ camera is a 4K PTZ camera with simultaneous 3G-SDI, HDMI and USB output. Its redesigned compact body makes the AW-UE20 easy to handle and install in any environment, especially when the camera is attached to a truss, ceiling or wall mounts for classrooms and meeting rooms.

The AW-UE20 is designed to support the following markets:

• Events being streamed live
• Higher education
• Corporate installations

The AW-UE20 also offers PoE+ support for camera power, control and video transmission over a single cable. When using the PTZ Virtual USB driver and with a LAN connection, it is possible to get video and audio from the AW-UE20 in the same way as a USB camera. This also ensures connectivity with video platforms such as Panopto.

The AW-UE20 features a new 1/2.8-type 4K MOS sensor that produces stunning UHD video. The AW-HE20 supports 3G SDI, HDMI and IP, making it an ideal option for use within existing workflows thanks to its simultaneous video output feature.

The AW-UE20 introduces a new wide-angle lens with a 71° field of view and 12x optical zoom, allowing a large area to be recorded from a limited installation space. This enables filming in meeting rooms and huddle spaces.

The AW-UE20 supports up to 4K 30p/25p video at 3840 x 2160 for professional and high-quality motion picture recording, as well as a wide range of output interfaces such as 3G-SDI, HDMI and IP - which can be activated simultaneously for HD and 4K workflows.

RTMP/RTMPS (Real-Time Messaging Protocol/Real-Time Messaging Protocol Secure) offers direct streaming to live broadcast services such as YouTube Live and Facebook Live from the camera.
