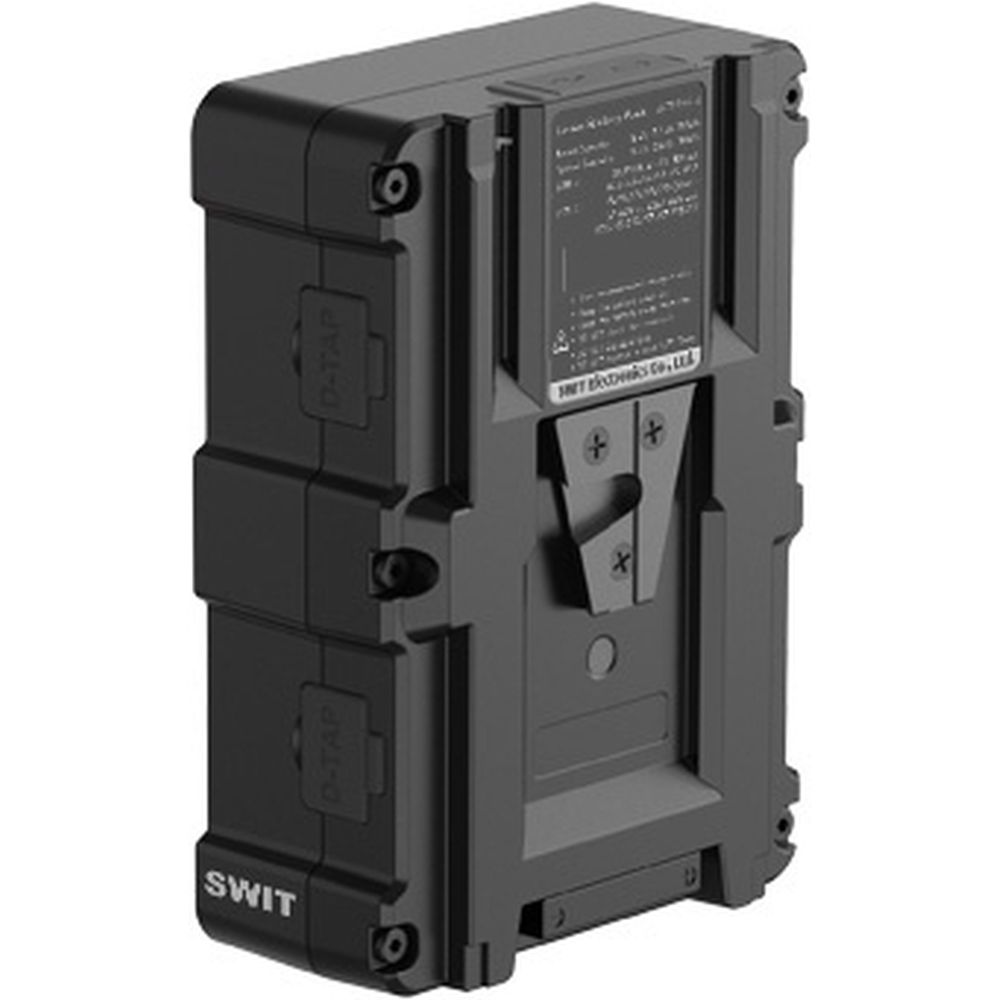

SWIT 200Wh 200W High Load V-mount Battery with USB-C

SWIT 200Wh 200W High Load V-mount Battery with USB-C

The SWIT 200Wh 200W High Load V-mount Battery with USB-C features high output power, 2x D-tap, 65W USB-C, an OLED display with power information, battery health inspection, and drop resistance up to 1.2 m — designed for professional cinematographers.

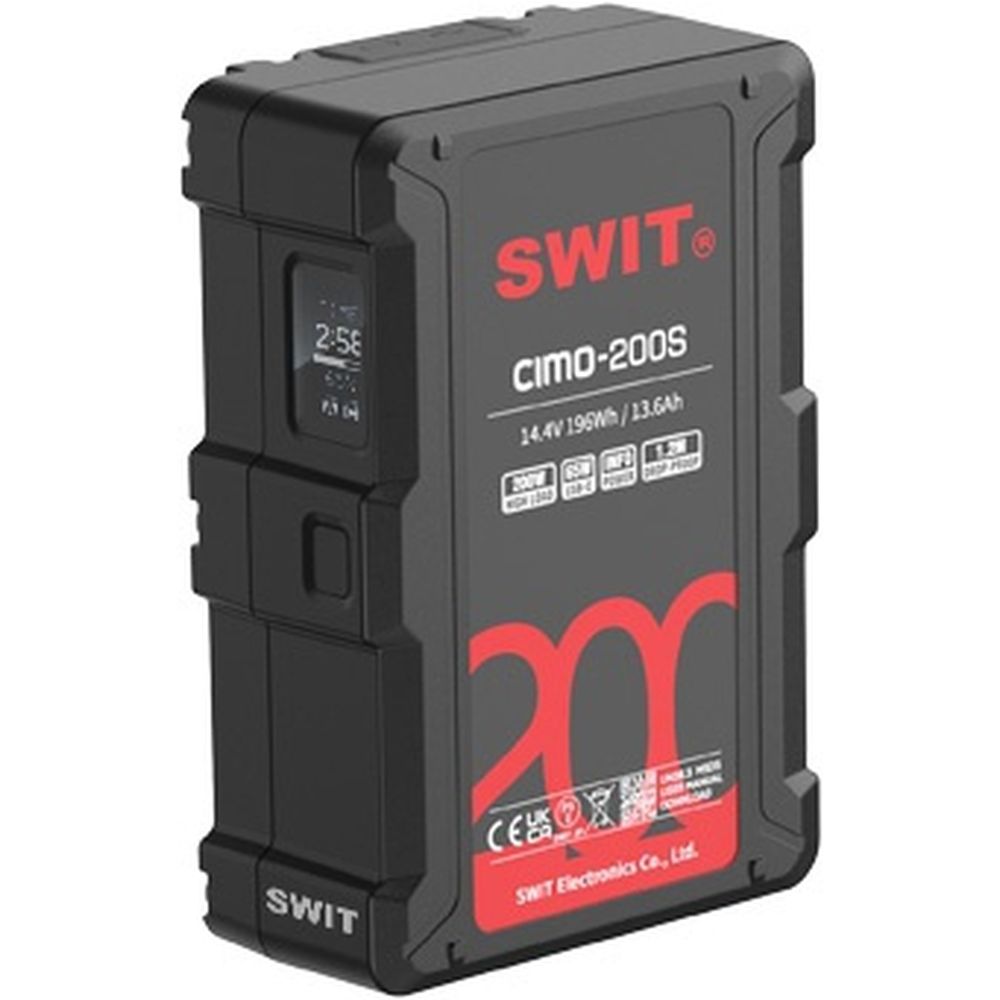

The CIMO-200S is built with 16 ternary lithium cells with a nominal voltage of 14.4V, a large capacity of 196Wh and 13.6Ah. Ternary lithium cells offer higher energy density, achieving greater capacity in a smaller form factor with excellent low-temperature performance, enabling power delivery in environments as cold as -20°C.

The CIMO-200S delivers a high output of at least 200W/16A, even at 1% capacity (peak load up to 270W), to power demanding cinema cameras and on-camera devices simultaneously. The high-load cells also ensure the battery outlasts standard-load batteries, even under prolonged full load.

The CIMO-200S supports fast charging at 100W/6A via SWIT PC-P461S / MATRIX-S8 / S-3812S chargers — twice as fast as standard charging. Fast charging at 6A does not affect the lifespan of ternary lithium cells. The 196Wh battery can be charged from 0 to 80% within 1.7 hours and fully charged within 2.75 hours.

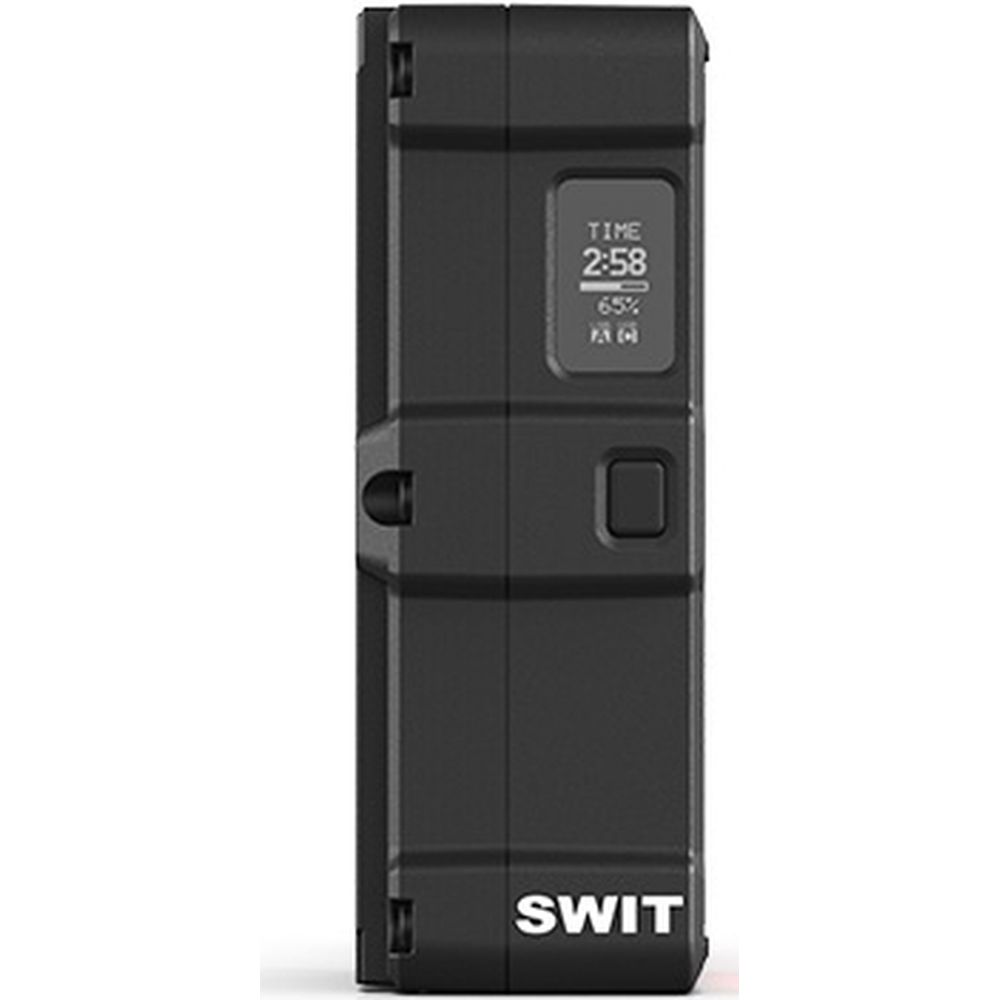

The CIMO-200S battery features an OLED display to show battery status and power information, including charge percentage and remaining runtime. Press and hold the power check button to display the battery cycle count and health level for battery management.

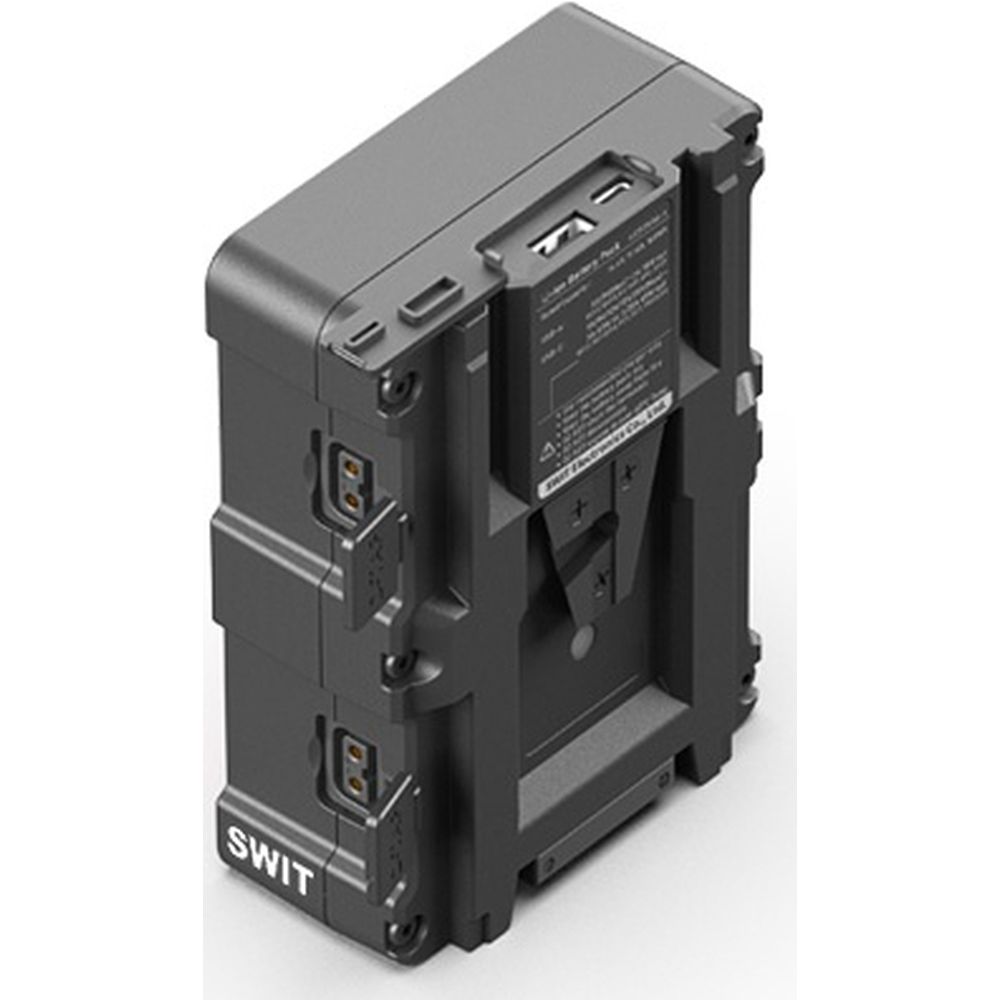

The CIMO-200S provides:

2x D-tap 200W total;

1x USB-A 5V/9V 2A output;

1x USB-C 60W input and 65W output

for a range of on-camera devices.

The USB-C port of the CIMO-200S delivers 5V/9V/12V/15V 3A, 20V (max.) 3.25A, 65W high power for laptops and various smart devices, with universally compatible BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 protocols.

The battery can also be charged using a separately available USB-C charger with a PD2.0/3.0 output of ≥60W and is fully charged within 4.5 hours. *(\*Please note that USB-C chargers with a low output of <60W are unable to charge this battery.)*

LED torch

Double-press the Power Check button to activate the LED torch on the rear of the battery. This makes it easy to locate the V-mount plate in a dark production environment. Double-press the Power Check button again to switch the torch off. It will switch off automatically after 60 seconds.

CIMO-series batteries feature a dual-shell housing and are resistant to drops from 1.2 metres at any angle — robust and reliable for filmmakers.
