SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery

Article number:

12577169

SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
  • SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
  • SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
  • SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
  • SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
List price £54,-
£47,-
On order
SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
£47,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,382 photographers

    Not happy? 14-day return period

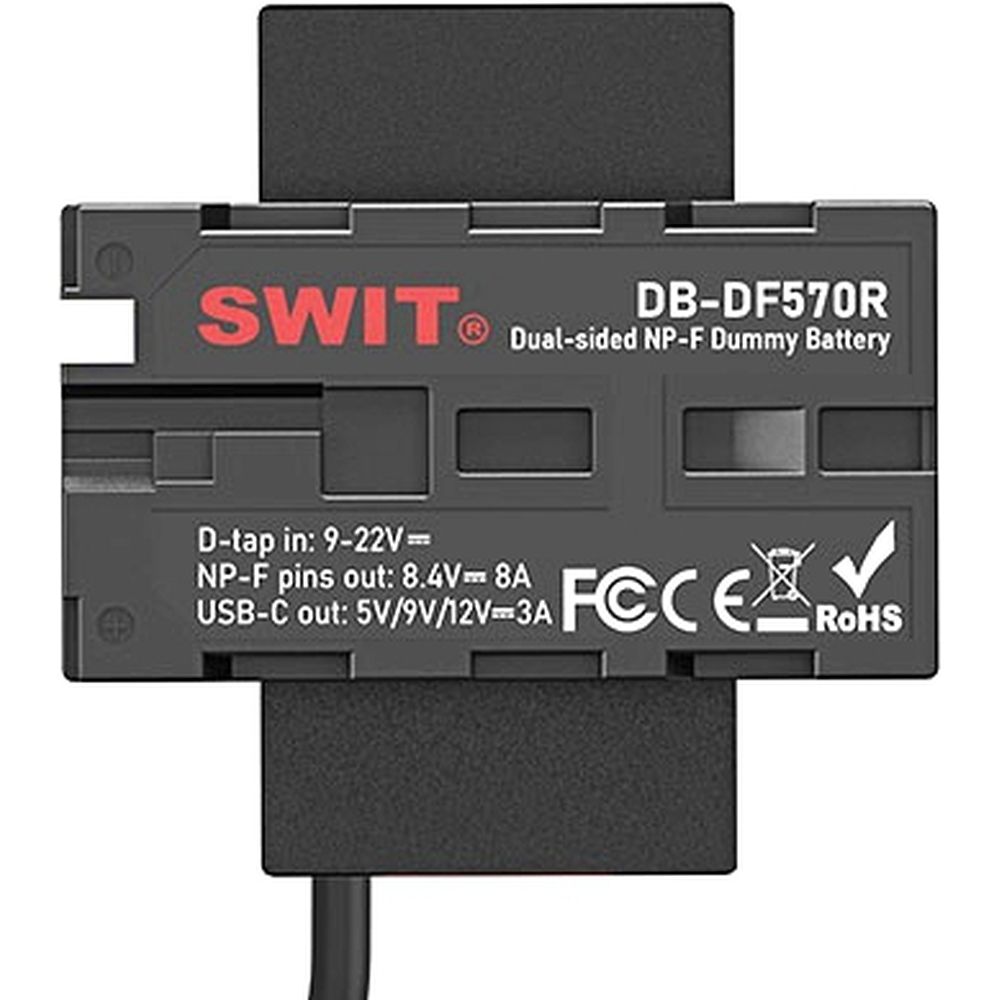

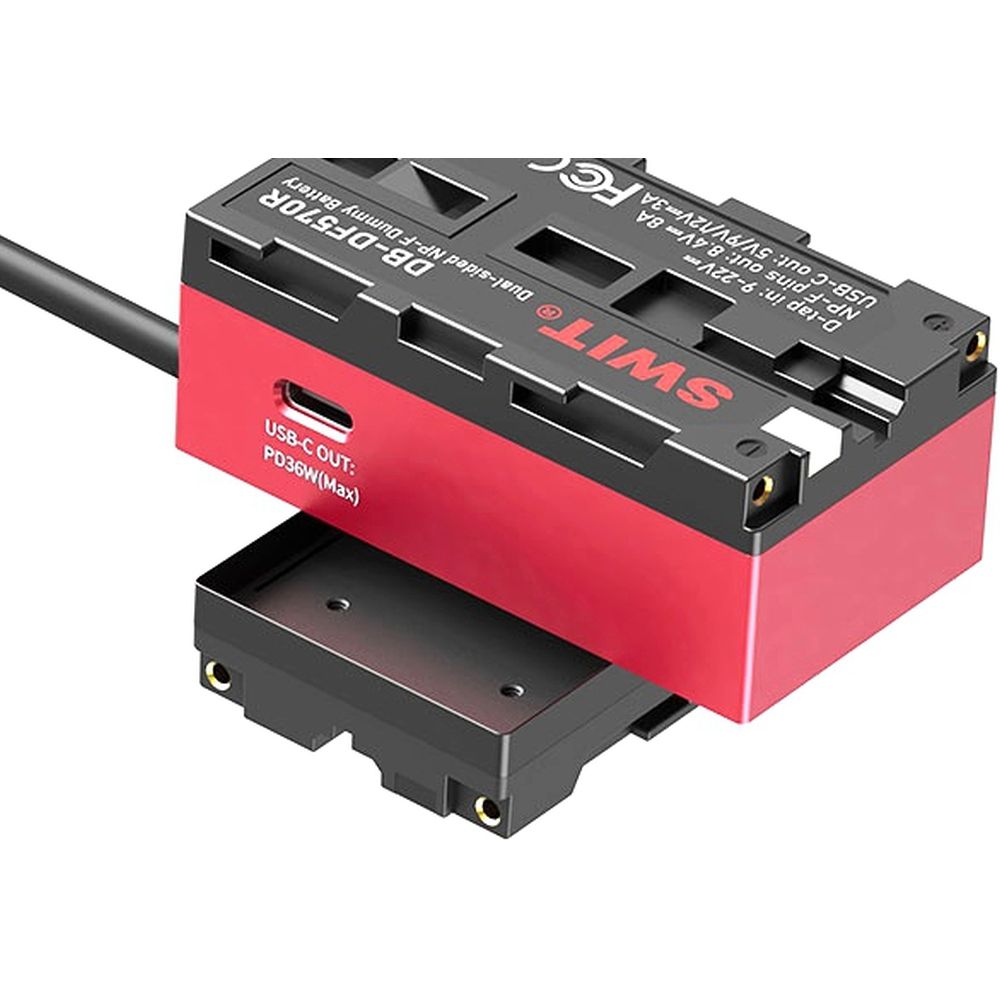

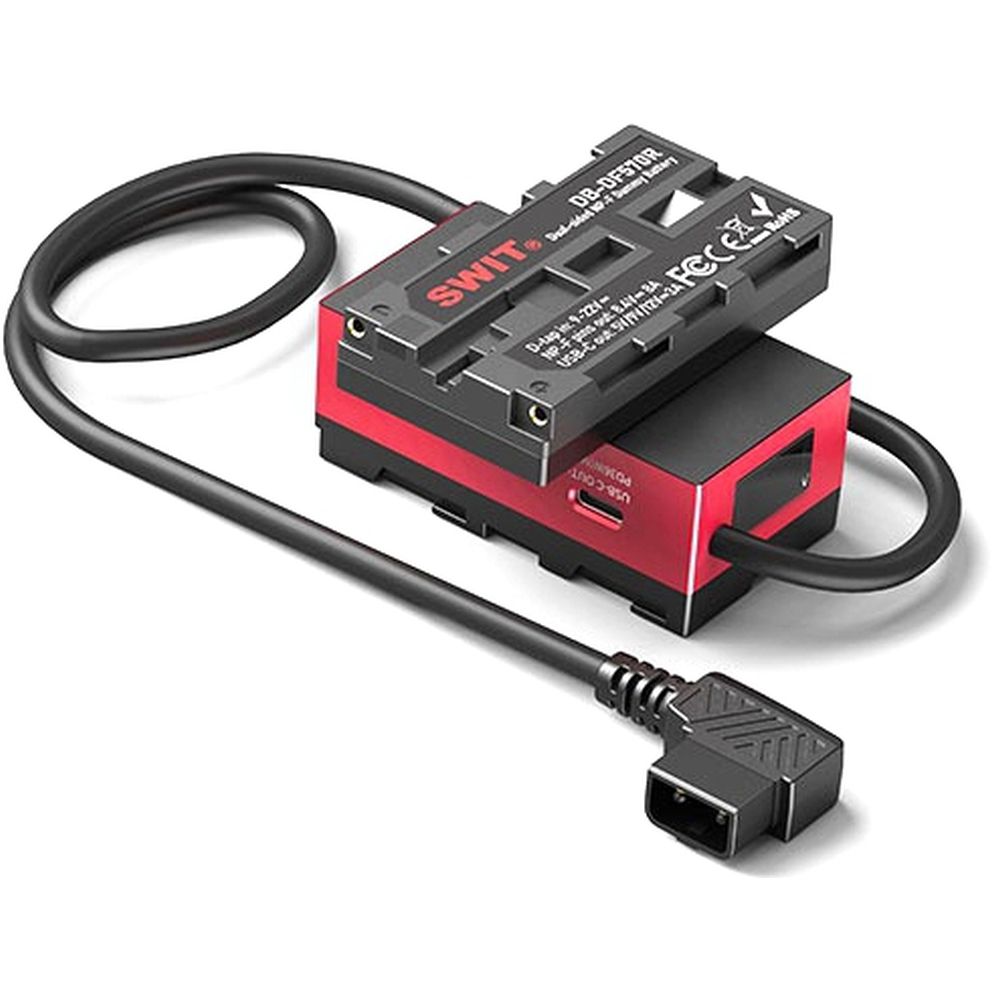

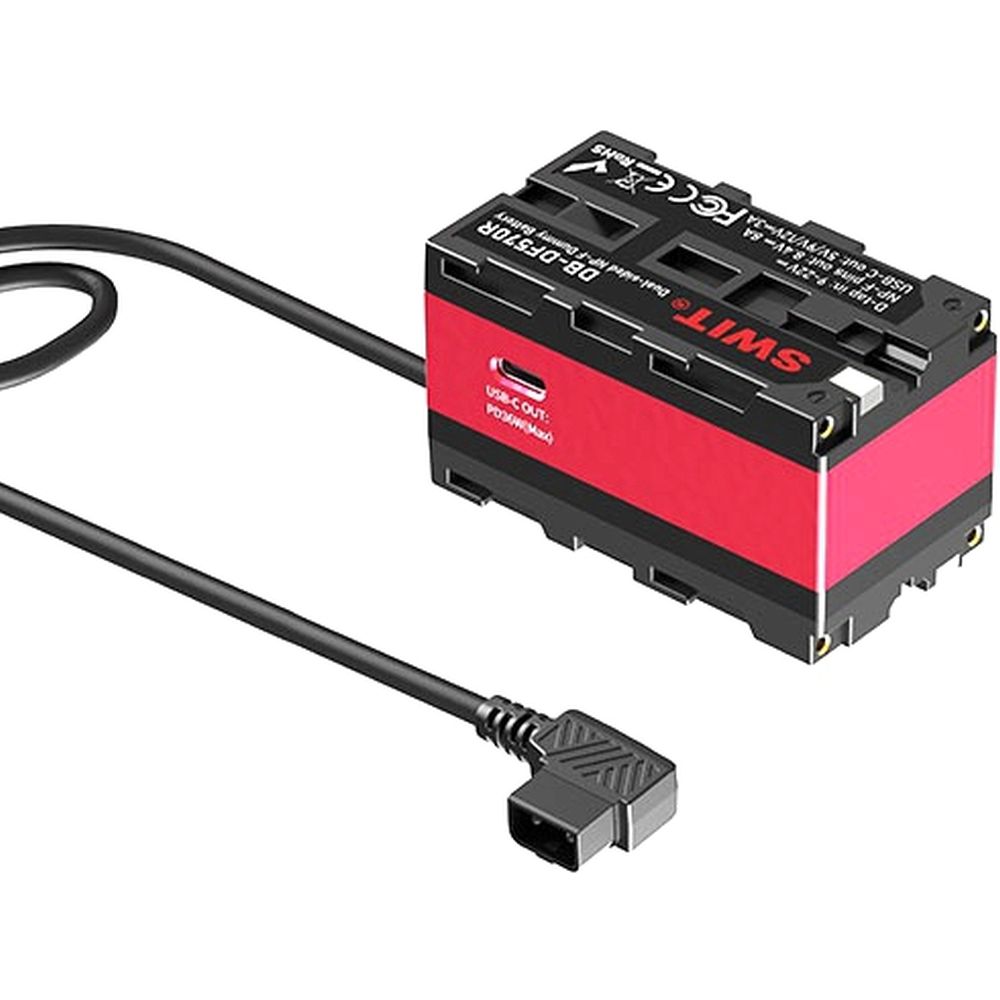

The SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery is a dual-sided NP-F dummy battery adapter with an innovative, 270° rotatable design. This versatile solution is specially designed for video equipment with different NP-F mount orientations, allowing two devices to be connected at any angle whilst simultaneously being powered via D-tap.

SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery

The DB-DF570R dummy battery supports a D-tap power input of 9–18V and converts it to a regulated 8.4V dummy battery output via two NP-F pins. In addition, the adapter provides a USB-C PD output of 5V/9V/12V 3A.

The DB-DF570R features a 270° rotatable design, making it seamlessly compatible with both horizontal and vertical NP-F plate orientations. Adjust the angle as needed for any configuration.

The LED display shows the current voltage of the D-tap input.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery

  • Dual-sided NP-F-type dummy battery
  • 270° rotatable for horizontal/vertical orientation
  • D-tap 9-22V power input
  • 2x NP-F pins 8.4V (regulated) output, 8A total
  • 1x USB-C PD 5V/9V/12V 36W output
  • LED indicator for input voltage
  • Cable length: 50 cm

In the Box

  • 1x SWIT DB-DF570R Rotatable Dual Side NP-F Dummy Battery
Connections & Connectivity
Outputs 2x NP-F pins + 1x USB-C
Dimensions & Weight
Length (mm) 120.0 mm
Weight (g) 170.0 g
Width (mm) 80.0 mm
Height (mm) 55.0 mm
General
Color Black
Power
Max. output (W) 67.2 W
USB‑C Power Delivery
