SWIT K21 21.5" professional HDR FHD Slim Monitor

Article number:

12546267

SWIT K21 21.5" Professional HDR FHD Slim Monitor

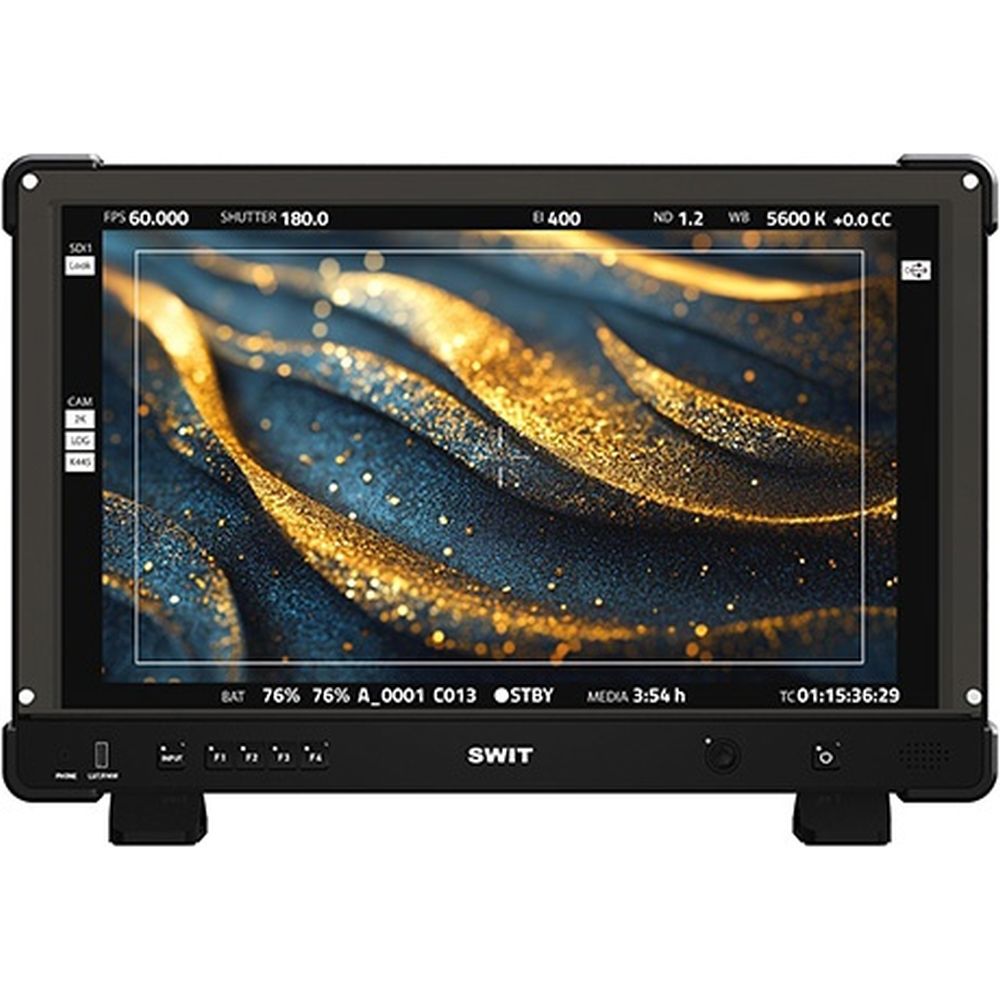

The SWIT K21 21.5" Professional HDR FHD Slim Monitor is a field monitor equipped with a brilliant 21.5-inch FHD 1500 cd/m² high-bright display. The monitor delivers a clear image even in direct sunlight. With a durable, fully aluminium housing, screen protection glass, and rubber covers on all 4 corners, the K21 offers comprehensive protection against the elements and impacts.

The K21 monitor features highly transparent screen protection glass — clear and robust. It is fitted with four non-removable screws for easy tool-free installation and removal.

The unique Scene OS operating system offers unrivalled customisation options and flexibility for on-set production monitoring. This system allows you to create up to 8 customisable scenes, and within each scene users can define 8 shortcuts to monitor tools, providing quick access to essential tools and fast scene transitions. This feature streamlines workflows and enhances the creative process by offering instant access to the most frequently used functions.

The K21 monitor includes a variety of Delog LUTs from camera manufacturers, including ARRI, RED, SONY, Canon, BMD, Panasonic, Nikon, and Fuji, and supports Gamma 2.2/2.4/2.6 SDR as well as HLG/PQ HDR. The monitor also supports uploading up to 10 User 3DLUTs via USB.

The K21 monitor supports fully automatic colour calibration without a computer connection. Simply connect the X-rite CC Display Pro HL Probe to the USB-C port on the rear of the monitor and launch the automatic 3DLUT colour calibration process via the menu — completed in just 2 minutes.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT K21 21.5" professional HDR FHD Slim Monitor

  • 21.5-inch 1920x1080 10-bit IPS panel
  • 1500 cd/m² bright sunlight
  • Rubber corners for impact protection
  • Quick-release protective glass
  • 2x interchangeable cheese plates
  • Includes C-stand mounting adapter
  • 2K/3G/HD/SD-SDI & 4K-HDMI monitoring
  • Built-in multi-camera delog loop SDR & HDR
  • Upload 10x user 3DLuts cubes via USB-A
  • Automatic 3DLuts calibration via USB-C
  • Scene OS - create 8 pages quick switch
  • 4x function buttons assigned to each scene
  • Anamorphic de-squeeze
  • Custom false colour / zebra values
  • Waveform / vectorscopes / Histogram
  • Peaking / Focus assist / Crosshatch / Safe area
  • SDI audio meters / Timecode display
  • AC / 4-pin XLR / V-mount battery power
  • AC input: AC 100-240V, 50/60Hz
  • DC input: 4-pin XLR & V-mount battery 11-17V 3A
  • Power consumption: ≤55W
  • Operating temperature: 0°C ~ +40°C
  • Operating humidity: 10% ~ 90%
  • Monitor dimensions: 531 x 345.7 x 92.7 mm
  • Monitor weight: 7.5 kg

In the Box

  • 1x SWIT K21 21.5" professional HDR FHD Slim Monitor
  • 1x Screen protector
  • 2x Cheese plate
  • 1x VESA to C-stand adapter
  • 1x Lens hood

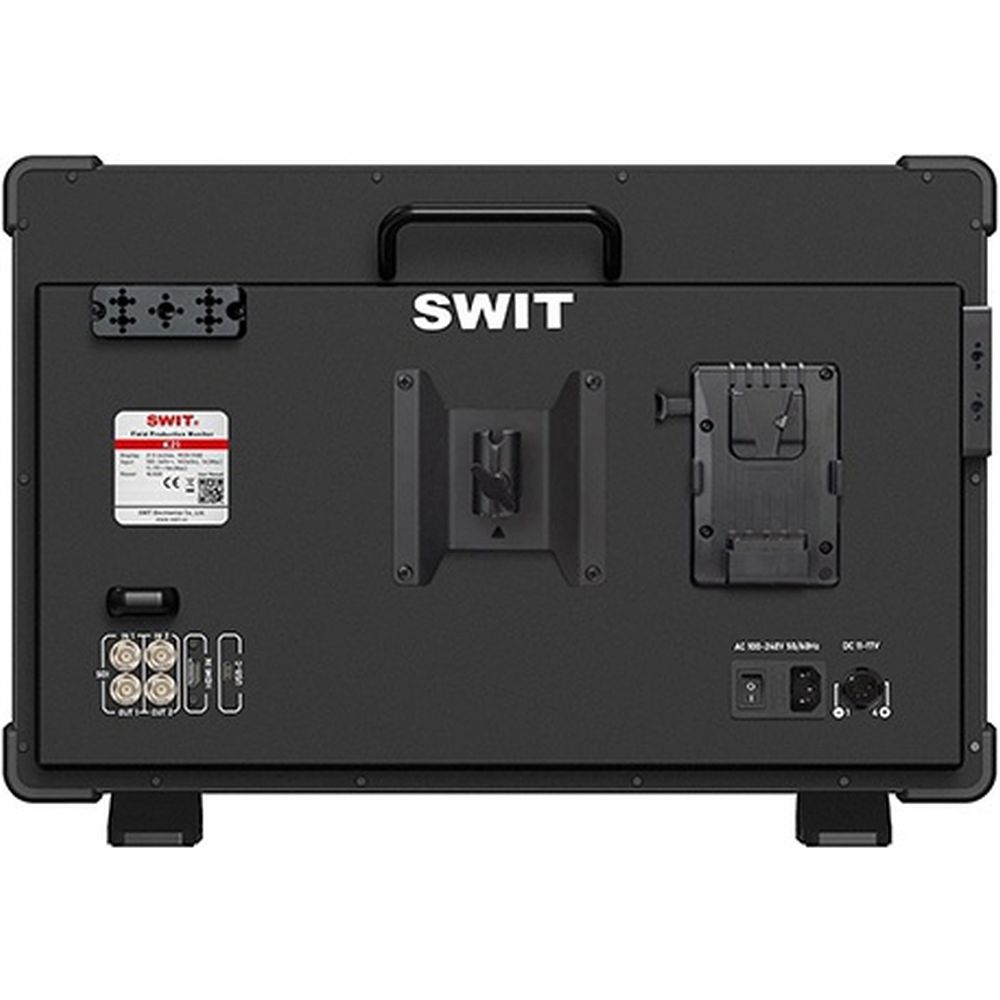

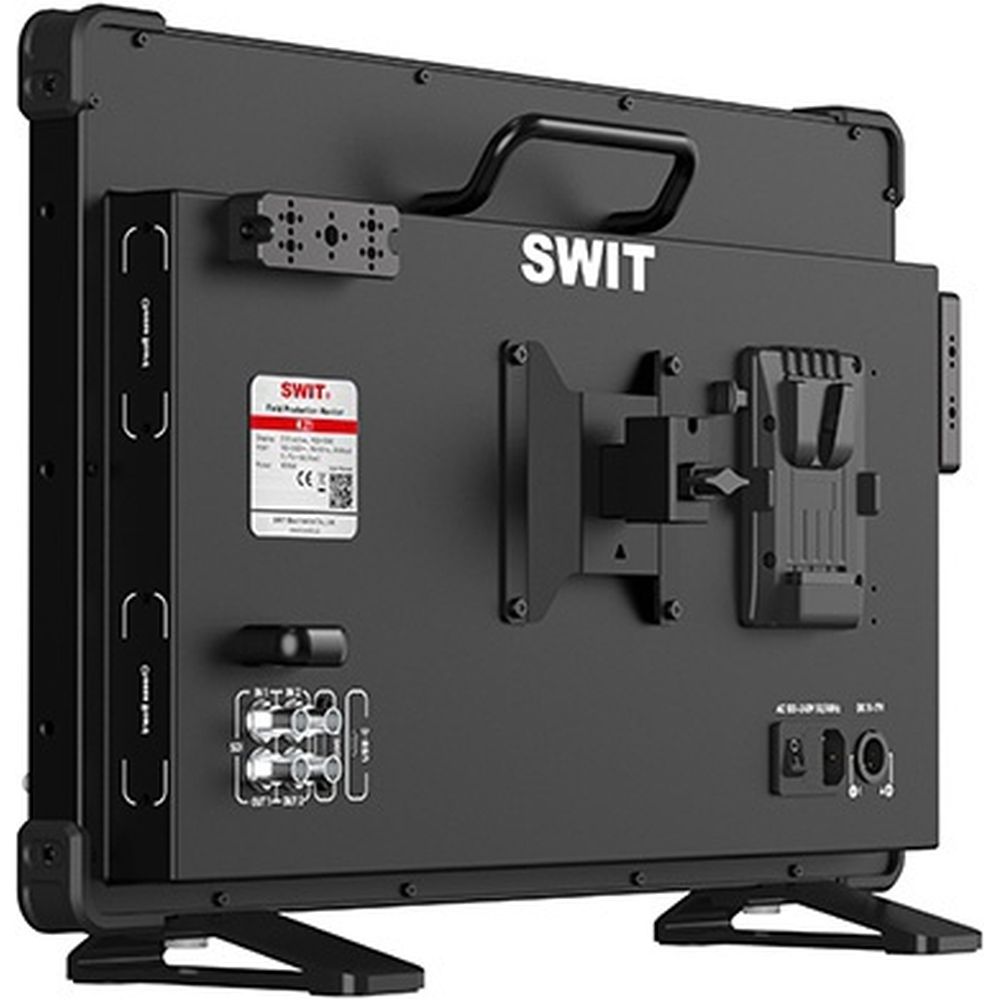

Connections & Connectivity
12G-SDI
HDMI version HDMI 1.4
Inputs 3G-SDI
SDI input
SDI output
Dimensions & Weight
Length (mm) 92.7 mm
Weight (g) 7500.0 g
Width (mm) 531.0 mm
Height (mm) 345.7 mm
General
Color Black
Display & Viewing
Cross conversion
Brightness (nits) 1500.0 nits
Screen size (in) 21.5 in
Scopes (waveform/vectorscope)
Touchscreen
HDR support
Recording & Codecs
HDR standards PQ
LUT support
Sensor
Resolution Full HD
Power
Mains
Battery
