SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount

Article number:

12565646

SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
  • SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
  • SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
  • SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
  • SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
List price £967,-
£541,-
On order
SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount
£541,-

Get notified

    Free delivery on orders over £100

    No hidden fees - price includes duty & taxes
    Rated 4.51 by 32,434 photographers

    Not happy? 14-day return period

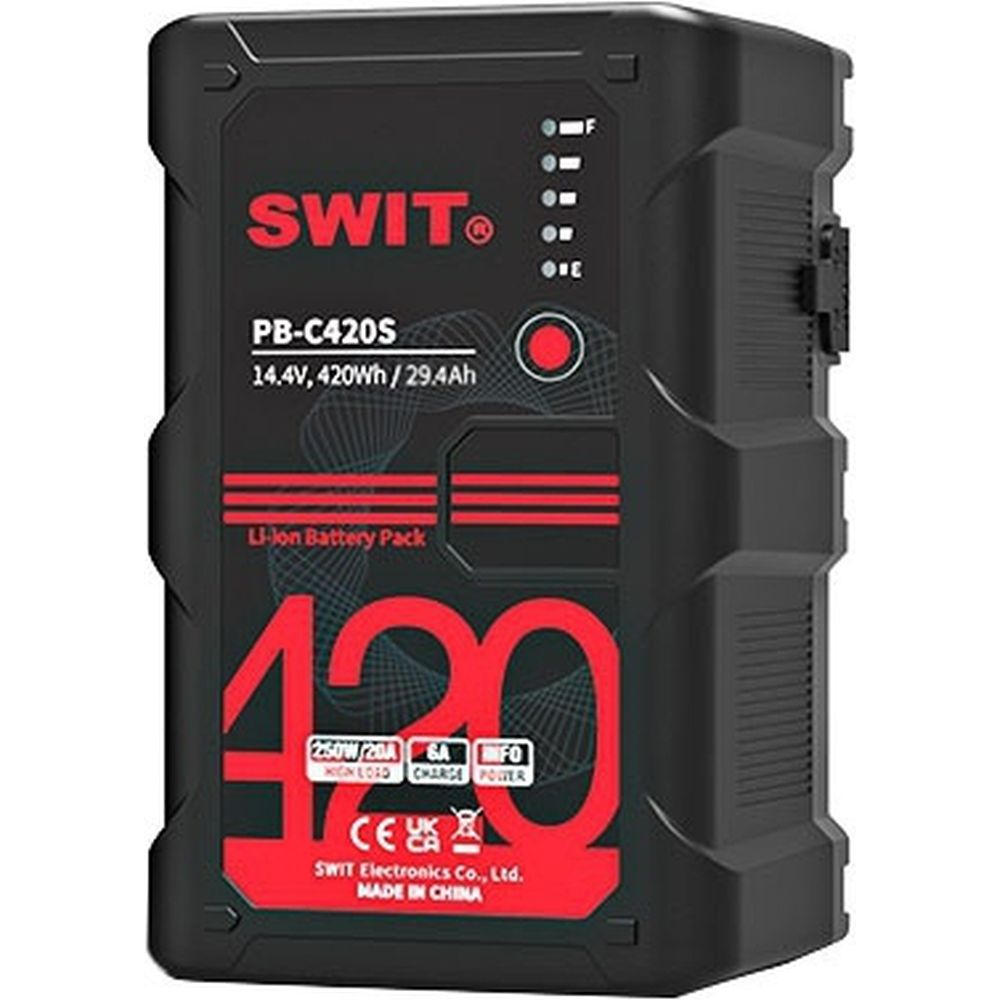

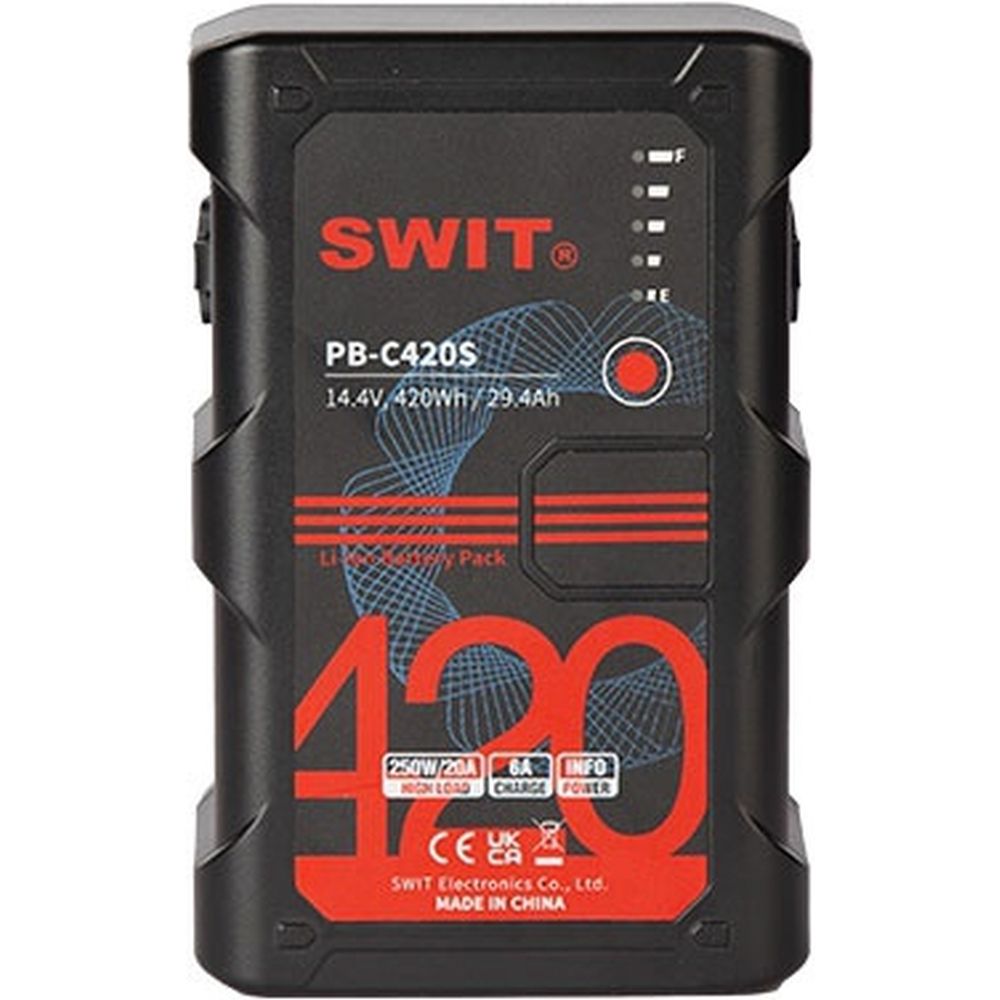

The SWIT PB-C420S 420Wh Heavy-duty Battery (V-Mount) boasts the world's largest capacity: 420 Wh in a portable V-mount battery, ideal for extended power supply to cameras, monitors, lighting and many other power-hungry devices in the broadcast and film industry.

SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount

The PB-C420S consists of 24 Li-ion cells, has a nominal voltage of 14.4 V, and a large capacity of 420 Wh (29.4 Ah). On the left and right sides, there are two D-tap connectors for on-camera devices. The PB-C420S delivers a minimum of 250 W/20 A under high load, even at 1% capacity (peak load up to 305 W), to power high-performance cinema cameras and on-camera devices simultaneously. The high-load cells also guarantee a longer battery lifespan compared to standard batteries under prolonged full load. Overcurrent protection: 24 A.

The PB-C420S supports 100 W/6 A fast charging, saving you more than 50% of charging time. The 420 Wh battery can be charged from 0 to 80% in 3.9 hours and is fully charged within 5.3 hours.

The internal controller of the PB-C420S features multiple protection circuits that detect abnormal conditions such as overload, overcharging, over-discharging, high temperatures, short circuits, and more, actively protecting your devices against potential safety issues.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT PB-C420S 420Wh Heavy-duty Battery, V-Mount

  • 14.4 V, 420 Wh/29.4 Ah high capacity
  • 250 W/20 A continuous power, 305 W peak power
  • Fast charging support (100 W/6 A)
  • 2x D-tap outlets, 150 W power
  • 5 LED digital battery indicators
  • Battery information display for Sony/RED viewfinder
  • Multiple circuit protections
  • Charging: DC 16.8 V, 6 A
  • Mount type: V-mount
  • Charging temperature: 0-40 °C
  • Discharging temperature: -20 °C-50 °C (capacity and maximum load may decrease when used below 0 °C)
  • Dimensions: 155 x 101 x 80 mm
  • Weight: 2.07 kg

In the Box

  • 1x SWIT PB-C420S 420Wh Heavy-duty Battery (V-Mount)
Connections & Connectivity
Outputs 2x D-Tap (150W)
Dimensions & Weight
Length (mm) 155.0 mm
Weight (g) 2070.0 g
Width (mm) 101.0 mm
Height (mm) 80.0 mm
General
Color Black
Max. current (A) 20.0 A
Power
Capacity (Wh) 420.0 Wh
Chemistry Li‑ion
D-Tap ports (Units) 2.0 Units
LED indicator
Max. output (W) 250.0 W
Charging via D‑Tap
Voltage (V) 14.4 V
USB‑C Power Delivery
