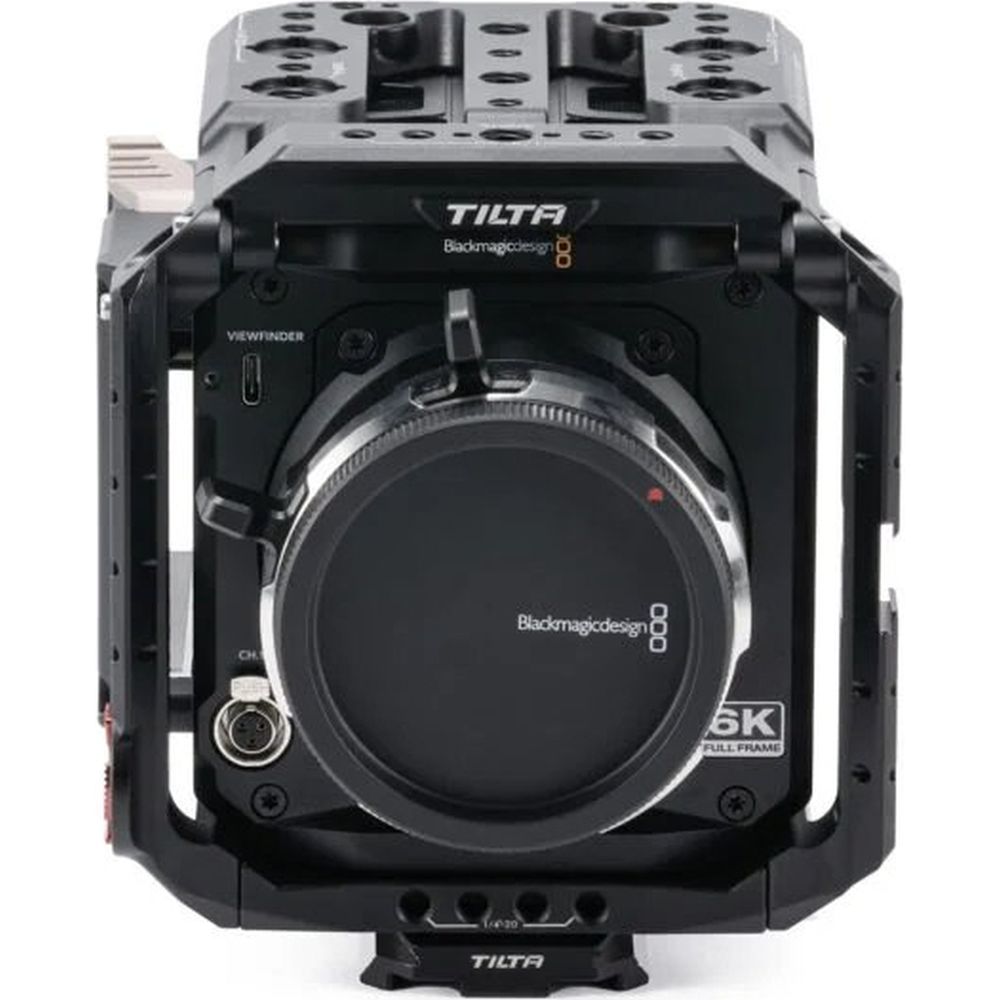

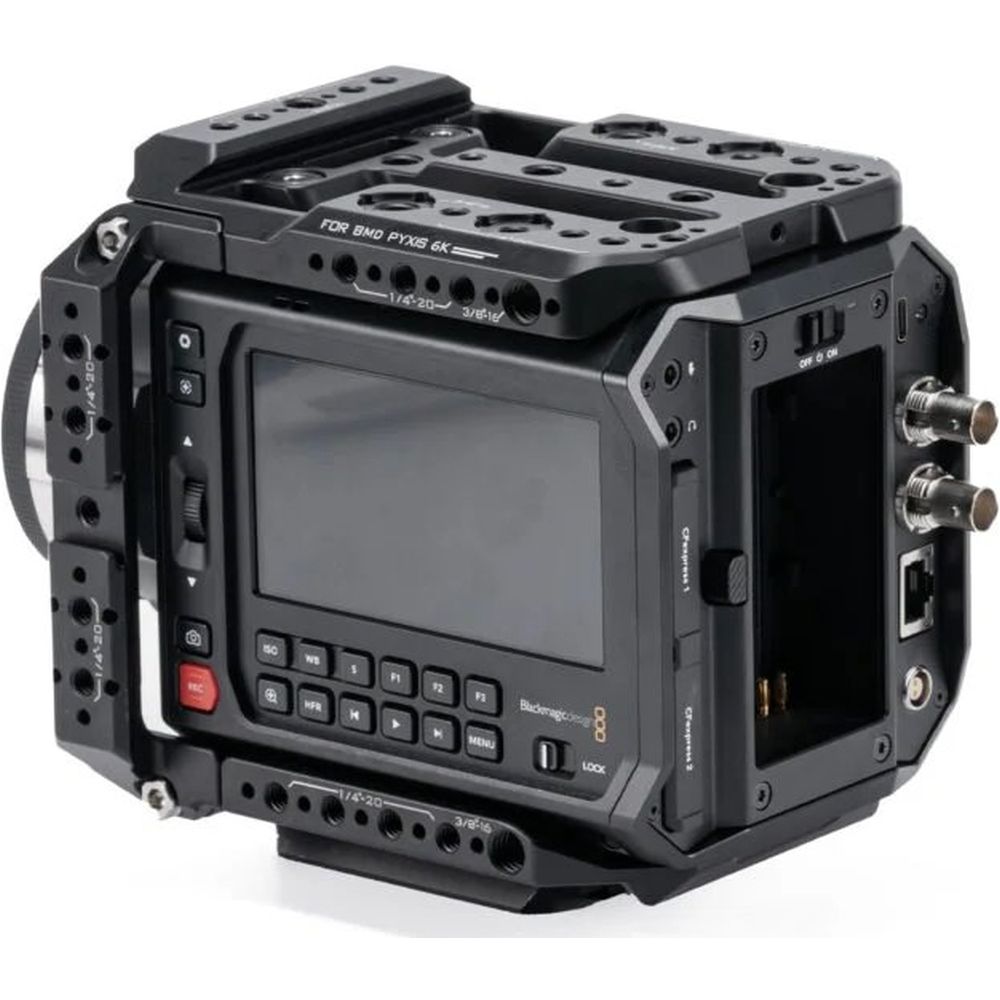

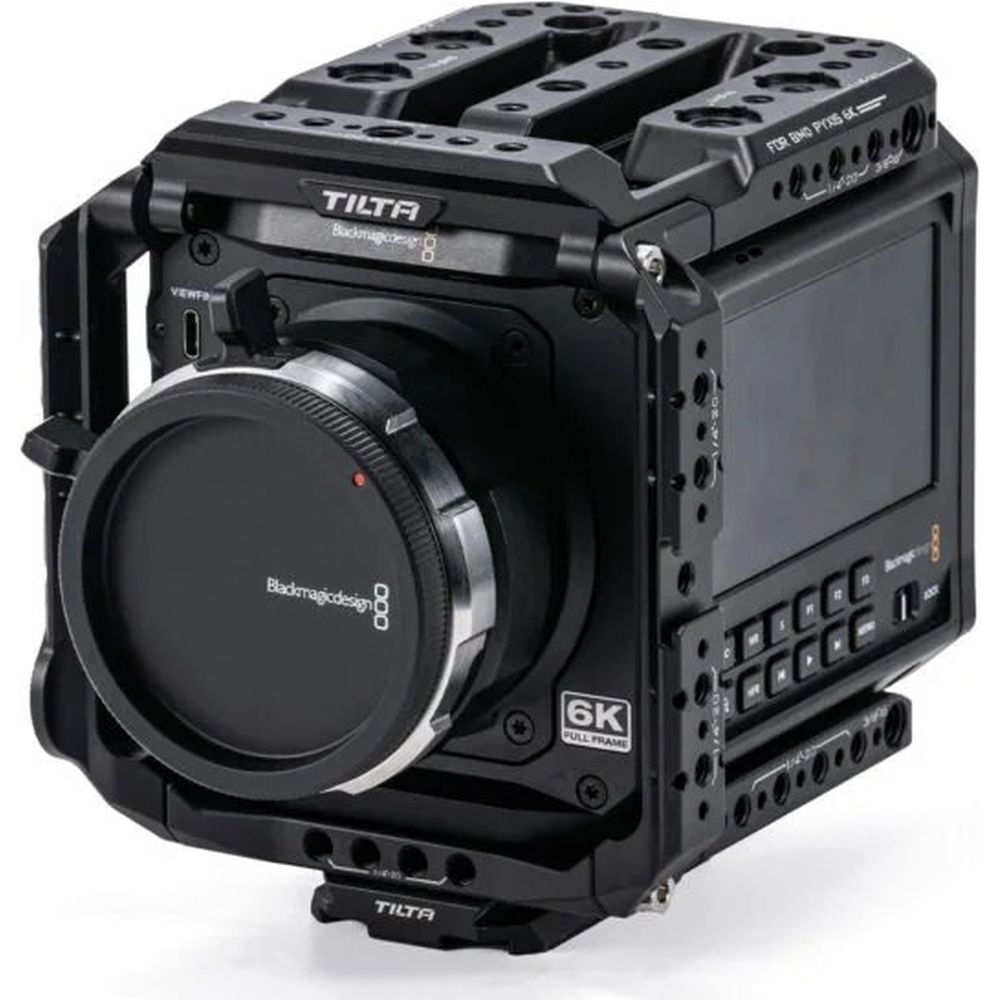

Tilta ES-T21-FCC Full Camera Cage for Blackmagic PYXIS 6K

Tilta ES-T21-FCC Full Camera Cage for Blackmagic PYXIS 6K

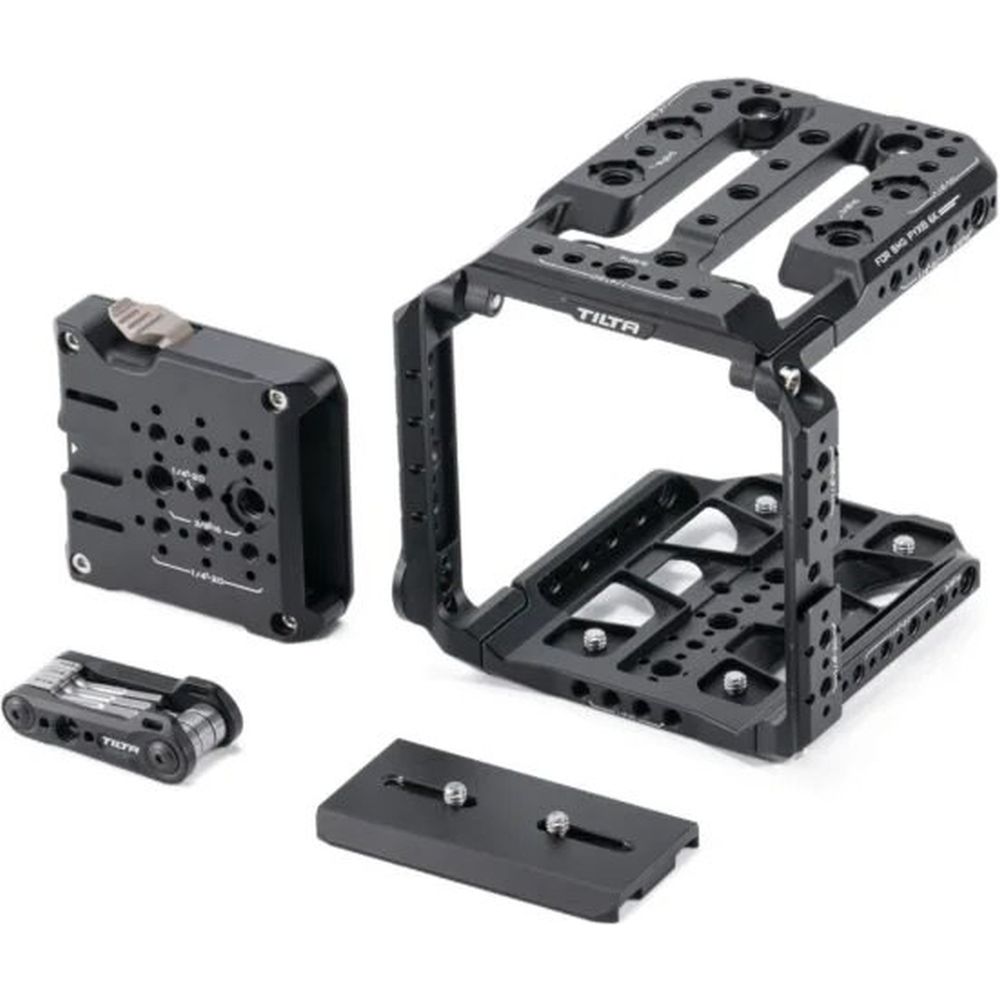

The five key components of the Full Cage are the top plate, bottom plate, side plate, left side arm, and right side arm, all designed to perfectly complement the aesthetics of the camera. The top, bottom, and side plates can also be used individually to accommodate different camera form factors.

The side plate enables quick transitions between horizontal and vertical configurations, as it can serve as a bottom plate when the camera is mounted vertically, providing sufficient clearance between the rods and the lens for most accessories. In this vertical configuration, the bottom plate features specially positioned threads to align the base plate with the optical centre of the lens.

This side plate also supports external recording via the integrated SSD holder and features multiple 1/4"-20 threaded connections for various accessories, including smartphone holders for livestreaming setups. The SSD holder accommodates hard drives with a width of 52 mm to 60 mm and a thickness of less than 12 mm.

Both the top and bottom plates are designed to avoid contact with the camera body's ventilation openings, ensuring the camera's cooling performance is not affected.

The top plate is compatible with the original PYXIS handle and features a removable 3/8" to 1/4" thread adapter, allowing users to choose from a variety of handles to best suit different setups.
